Best ASTM F67 Titanium Plate Grades: Which Should You Choose?
When your medical device project demands biocompatible titanium that meets strict regulatory standards, choosing the wrong ASTM F67 Titanium Plate grade could compromise patient safety and product approval. The ASTM F67 standard defines four distinct grades of unalloyed titanium specifically engineered for surgical implant applications, each offering unique mechanical properties and performance characteristics. Understanding which grade aligns with your specific application requirements is essential for ensuring optimal implant performance, regulatory compliance, and long-term patient outcomes in demanding medical environments.
Understanding ASTM F67 Titanium Plate Grades and Their Applications

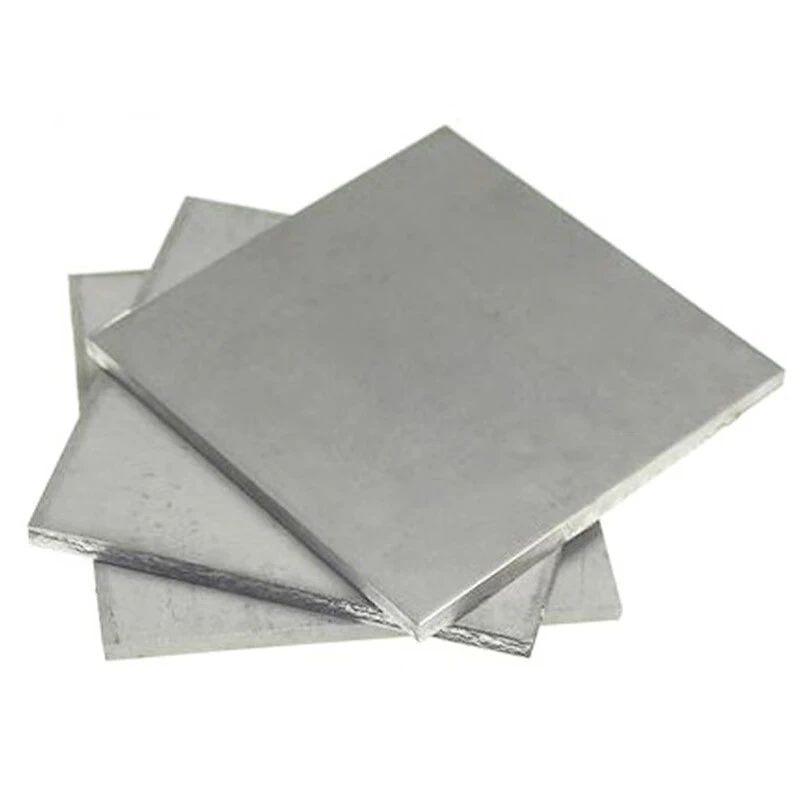

The ASTM F67 standard establishes comprehensive requirements for unalloyed titanium materials used in surgical implant manufacturing. This specification covers four commercially pure titanium grades, each designated by specific Unified Numbering System codes that reflect their chemical composition and mechanical properties. Grade 1 titanium, identified as UNS R50250, represents the softest and most formable option with the lowest oxygen content, making it ideal for applications requiring extensive cold working or complex forming operations. This grade exhibits exceptional ductility with elongation values typically reaching twenty-four percent, which proves invaluable when manufacturing intricate implant geometries or components that must undergo significant plastic deformation during fabrication. Grade 2 ASTM F67 Titanium Plate, designated as UNS R50400, stands as the most widely specified grade across medical device industries due to its excellent balance of strength, formability, and cost-effectiveness. This grade demonstrates tensile strength ranging from 345 to 485 MPa while maintaining sufficient ductility for most surgical implant applications. Medical device manufacturers frequently select Grade 2 for dental implants, craniomaxillofacial reconstruction plates, and pacemaker housing components where moderate strength requirements must be met without sacrificing biocompatibility. The material's superior corrosion resistance in physiological environments ensures long-term stability when exposed to bodily fluids, while its relatively lower cost compared to titanium alloys makes it an economically viable choice for high-volume production.
Grade 3 titanium under ASTM F67 specifications offers intermediate strength characteristics between Grade 2 and Grade 4, providing tensile strength values between 450 and 550 MPa. This grade finds particular application in orthopedic implants requiring greater load-bearing capacity than Grade 2 can provide while still maintaining adequate formability for manufacturing processes. The controlled oxygen content in Grade 3 material enhances strength through solid solution strengthening mechanisms without significantly compromising the material's inherent ductility. Surgical instrument manufacturers often specify Grade 3 ASTM F67 Titanium Plate for reusable devices that must withstand repeated sterilization cycles and mechanical stresses during clinical use. Grade 4 represents the highest strength option within the ASTM F67 specification, designated as UNS R50700, with tensile strength values reaching 550 MPa or higher. This grade achieves its superior mechanical properties through carefully controlled interstitial element content, particularly oxygen, which strengthens the titanium matrix through interstitial solid solution hardening. Applications demanding maximum strength from commercially pure titanium, such as load-bearing spinal implants or high-stress dental abutments, benefit from Grade 4's enhanced performance characteristics. However, the increased strength comes with reduced formability compared to lower grades, requiring specialized manufacturing techniques and careful process control during fabrication operations.
Key Mechanical Property Differences Among ASTM F67 Grades
The mechanical property variations among ASTM F67 Titanium Plate grades directly influence material selection for specific surgical implant applications. Yield strength represents the stress level at which permanent deformation begins, and this critical parameter ranges from approximately 170 MPa in Grade 1 to 485 MPa in Grade 4. Understanding these yield strength differences enables design engineers to properly size components for anticipated service loads while maintaining adequate safety factors. Medical devices subjected to cyclical loading conditions, such as joint replacement components or fracture fixation plates, require careful consideration of fatigue performance in addition to static strength properties. Elongation values provide crucial insight into material ductility and forming characteristics. Grade 1 ASTM F67 Titanium Plate exhibits the highest elongation at approximately twenty-four percent, gradually decreasing to fifteen percent in Grade 4 as strength increases. This inverse relationship between strength and ductility represents a fundamental materials science trade-off that manufacturers must navigate when selecting appropriate grades. Deep drawing operations, complex bending sequences, or severe forming processes typically necessitate specifying lower grades with superior ductility, even if this means accepting reduced strength in the final component.
Cold working capabilities vary significantly across the four grades, with lower grades offering substantially better formability for room-temperature manufacturing operations. Grade 1 and Grade 2 materials can undergo extensive cold rolling, stamping, or hydroforming processes without intermediate annealing steps, reducing manufacturing costs and production time. Conversely, Grade 3 and Grade 4 ASTM F67 Titanium Plate may require hot working or multiple annealing cycles when complex geometries are needed, adding processing steps and associated expenses. Manufacturers must balance these processing considerations against the mechanical property requirements of the finished implant to optimize both performance and production efficiency.
Selecting the Right ASTM F67 Titanium Plate Grade for Your Application
Application-specific requirements dictate which ASTM F67 Titanium Plate grade will deliver optimal performance in surgical implant environments. Dental implant manufacturers typically favor Grade 4 material for implant body components due to its superior strength enabling smaller diameter designs while maintaining adequate mechanical integrity. The higher strength allows for reduced implant dimensions, which proves particularly valuable in cases with limited available bone volume. Additionally, Grade 4's enhanced mechanical properties support immediate loading protocols where implants must bear masticatory forces shortly after surgical placement, before complete osseointegration occurs. Craniomaxillofacial reconstruction applications often specify Grade 2 ASTM F67 Titanium Plate because these devices require extensive contouring and forming to match patient-specific anatomy. Surgeons routinely bend and shape titanium plates intraoperatively to achieve precise fit against complex cranial or facial bone surfaces. The superior formability of Grade 2 material accommodates this chairside modification without risk of fracture or excessive springback, ensuring proper implant positioning and optimal healing outcomes. Furthermore, the thin profile requirements typical of cranial plates make Grade 2's excellent ductility essential for preventing stress concentration failures during surgical manipulation.
Orthopedic trauma fixation devices spanning fracture plates to intramedullary nails frequently utilize Grade 2 or Grade 3 ASTM F67 Titanium Plate depending on specific load requirements. Simple fracture patterns in low-stress anatomical locations may perform adequately with Grade 2 material, offering cost savings without compromising clinical outcomes. However, complex fractures in weight-bearing bones or high-stress applications such as proximal femur fractures often mandate Grade 3 or even Grade 4 specifications to ensure sufficient mechanical support during the critical healing period. Finite element analysis and mechanical testing programs help manufacturers validate that selected grades will withstand physiological loading conditions throughout the expected device service life.
Biocompatibility and Corrosion Resistance Considerations
All four grades of ASTM F67 Titanium Plate demonstrate exceptional biocompatibility due to the stable, protective oxide layer that forms spontaneously on titanium surfaces when exposed to oxygen. This titanium dioxide film, typically measuring only a few nanometers thick, effectively isolates the underlying metal from surrounding biological tissues and prevents ion release that could trigger adverse tissue responses. The unalloyed nature of commercially pure titanium specified in ASTM F67 eliminates concerns about potentially sensitizing alloying elements such as nickel or cobalt, which can provoke allergic reactions in susceptible patients. Clinical studies spanning decades have documented excellent long-term tissue compatibility for ASTM F67 materials across diverse implant applications. Corrosion resistance in physiological environments represents another critical performance attribute shared across all ASTM F67 grades. The passive oxide layer provides outstanding protection against corrosion mechanisms including pitting, crevice corrosion, and stress corrosion cracking in chloride-containing body fluids. This superior corrosion performance ensures implant integrity throughout extended service periods, with properly manufactured devices exhibiting essentially unlimited corrosion fatigue life in human tissue environments. The unalloyed titanium composition specified in ASTM F67 delivers corrosion resistance superior to many titanium alloys, making these grades particularly suitable for applications requiring guaranteed long-term chemical stability.
Surface finish characteristics influence both biocompatibility and osseointegration performance for ASTM F67 Titanium Plate implants. Mill finish surfaces provide adequate performance for many applications, while additional treatments such as acid pickling, electropolishing, or sand blasting can enhance specific surface properties. Rough or textured surfaces created through machining, grit blasting, or plasma spraying promote bone ingrowth and accelerate osseointegration for load-bearing orthopedic implants. Conversely, highly polished surfaces reduce bacterial adhesion and minimize soft tissue irritation for subcutaneous devices or temporary implants. Manufacturers must specify appropriate surface treatments in conjunction with grade selection to optimize overall implant performance for intended clinical applications.
Manufacturing and Quality Control for ASTM F67 Titanium Plate
Advanced manufacturing equipment ensures ASTM F67 Titanium Plate products meet stringent dimensional tolerances and mechanical property requirements specified in the standard. Cold rolling processes produce sheet and plate products with thickness ranging from 0.5 millimeters to 50 millimeters, utilizing powerful rolling mills capable of applying controlled reduction passes while maintaining uniform material properties throughout the cross-section. Modern rolling equipment incorporates automated thickness control systems and sophisticated process monitoring to ensure consistent product quality across entire production runs. Multiple intermediate annealing cycles between rolling passes restore ductility and eliminate residual stresses that could compromise subsequent forming operations or final component performance. Vacuum melting technology plays a crucial role in producing high-purity titanium ingots that serve as starting material for ASTM F67 plate manufacturing. Vacuum arc remelting processes eliminate gaseous impurities and ensure homogeneous chemical composition throughout large ingot cross-sections. This controlled melting approach prevents contamination from atmospheric gases while enabling precise chemistry control to meet the tight compositional tolerances specified for each grade. The resulting ingots undergo comprehensive chemical analysis using inductively coupled plasma spectroscopy or X-ray fluorescence techniques to verify compliance with specified maximum levels for oxygen, nitrogen, carbon, hydrogen, iron, and other trace elements before proceeding to downstream processing.
Forging operations transform cast ingots into wrought forms suitable for subsequent rolling or direct machining into finished components. Hydraulic presses generating thousands of tons of force work titanium at elevated temperatures typically between 800 and 950 degrees Celsius, where the material exhibits optimal ductility and reduced flow stress. Controlled forging sequences gradually reduce ingot cross-sections while eliminating cast microstructures and developing refined grain structures that optimize mechanical properties in finished products. Press capacities ranging from 2500 tons to 50 meganewtons enable processing of ingots weighing several tons, ensuring efficient production of ASTM F67 Titanium Plate materials in dimensions suitable for diverse medical device applications.
Comprehensive Testing and Certification Requirements
Rigorous quality control testing validates that manufactured ASTM F67 Titanium Plate meets all specification requirements before shipment to medical device manufacturers. Tensile testing performed according to standardized procedures measures ultimate tensile strength, yield strength, and elongation values for comparison against specified minimum requirements. Testing laboratories utilize servo-hydraulic or electromechanical testing machines capable of precise load application and strain measurement throughout the elastic and plastic deformation regions. Multiple specimens extracted from different locations within each production lot ensure representative sampling and verify property uniformity across the entire plate cross-section and along the rolling direction. Chemical composition analysis employs sophisticated analytical techniques to verify that interstitial element and metallic impurity levels remain within specified maximum limits for each grade. Optical emission spectroscopy provides rapid screening for metallic elements, while combustion analysis techniques accurately quantify oxygen, nitrogen, carbon, and hydrogen content with precision below 10 parts per million. These chemical analyses confirm proper grade designation and ensure material traceability throughout the supply chain. Complete material certifications documenting test results and compliance statements accompany each shipment, providing medical device manufacturers with the documentation required for regulatory submissions and quality management system records.
Metallographic examination reveals microstructural features and verifies appropriate grain size, phase distribution, and freedom from unacceptable defects such as inclusions or porosity. Trained metallographers prepare polished and etched specimens for optical microscopy evaluation, documenting microstructural characteristics and comparing observations against acceptance criteria established in manufacturing specifications. Advanced techniques including scanning electron microscopy and energy dispersive spectroscopy provide additional insight into inclusion composition, surface oxide characteristics, and localized chemical variations when required for failure analysis or process development activities. This comprehensive metallurgical characterization ensures ASTM F67 Titanium Plate products consistently deliver the microstructural quality necessary for reliable performance in demanding surgical implant applications.
Cost Optimization and Supply Chain Considerations
Strategic sourcing decisions significantly impact total acquisition costs for ASTM F67 Titanium Plate while maintaining required quality standards. Engaging with manufacturers who maintain direct relationships with titanium sponge producers ensures stable raw material supply and minimizes exposure to volatile commodity pricing fluctuations. Vertically integrated suppliers controlling multiple production stages from melting through final product manufacturing often deliver superior cost-performance compared to distributors purchasing from multiple sources. Additionally, partnering with established manufacturers holding relevant certifications including ISO 13485 for medical devices and AS9100 for aerospace quality management provides assurance of consistent process control and documentation practices. Order quantity optimization balances inventory carrying costs against volume pricing advantages and setup charges for custom specifications. Large medical device manufacturers producing high volumes of standardized implants benefit from placing bulk orders that leverage economies of scale in titanium processing. Conversely, smaller manufacturers or those producing diverse product lines with varying material requirements may prefer smaller, more frequent deliveries to minimize working capital tied up in raw material inventory. Flexible suppliers offering reduced minimum order quantities for multiple grades or dimensions enable efficient procurement strategies while maintaining adequate material availability for production scheduling needs.
Lead time management requires careful coordination between material ordering, manufacturing schedules, and customer delivery commitments. Standard dimension ASTM F67 Titanium Plate products with common grade specifications typically ship within several weeks from established supplier inventories. Custom dimensions, non-standard thickness ranges, or special surface finish requirements may extend lead times to accommodate dedicated production runs and additional processing steps. Forward-looking procurement planning that accounts for material lead times, safety stock requirements, and anticipated production volumes prevents costly expediting charges or manufacturing delays due to material shortages. Establishing vendor-managed inventory programs or blanket purchase agreements with scheduled release mechanisms can further streamline material flow while maintaining optimal inventory levels.
International Standards Compliance and Regulatory Acceptance
ASTM F67 Titanium Plate products manufactured to specification requirements gain broad acceptance across international medical device regulatory frameworks. The standard's chemical composition requirements, mechanical property specifications, and quality assurance provisions align closely with corresponding ISO 5832-2 requirements for unalloyed titanium surgical implant materials. This international harmonization facilitates market access for medical devices incorporating ASTM F67 materials, as regulatory authorities in European Union countries, Japan, and other major markets recognize the standard's equivalence to regional specifications. Manufacturers pursuing global market opportunities benefit from specifying materials meeting both ASTM F67 and relevant ISO standards to streamline regulatory submissions and approval processes. FDA premarket submissions for medical devices containing titanium components typically reference ASTM F67 specifications as supporting evidence of material safety and biocompatibility. The standard's long history of clinical use and extensive published literature documenting performance in diverse applications provides regulators with confidence in material suitability for new device designs. Comprehensive material characterization data including chemical composition, mechanical properties, and biocompatibility test results required under ASTM F67 directly supports regulatory documentation requirements under FDA 510(k) premarket notification or premarket approval pathways. Close collaboration between material suppliers and device manufacturers ensures complete documentation packages that expedite regulatory review and approval timelines.
European Medical Device Regulation compliance requires medical device manufacturers to implement comprehensive quality management systems and demonstrate material traceability throughout the supply chain. ASTM F67 Titanium Plate suppliers holding ISO 13485 certification provide medical device manufacturers with qualified material sources that integrate seamlessly into regulatory compliance frameworks. Material certificates documenting compliance with specification requirements, including batch traceability information and comprehensive test results, form essential components of technical documentation files supporting CE marking applications. Rigorous supplier qualification and ongoing monitoring programs verify continued compliance with material specifications and quality system requirements throughout the commercial relationship.
Conclusion
Selecting the optimal ASTM F67 Titanium Plate grade requires careful evaluation of mechanical property requirements, forming characteristics, and application-specific performance criteria to ensure successful medical device development and regulatory compliance.
Cooperate with XI'AN MICRO-A Titanium Metals Co.,Ltd.
XI'AN MICRO-A Titanium Metals Co., Ltd., established in 2017 and headquartered in Baoji—China's renowned titanium city—stands as your trusted China ASTM F67 Titanium Plate manufacturer, supplier, and factory partner. We offer the best ASTM F67 Titanium Plate products at competitive ASTM F67 Titanium Plate prices for wholesale and direct sale, backed by comprehensive quality certifications including ISO 13485:2017 medical management systems, AS/EN 9100 aerospace quality standards, and ISO 14001 environmental certifications. Our strategic partnership with Baoti Group ensures stable supply chains, while our advanced production facilities featuring 50 MN hammering presses, 2500-ton forging equipment, and precision cold rolling lines guarantee exceptional product quality. As an original factory supplier offering customized solutions from technical drawings to samples, we deliver fast shipments through organized logistics networks by air, sea, or express services. Our comprehensive after-sales support includes technical consultation, complete material traceability documentation, and prompt quality issue resolution. Contact our team today at mayucheng188@aliyun.com to discuss your ASTM F67 Titanium Plate requirements and discover how our expertise in titanium processing can support your medical device manufacturing success.
References
1. ASTM International. Standard Specification for Unalloyed Titanium, for Surgical Implant Applications. ASTM F67-13(2017).
2. Steinemann, S.G. Metal Implants and Surface Reactions. Injury - International Journal of the Care of the Injured, Volume 27, Supplement 3, 1996.
3. Niinomi, M. Mechanical Properties of Biomedical Titanium Alloys. Materials Science and Engineering: A, Volume 243, Issues 1-2, 1998.
4. Long, M. and Rack, H.J. Titanium Alloys in Total Joint Replacement—A Materials Science Perspective. Biomaterials, Volume 19, Issues 18, 1998.
5. Geetha, M., Singh, A.K., Asokamani, R., and Gogia, A.K. Ti Based Biomaterials, the Ultimate Choice for Orthopaedic Implants – A Review. Progress in Materials Science, Volume 54, Issue 3, 2009.
