Best Titanium Pipe Fitting Types for Corrosive Environments
When chemical processing plants face unexpected leaks from corroded pipe connections, the consequences are severe—production halts, environmental hazards emerge, and replacement costs skyrocket. This guide reveals the best Titanium Pipe Fitting solutions designed to withstand the harshest corrosive environments, helping you avoid costly downtime while ensuring system integrity for decades. Understanding which titanium fittings deliver optimal performance in acidic, alkaline, and high-chloride conditions can transform your facility's operational reliability and dramatically reduce long-term maintenance expenses.
Understanding Titanium Pipe Fitting Performance in Corrosive Conditions
Titanium Pipe Fitting components have revolutionized industrial piping systems by providing unmatched resistance to corrosion in environments where traditional materials fail rapidly. Industries operating in highly corrosive settings face constant challenges with equipment degradation, system failures, and expensive replacements. The selection of appropriate titanium pipe fittings becomes critical when dealing with aggressive chemicals, seawater exposure, and extreme temperature variations. These specialized components offer superior durability compared to conventional stainless steel or carbon steel alternatives, making them essential for operations that demand long-term reliability. The molecular structure of titanium creates a protective oxide layer that regenerates instantly when damaged, providing continuous protection against corrosive attack. This self-healing characteristic distinguishes Titanium Pipe Fitting products from other materials, as the oxide layer remains stable across a wide pH range and temperatures. Chemical processing facilities handling sulfuric acid, hydrochloric acid, nitric acid, and other aggressive substances benefit tremendously from titanium's inherent resistance properties. The material maintains structural integrity even when exposed to chloride-rich environments that cause rapid pitting and crevice corrosion in standard materials. Manufacturing operations in marine environments, offshore platforms, and coastal facilities experience accelerated corrosion due to constant saltwater exposure and humid atmospheric conditions. Titanium Pipe Fitting solutions installed in these settings demonstrate exceptional longevity, often outlasting alternative materials by ten to fifteen years or more. The combination of corrosion resistance with high strength-to-weight ratio makes titanium fittings particularly valuable for applications where both durability and weight reduction are priorities. Aerospace hydraulic systems, desalination plants, and petrochemical refineries increasingly specify titanium components for critical applications where failure consequences are unacceptable.
Key Corrosion Mechanisms Addressed by Titanium Fittings
Different corrosive environments create distinct degradation patterns that require specific material properties for effective resistance. Titanium Pipe Fitting components excel against uniform corrosion, where material loss occurs evenly across exposed surfaces, as well as localized attacks including pitting, crevice corrosion, and stress corrosion cracking. Understanding these mechanisms helps engineers select appropriate grades and configurations for their specific applications. The material's immunity to chloride stress corrosion cracking represents a significant advantage in environments where austenitic stainless steels prove inadequate. Electrochemical corrosion in dissimilar metal joints presents challenges in many piping systems, yet titanium's position in the galvanic series minimizes these concerns when properly designed. The passive film that forms on titanium surfaces remains stable in both oxidizing and mildly reducing environments, providing broad-spectrum protection. Chemical processing applications involving organic acids, alkaline solutions, and mixed chemical streams benefit from titanium's versatility across diverse corrosive media. Temperature fluctuations that accelerate corrosion rates in other materials have minimal impact on titanium's protective characteristics, extending service life in thermal cycling applications. Industries dealing with biofouling and microbiologically influenced corrosion find titanium fittings particularly valuable, as the material resists bacterial colonization and associated degradation. The smooth surface finish achievable with Titanium Pipe Fitting products reduces deposit accumulation and simplifies cleaning procedures in sanitary applications. Pharmaceutical manufacturing, food processing, and medical device production leverage these properties to maintain system cleanliness while ensuring material compatibility with sterilization processes. The biocompatible nature of titanium eliminates concerns about metal ion leaching that could contaminate sensitive products or processes.

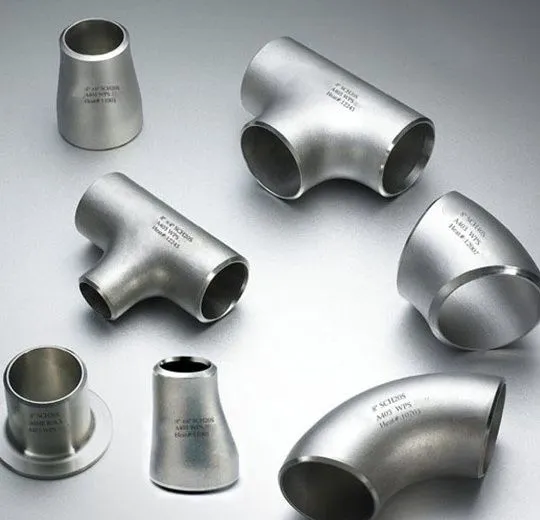

Essential Types of Titanium Pipe Fittings for Industrial Applications
The comprehensive range of Titanium Pipe Fitting types available enables engineers to design complete piping systems optimized for corrosive service. Each fitting type serves specific functions within the system architecture, from directional changes to diameter transitions and branch connections. Selecting appropriate fitting configurations requires careful consideration of flow characteristics, pressure requirements, and installation constraints. Modern manufacturing techniques produce titanium fittings in various forms including butt-weld, socket-weld, threaded, and flanged connections, each offering distinct advantages for particular applications. Butt-weld Titanium Pipe Fitting products represent the most common connection method in high-integrity systems where leak prevention is paramount. These fittings utilize beveled ends that mate with pipe sections, creating full-penetration welds that match or exceed base metal strength. The welding process requires controlled atmospheres and proper shielding gas coverage to prevent contamination and ensure joint quality. Industries operating at elevated pressures and temperatures prefer butt-weld configurations because the smooth interior bore minimizes flow restrictions and eliminates potential leak paths. Chemical plants, power generation facilities, and oil and gas operations specify butt-weld titanium fittings for critical service applications. Socket-weld fittings provide practical solutions for smaller diameter piping systems where alignment and fit-up challenges complicate butt-weld installations. These Titanium Pipe Fitting components feature recessed sockets that accept pipe ends, simplifying assembly while maintaining structural integrity. The design creates natural alignment during welding operations, reducing installation time and skill requirements compared to butt-weld alternatives. Instrumentation tubing, sampling systems, and auxiliary process lines commonly employ socket-weld titanium fittings where system complexity demands numerous connections in confined spaces. The gap left between pipe end and socket bottom accommodates thermal expansion while preventing stress concentration during service.
Elbow Fittings for Directional Changes
Titanium elbow fittings enable piping systems to navigate around obstacles and change flow direction while maintaining system pressure integrity. Available in various angles including forty-five degrees, ninety degrees, and one-hundred-eighty degrees, these fittings accommodate diverse layout requirements. The Titanium Pipe Fitting elbows come in both long radius and short radius configurations, with long radius versions providing gentler flow transitions that reduce pressure drop and erosion potential. Chemical processing applications handling abrasive slurries or high-velocity fluids typically specify long radius elbows to minimize turbulence and extend component life. Manufacturing processes for titanium elbows include hot forming, cold forming, and machining from solid bar stock, each method producing specific characteristics suited to different service conditions. Seamless elbows manufactured through hot forming exhibit uniform wall thickness and consistent mechanical properties throughout the component. Cold-formed elbows achieve tighter dimensional tolerances and superior surface finishes compared to hot-formed alternatives, making them preferred for sanitary and high-purity applications. The selection between forming methods depends on size requirements, quantity needs, and specific performance criteria established by system designers. Installation considerations for Titanium Pipe Fitting elbows include proper alignment, welding procedures, and support spacing to prevent excessive stress concentrations. The lower elastic modulus of titanium compared to steel requires adjusted support spacing calculations to prevent excessive deflection under operating loads. Thermal expansion characteristics of titanium, while favorable compared to many materials, still require accommodation through proper system design and expansion loop placement. Offshore platforms, subsea pipeline systems, and marine vessels utilize titanium elbows extensively where seawater corrosion resistance combines with weight savings to improve overall system performance.
Tee Fittings for Branch Connections
Tee fittings create branch connections in piping systems, allowing flow division or combination depending on system requirements. Titanium Pipe Fitting tees are manufactured in equal and reducing configurations, with reducing tees featuring different diameter outlets to accommodate varying branch line sizes. The straight-through flow path in equal tees minimizes pressure drop compared to branch takeoffs, making them suitable for main distribution headers where flow capacity is critical. Reducing tees integrate diameter transitions directly into the branch connection, eliminating additional reducer fittings and associated potential leak points. Chemical distribution systems serving multiple process units rely heavily on titanium tee fittings to route corrosive media safely and efficiently. The material's resistance to erosion-corrosion proves valuable in tee fittings where flow turbulence intensifies at the branch intersection. Proper orientation of tees relative to flow direction can significantly impact component longevity in high-velocity applications handling abrasive or corrosive fluids. Engineering standards provide guidance on velocity limits, impingement angles, and reinforcement requirements for branch connections subjected to cyclic loading or thermal transients. Manufacturing standards for Titanium Pipe Fitting tees specify dimensional tolerances, wall thickness requirements, and reinforcement calculations to ensure structural adequacy under design conditions. Welded tees fabricated from plate or pipe sections offer economical solutions for larger sizes where forged fittings become prohibitively expensive. Forged tees provide superior grain flow and mechanical properties compared to welded alternatives, making them preferred for critical high-pressure applications. Nuclear power plants, pharmaceutical manufacturing facilities, and semiconductor production operations utilize forged titanium tees where material traceability and quality assurance documentation are mandatory requirements.
Reducer Fittings for Diameter Transitions
Reducer fittings facilitate transitions between different pipe diameters while maintaining system pressure containment and flow efficiency. Titanium Pipe Fitting reducers are available in concentric and eccentric configurations, each serving specific installation and operational requirements. Concentric reducers maintain centerline alignment between pipe sections, creating symmetrical flow transitions suitable for vertical piping and applications where uniform velocity distribution is desired. Eccentric reducers offset the centerlines to maintain top-of-pipe or bottom-of-pipe alignment, preventing liquid accumulation or gas pocketing in horizontal runs. The gradual taper in reducer fittings minimizes turbulence and pressure loss compared to abrupt diameter changes, improving overall system efficiency. Proper reducer selection requires consideration of flow direction, phase characteristics, and potential for solid settlement or gas accumulation. Titanium Pipe Fitting eccentric reducers installed with the flat side up prevent liquid trapping in gas service applications, while flat side down orientation prevents gas pocketing in liquid systems. These design considerations become critical in process industries where phase separation, drainage requirements, or venting needs influence piping layout decisions. Manufacturing tolerances for titanium reducers ensure smooth interior transitions that minimize erosion and pressure drop across the diameter change. Cold-formed reducers achieve excellent concentricity and surface finish compared to machined alternatives, reducing friction losses and improving cleanability. Applications in food processing, biotechnology, and pharmaceutical manufacturing benefit from the smooth surfaces and crevice-free designs achievable with formed titanium reducers. The material's compatibility with high-purity processes and aggressive cleaning agents makes it indispensable for industries maintaining strict contamination control standards.
Cap Fittings for Line Termination
Cap fittings provide permanent or temporary closure for pipe ends in piping systems, serving applications ranging from maintenance access points to dead-leg terminations. Titanium Pipe Fitting caps are manufactured in various forms including butt-weld caps, threaded caps, and flanged blind closures, each offering specific advantages for particular service conditions. Butt-weld caps create permanent, high-integrity closures suitable for critical applications where leak prevention outweighs accessibility requirements. Threaded caps enable periodic access for inspection, cleaning, or future expansion, making them valuable for systems requiring operational flexibility. The hemispherical shape of formed caps distributes pressure loads efficiently, allowing thinner wall sections compared to flat closures while maintaining structural integrity. This weight reduction becomes significant in large-diameter applications where material costs represent substantial project expenses. Titanium Pipe Fitting caps installed on chemical storage tank nozzles, reactor vessel connections, and heat exchanger tubes provide reliable service in highly corrosive environments where alternative materials experience rapid degradation. The material's resistance to pitting and crevice corrosion proves particularly valuable in dead-leg applications where stagnant fluids create localized aggressive conditions. Installation practices for titanium caps require attention to weld preparation, fit-up tolerances, and post-weld treatment to ensure joint quality. The thermal conductivity of titanium affects heat input requirements and cooling rates during welding operations, influencing weld microstructure and mechanical properties. Proper backing gas coverage prevents oxidation and contamination during welding, maintaining the corrosion resistance that makes titanium valuable for demanding applications. Quality assurance procedures including visual inspection, dimensional verification, and non-destructive testing confirm cap integrity before system commissioning.
Grade Selection for Optimal Corrosion Resistance
Titanium alloys are designated by grades that indicate chemical composition and resulting performance characteristics, with each grade offering specific advantages for corrosive service applications. The selection of appropriate Titanium Pipe Fitting grades requires thorough understanding of service conditions including chemical composition, concentration, temperature, and velocity. Commercially pure titanium grades dominate pipe fitting applications due to their excellent corrosion resistance and cost-effectiveness compared to alloyed grades. However, certain aggressive environments and elevated temperature applications benefit from titanium alloys that provide enhanced properties through alloying additions. Grade two titanium represents the most widely specified material for industrial Titanium Pipe Fitting applications, offering an optimal balance of strength, ductility, corrosion resistance, and weldability. This unalloyed grade demonstrates exceptional resistance to oxidizing acids, chloride solutions, and seawater, making it suitable for diverse chemical processing and marine applications. The moderate strength level of grade two titanium accommodates typical industrial pressure requirements while maintaining excellent formability for manufacturing complex fitting geometries. Desalination plants, chemical refineries, and offshore production platforms utilize grade two fittings extensively where proven performance and material availability are important considerations.
Grade five titanium alloy, also known as Ti-6Al-4V, contains six percent aluminum and four percent vanadium additions that significantly increase strength compared to commercially pure grades. This Titanium Pipe Fitting alloy finds application in aerospace hydraulic systems, high-pressure chemical processing, and other demanding services requiring superior strength-to-weight ratios. The alloying elements reduce corrosion resistance slightly compared to unalloyed titanium, particularly in reducing acid environments, necessitating careful evaluation of chemical compatibility. However, grade five's mechanical properties enable thinner wall sections and weight reduction in applications where these characteristics provide system advantages.
Enhanced Corrosion Resistance Through Alloying
Palladium and ruthenium additions to commercially pure titanium significantly enhance corrosion resistance in reducing acid environments where unalloyed grades show limitations. Grade seven titanium contains 0.12 to 0.25 percent palladium, providing exceptional resistance to sulfuric acid, hydrochloric acid, and other reducing media. Chemical plants processing mineral acids specify Titanium Pipe Fitting components in grade seven where aggressive conditions exceed the capabilities of grade two material. The cost premium for palladium-enhanced grades is justified by extended service life and reduced maintenance requirements in these severe applications. Grade sixteen titanium represents an economical alternative to grade seven, utilizing small palladium additions (0.04 to 0.08 percent) to achieve improved corrosion resistance at lower material cost. This grade provides intermediate performance between unalloyed grade two and fully stabilized grade seven, suitable for moderately aggressive reducing environments. Industrial applications balancing corrosion resistance requirements with budget constraints often select grade sixteen titanium as an optimal compromise. The material demonstrates particular value in mixed acid services and chloride-containing reducing environments where grade two experiences accelerated attack. Ruthenium-enhanced titanium grades twenty-six and twenty-seven offer similar corrosion resistance improvements to palladium grades while providing greater resistance to crevice corrosion in certain applications. These Titanium Pipe Fitting grades maintain excellent ductility and formability comparable to grade two while delivering enhanced performance in aggressive environments. The selection between palladium and ruthenium-enhanced grades depends on specific service conditions, availability, and cost considerations. Subsea production equipment, geothermal power systems, and advanced chemical processing operations increasingly specify ruthenium grades where their unique properties provide operational advantages.
XI'AN MICRO-A Manufacturing Capabilities and Quality Assurance
Manufacturing excellence in Titanium Pipe Fitting production requires sophisticated equipment, rigorous process controls, and comprehensive quality verification systems. XI'AN MICRO-A Titanium Metals Co., Ltd. operates state-of-the-art production facilities in Baoji, China's titanium capital, where abundant raw material resources and specialized manufacturing infrastructure support high-volume fitting production. The company's investment in advanced forging presses, precision machining centers, and testing equipment enables production of fittings meeting the most stringent international standards including ASTM B363 and ASME SB363 specifications. The manufacturing process begins with careful raw material selection and verification, ensuring titanium ingots meet specified chemistry and mechanical property requirements. Melting operations utilize vacuum arc remelting technology to achieve exceptional material purity and homogeneity throughout the ingot structure. Forging operations employ hydraulic presses up to 2500 tons capacity, creating fitting blanks with optimized grain flow and mechanical properties. The hot forging process refines the microstructure while developing the shape complexity required for various Titanium Pipe Fitting configurations including elbows, tees, and reducers. Heat treatment processes following forging operations relieve residual stresses and optimize mechanical properties for service conditions. Stress-relief annealing at controlled temperatures ensures dimensional stability and uniform metallurgical characteristics throughout the fitting. Machining operations utilizing multi-axis CNC equipment achieve precise dimensions and surface finishes specified by engineering standards and customer requirements. The combination of advanced equipment and skilled operators enables XI'AN MICRO-A to manufacture Titanium Pipe Fitting products ranging from small diameter instrumentation fittings to large diameter process piping components with consistent quality and competitive lead times.
Comprehensive Quality Control Procedures
Quality assurance at XI'AN MICRO-A encompasses raw material verification, in-process monitoring, and final product testing to ensure every Titanium Pipe Fitting meets or exceeds specified requirements. Chemical composition analysis utilizing optical emission spectroscopy confirms material grade compliance before production begins. Mechanical property testing including tensile strength, yield strength, elongation, and hardness verification ensures material characteristics satisfy applicable standards. Non-destructive examination techniques including ultrasonic testing, liquid penetrant inspection, and radiographic examination detect potential defects that could compromise fitting integrity. Dimensional inspection procedures verify that finished fittings conform to drawing specifications and tolerance requirements. Coordinate measuring machines provide precise dimensional data for critical features including wall thickness, fitting angles, and connection dimensions. Surface finish measurements ensure that wetted surfaces meet specified roughness requirements for the intended application. The comprehensive inspection documentation generated for each production lot provides material traceability and quality verification required by customers in regulated industries including aerospace, pharmaceuticals, and nuclear power. Certification packages prepared for Titanium Pipe Fitting shipments include material test reports, dimensional inspection records, non-destructive examination results, and compliance statements confirming adherence to applicable codes and standards. The company maintains certifications including ISO 9001 quality management, AS9100 aerospace quality, ISO 13485 medical device quality, and ISO 14001 environmental management systems. These certifications demonstrate organizational commitment to quality excellence and continuous improvement. Customer audits and third-party assessments regularly verify that manufacturing processes and quality systems operate effectively to deliver consistent product quality.
Customization Capabilities and Technical Support
Engineering support services at XI'AN MICRO-A assist customers in selecting optimal Titanium Pipe Fitting solutions for their specific applications. The technical team reviews service conditions, evaluates material compatibility, and recommends appropriate grades and configurations to ensure successful long-term performance. Custom fitting designs accommodating unique dimensional requirements, special connection types, or proprietary geometries can be manufactured utilizing the company's flexible production capabilities. Drawing review services verify that customer specifications are achievable and identify potential manufacturing concerns before production begins. Sample production enables customers to evaluate fit, finish, and performance characteristics before committing to full-scale orders. The company's rapid prototyping capabilities support accelerated project timelines by delivering evaluation samples quickly. Test fittings can be subjected to customer-specified qualification procedures including pressure testing, corrosion exposure, or dimensional verification to confirm suitability for the intended application. This collaborative approach to Titanium Pipe Fitting development ensures that final products meet all technical requirements while optimizing cost and manufacturability. Low thermal expansion characteristics of titanium require special consideration in piping system design to accommodate thermal growth without inducing excessive stresses. Engineering support from XI'AN MICRO-A includes guidance on expansion loop design, support spacing, and stress analysis to ensure system integrity throughout the operating temperature range. The company's experience across diverse industries provides valuable insights into application-specific challenges and proven solutions that enhance system reliability and performance.
Application Guidelines for Corrosive Environment Service
Successful implementation of Titanium Pipe Fitting systems in corrosive environments requires careful attention to design details, installation practices, and maintenance procedures. System design must account for the unique characteristics of titanium including lower elastic modulus, different thermal expansion coefficient, and specific welding requirements compared to traditional piping materials. Proper engineering analysis ensures that pipe supports, expansion provisions, and stress calculations accommodate titanium's properties to achieve desired system performance and longevity. Material compatibility considerations extend beyond the titanium fittings themselves to include gaskets, bolting, valve components, and other system elements that contact process fluids. Galvanic corrosion potential exists when titanium connects to dissimilar metals, requiring isolation strategies or acceptable material combinations verified through experience or testing. Elastomeric gasket materials must withstand both the process environment and any temperature excursions without degrading or contaminating the system. The selection of appropriate gasket materials and proper installation torque prevents leak development while avoiding excessive stress concentration at flanged connections. Welding procedures for Titanium Pipe Fitting installations require trained personnel, appropriate equipment, and strict process controls to achieve high-quality joints. The reactive nature of titanium at elevated temperatures necessitates comprehensive shielding gas coverage on both weld face and backside to prevent atmospheric contamination. Proper purge gas flow rates, gas composition purity, and shielding cup coverage ensure that welds develop the corrosion resistance and mechanical properties expected from titanium systems. Post-weld cleaning procedures remove any surface discoloration and restore the passive oxide layer that provides corrosion protection.
Installation Best Practices
Pre-installation preparation includes thorough cleaning of fitting and pipe surfaces to remove any contamination that could compromise weld quality or corrosion resistance. Wire brushing with dedicated stainless steel tools removes scale and oxidation without introducing iron contamination that could initiate corrosion. Solvent cleaning with approved chemicals eliminates oils, greases, and other organic contaminants before assembly begins. The use of dedicated tools and equipment for titanium work prevents cross-contamination from other materials processed in the same fabrication facility. Fit-up tolerances for butt-weld Titanium Pipe Fitting joints must fall within specified limits to ensure proper weld penetration and minimize excessive reinforcement. Gap dimensions, alignment offsets, and tack weld locations follow established welding procedure specifications developed through qualification testing. Back purging systems maintain inert atmosphere protection inside the pipe during welding operations, preventing oxidation that would reduce corrosion resistance. Flow rates and purge duration must achieve adequate oxygen removal before welding commences, with monitoring equipment confirming acceptable atmosphere purity. Post-weld heat treatment is generally not required for Titanium Pipe Fitting installations, as the material does not develop detrimental microstructures or residual stresses requiring thermal treatment. However, certain code requirements or customer specifications may mandate stress relief annealing for critical applications. When performed, heat treatment must occur in controlled atmosphere furnaces to prevent surface oxidation and maintain material properties. The lightweight nature of titanium systems simplifies handling during heat treatment compared to heavier materials, reducing equipment requirements and processing costs.
Conclusion
Titanium Pipe Fitting solutions deliver unmatched performance in corrosive environments through superior material properties and engineering excellence. Selecting appropriate fitting types, grades, and manufacturers ensures long-term reliability and operational cost reduction.
Cooperate with XI'AN MICRO-A Titanium Metals Co.,Ltd.
XI'AN MICRO-A Titanium Metals Co., Ltd., founded in 2017 and headquartered in Baoji, China's titanium city, offers comprehensive titanium product solutions including pipe fittings, plates, tubes, rods, and specialized alloys. The company maintains strategic partnerships with leading domestic enterprises including Baoti Group, ensuring reliable raw material supply and advanced manufacturing capabilities. With certifications including ISO 9001, AS9100 aerospace quality management, ISO 13485 medical systems, and ISO 14001 environmental management, XI'AN MICRO-A demonstrates commitment to quality excellence and regulatory compliance.
Our advanced manufacturing facilities include 50 MN forging presses, 2500-ton hydraulic equipment, precision CNC machining centers, and comprehensive testing laboratories. These capabilities enable production of custom Titanium Pipe Fitting solutions tailored to your specific requirements, whether standard configurations or unique designs. We support drawing-based customization, provide product samples for evaluation, and maintain competitive pricing as an original factory supplier. Fast delivery through organized logistics networks ensures your project timelines remain on track regardless of shipping method preferences.
As a leading China Titanium Pipe Fitting factory, China Titanium Pipe Fitting supplier, and China Titanium Pipe Fitting manufacturer offering China Titanium Pipe Fitting wholesale, we provide best Titanium Pipe Fitting solutions at competitive Titanium Pipe Fitting price points with extensive Titanium Pipe Fitting for sale inventory. Contact us at mayucheng188@aliyun.com to discuss your requirements and discover how our expertise delivers superior value for your corrosive environment applications.
References
1. Boyer, R., Welsch, G., & Collings, E.W. Materials Properties Handbook: Titanium Alloys. ASM International.
2. Schutz, R.W. & Thomas, D.E. Corrosion of Titanium and Titanium Alloys. ASM Handbook Volume 13B: Corrosion Materials.
3. Donachie, M.J. Titanium: A Technical Guide. ASM International.
