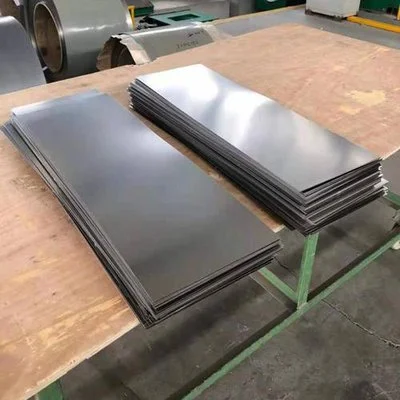

How Thick Can a Pure Titanium Sheet Be?
The thickness of commercially pure titanium sheet is usually between 0.5 mm and 50 mm, but most suppliers offer a normal range between 0.5 mm and 25 mm to make sure that all of their products are made the same way. We at MICRO-A use modern casting and rolling methods to make sheets that are up to 50 mm thick and meet ASTM B265 standards for Grades 1-4. The thickest that can be made relies on the grade chosen, the making skills, and the equipment's capacity. To keep the mechanical qualities and dimensions of thicker sheets, they need to be heated and pressed in special hydraulic presses. When purchasing managers know these width factors, they can make sure that the material standards meet the needs of the product and the budget.
Understanding Pure Titanium Sheets and Their Thickness Range
Defining Pure Titanium and Its Grade System
Commercially pure titanium is very different from titanium alloys because it is made up of over 99% titanium and managed intermediate elements. Based on the amount of oxygen and iron in the material, ASTM B265 sets four main types that control its strength and flexibility. Grade 1 is the most flexible and has a tensile strength of about 240 MPa, making it perfect for deep drawing. Grade 2 is the workhorse of the business; it has a tensile strength of 345 MPa and is very resistant to rust and can be cold shaped. Grade 3 has an average strength, while Grade 4 has a tensile strength that is close to 550 MPa thanks to its higher oxygen level. Titanium has a mass of 4.51 g/cm³, which is 60% lighter than steel. These types keep titanium's natural benefits, such as its high resistance to weathering through passive oxide film formation and biocompatibility for medical uses. Knowing the differences between grades helps buying teams choose materials that meet the needs of the application without driving up costs too much.
Standard Thickness Specifications and Manufacturing Limits
Titanium sheet width is measured in both metric and imperial units, and the usual range is from 0.5 mm to 25 mm (0.020" to 1.0"). For specific uses that need a lot of material thickness, MICRO-A's advanced production skills allow us to increase this range to 50mm. Practical limits are set by manufacturing processes based on the capabilities of the tools and metal properties. To keep the surface quality of sheets less than 0.5 mm thick and to keep them from breaking, they need special cold rolling tools. On the other hand, sheets that are very thick (above 25 mm) need strong hydraulic presses. Our 2,500-ton press allows for controlled reduction and grain structure polishing. When sections get larger, annealing methods become more important because they have to release leftover stresses to keep the sections from twisting and losing their shape. When procurement workers make choices about where to buy things, they have to take into account how these factory facts affect wait times, minimum order amounts, and cost structures.
How Thickness Influences Mechanical Properties?
In addition to easy size factors pure titanium sheet thickness has a big effect on how well it works. Thinner sheets (0.5mm to 3mm) are easier to shape and bend, which lets medical devices and aircraft parts have complex designs. Higher extension percentages are found in these sizes, which makes deep drawing and hydroforming easier. Thicknesses in the middle (3mm to 12mm) are good for uses that need middling load-bearing capacity and rust protection, like chemical tanks, heat exchanges, and ornamental panels. Heavy-gauge sheets (12mm–50mm) give pressure tanks, offshore platforms, and high-stress aircraft parts the strongest structure possible. Thermal conductivity and heat discharge rates are also affected by thickness, which can change how well something works in hot settings. The corrosion-resistant passive oxide film forms the same way no matter how thick the material is. This means that when surface conditions stay the same, a 1 mm sheet has the same chemical resistance as a 25 mm plate. Because of this feature, designers can choose the best width based only on engineering and manufacturing needs, not on worries about rust.
Factors Determining the Maximum Thickness of Pure Titanium Sheets
Manufacturing Process Capabilities and Technological Constraints
The highest width that can be made depends on the capabilities of the production tools and the control of the process. Hot rolling is the main way that thick titanium sheets are made. They have to go through several passes through strong rolling mills that keep the temperature precisely between 800°C and 950°C. The 50 MN hammered press and the 2,500-ton high-speed forging press at our plant can reduce billets from big ingots to finished sheets while keeping the grain structure intact. For smaller gauges, cold rolling gives you precise measurements and a smooth surface, but it's not realistic for gauges bigger than 6mm because it needs too much force and has problems with springback. As the thickness goes up, annealing processes become longer and more important because they stop work hardening and recover flexibility. When we vacuum anneal materials in our 3-ton vacuum furnace, we keep the air from contaminating them, which could damage their properties. Because of these technological factors, makers set maximum thickness limits. Going beyond what the equipment can handle can cause differences in dimensions, internal flaws, and changes in mechanical properties that don't meet quality standards.
Grade-Specific Thickness Capabilities
Different types of titanium have different maximum thickness potentials because the way they are composed affects how easy they are to work with and how they respond to mechanical forces. Grade 1 has very little intermediate content and can be worked well both hot and cold. With the right tools, it can be made into sheets up to 50 mm thick. The lower strength of the material makes it easier to reduce during rolling and shaping. The slightly higher oxygen level in Grade 2 makes it stronger while still being easy to shape. It can hold the same thickness ranges with a little more work to do during processing. The higher oxygen amount (up to 0.40%) in Grade 4 makes it much stronger, but it's harder to work with when it's hot, so the maximum thickness might be limited to 40 mm based on what the maker can do. To keep the higher strength from cracking during reduction, the press needs to be able to hold more weight and the heating processes need to be better managed. When buying experts know about these limits that are specific to each grade, they can choose the right grades that meet the needs for thickness and performance without having to describe impossible combinations that slow down production or raise costs.
Application-Driven Thickness Requirements
In addition to easy size factors, pure titanium sheet thickness has a big effect on how well it works. Thinner sheets (0.5mm to 3mm) are easier to shape and bend, which lets medical devices and aircraft parts have complex designs. Higher extension percentages are found in these sizes, which makes deep drawing and hydroforming easier. Thicknesses in the middle (3mm to 12mm) are good for uses that need middling load-bearing capacity and rust protection, like chemical tanks, heat exchanges, and ornamental panels. Heavy-gauge sheets (12mm–50mm) give pressure tanks, offshore platforms, and high-stress aircraft parts the strongest structure possible. Thermal conductivity and heat discharge rates are also affected by thickness, which can change how well something works in hot settings. The corrosion-resistant passive oxide film forms the same way no matter how thick the material is. This means that when surface conditions stay the same, a 1 mm sheet has the same chemical resistance as a 25 mm plate. Because of this feature, designers can choose the best width based only on engineering and manufacturing needs, not on worries about rust.
Comparing Pure Titanium Sheet Thickness with Alternatives
Titanium Alloys: Strength Versus Thickness Trade-offs
Titanium alloys like Ti-6Al-4V (Grade 5) are much stronger than Grade 2 (tentsile strength over 900 MPa vs. 345 MPa), but they are harder to work with and come in fewer width options. Alloy formulas make it harder to work with hot metal, so controlled forging temperatures and more press capacity are needed to decrease the thickness by the same amount. Because of this, titanium alloys are usually sold in smaller sheets (up to 25 mm thick), compared to commercially pure grades. Because it is stronger, designers can make sections thinner while keeping their load capacity the same. This could help justify the higher cost of the material. But alloys aren't as resistant to rust as pure grades, and they're harder to shape, which limits their use in situations where complex shaping is needed. When buying things, economically pure titanium sheets are more useful and cost-effective when maximum thickness and good rust protection are more important than absolute strength. The choice depends on how the application-specific stress estimates are done and how the world is exposed.
Stainless Steel and Aluminum Thickness Comparison
Because they are easy to work with while hot and are widely used in manufacturing, stainless steel sheets can often be 100 mm thick or more. This makes them ideal for very heavy uses. But because stainless steel is dense (about 8.0 g/cm³), a 25mm stainless sheet weighs almost twice as much as a titanium sheet of the same size. This has a big effect on the cost of shipping, the weight of structures, and the amount of work that needs to be done. Titanium is resistant to pitting and fissure rust in chloride-rich areas, but stainless steel is not. Aluminium sheets can also be made very thick, but they have a smaller density (2.7 g/cm³) than titanium sheets, which makes them lighter. But aluminium isn't nearly as strong as titanium. For example, normal aluminium alloys have a tensile strength of about 300 MPa, while Grade 4 titanium has a 550 MPa strength. This means that bigger parts are needed to achieve the same load capacity. Aluminium also doesn't fight rust as well as titanium does in acidic and hot settings. These similarities show that titanium has a special performance spot where its mild thickness, excellent rust resistance, high strength-to-weight ratio, and biocompatibility all come together. This is why it costs more than other materials but is worth it for demanding uses.
Thickness Effects on Corrosion Performance
A common misunderstanding is that bigger pure titanium sheet thickness means better at resisting rust. However, titanium's defence system doesn't work that way. The material doesn't rust because it has a thin, self-healing passive oxide film (TiO2) that forms instantly when exposed to air. This film protects the same way no matter how thick the base material is—in the same conditions, a 1mm sheet is just as resistant to rust as a 50mm plate. Instead of thinking that thickness makes chemical protection better, thickness selection should be based on structural needs, rust limit over service life, and mechanical loads. Corrosion limit is only important in very few situations where mechanical wear keeps removing the protected film faster than it can form again. Because the passive film is stable across pH ranges (except for hot concentrated alkalis and concentrated hydrofluoric acid), thickness parameters can be used to get the best value for money without sacrificing chemical resistance. This is what makes titanium different from materials like carbon steel, where thickness directly affects how long rust lasts by affecting the rate of material loss.
Procurement Insights: How to Source the Right Thickness of Pure Titanium Sheet?
Supplier Evaluation and Certification Requirements
To get thick titanium sheets, you need to work with makers who have the right certifications, tools, and technical know-how. Check that the providers you're working with have ISO9001 quality management systems that include written process rules and the ability to track materials. Aerospace uses need AS/EN 9100 approval, which shows that providers meet quality standards that are specific to the business and not just general manufacturing standards. To buy medical devices, you need to be certified with ISO13485:2017, which shows that you know how to handle medical-grade materials and follow quality control rules. MICRO-A keeps all three licenses up to date, which lets us meet the needs of a wide range of industries with the right paperwork. Ask for Mill Test Reports (MTRs) to be sent with every order. These report the chemical makeup, mechanical property test results, and heat treatment records. Check the tools that the seller has by asking about their press capacity, rolling mill specs, and melting furnace sizes to make sure they can physically make the amount you need. Established sellers keep in touch with basic titanium makers to make sure they have stable product quality and a steady supply even when the market changes.
Lead Time Considerations and Custom Cutting Services
The thickness has a big effect on production wait times and shipping schedules, which procurement managers have to plan for when they plan projects. Standard width sheets (1 mm to 6 mm) are often kept in stock, which lets orders be filled quickly—within two to three weeks. When the thickness is between 12mm and 25mm, it usually has to be made from block stock, which can add 6 to 10 weeks to the wait time, based on the number of orders and the production schedule. Ultra-thick sheets (25mm to 50mm) may take 12 to 16 weeks to get because sources have to plan time for special tools and do long heating processes. Custom cutting services add value by giving customers pieces that are exactly the right size, which cuts down on trash and machining time. Check about providers to see if they offer waterjet cutting, laser cutting, or precision sawing that doesn't change the qualities of the material and doesn't create heat-affected zones. Our Japan Mazak five-axis CNC and digital machining tools can cut complicated profiles straight from sheet stock. This lets us make near-net-shape parts that save you money on handling costs later on. Talk about minimum order numbers (MOQs) early on in the buying process. Because of the cost of processing and materials, bigger sheets usually have higher MOQs.
Cost Optimization Strategies for Bulk Purchasing
Through things like the amount of raw materials used, the difficulty of making, and the use of tools, material thickness has a direct effect on price. Because they take longer to prepare, use more energy during heating processes, and have lower production rates on rolling tools, thicker sheets cost more per kilogram. Negotiating to buy in bulk, on the other hand, can save you a lot of money through big agreements and more efficient production. Putting together orders based on standard width steps (5mm, 10mm, 15mm, etc.) cuts down on the need for special setup and makes suppliers more efficient, which could lower unit costs. Talk about long-term supply deals that promise volume over 12 to 24 months. This gives suppliers production stability, which is a good reason to give them better terms. Think about semi-finished forms like rough-cut blanks that don't need to be perfect and still keep your cutting waste to a minimum. Check the total landing cost, which includes transportation. Thicker sheets hold more value in smaller amounts, which could make air freight a good option for urgent needs. MICRO-A can produce 160 tonnes of goods every year, which means that committed buyers can always get a steady supply of goods at a good price. Start technical talks early to make sure that the width requirements fit the needs of the application. Do not over-specify, as this will cause costs to rise needlessly.
Conclusion
Pure titanium sheet width is an important standard that balances mechanical performance, ease of manufacture, resistance to rust, and cost in a wide range of industry settings. Commercially pure grades come in thicknesses ranging from 0.5 mm to 50 mm, based on the grade and the ability to manufacture it. Each thickness range is best for a certain type of application. Procurement workers can make smart choices about where to buy things when they know how manufacturing methods, grade traits, and industry standards affect the maximum width. Titanium alloys and other materials like stainless steel and aluminium are not as good as pure titanium sheets, which have a high resistance to rust, a good strength-to-weight ratio, and are biocompatible. For buying to go well, you need to work with qualified providers who have the right tools, quality systems, and technical know-how to supply products that meet strict industry standards.
FAQ
How thick are the thickest fully pure titanium sheets that you can buy?
Most makers set the maximum width at about 25 mm so that production runs smoothly and the sizes are always the same. Sheets up to 50 mm thick can be made by specialised suppliers with high-tech casting and rolling tools, especially in Grade 1 and Grade 2 materials. The thickest parts can be made with big hydraulic presses and controlled heating facilities, which raise the maximum thickness. Due to the need for multiple hot rolling passes and longer heat treatment processes to keep the material's qualities, ultra-thick sheets have longer lead times.
Does adding thickness make it more resistant to corrosion?
No, thickness doesn't make rust work better. Titanium's chemical resistance comes from a passive oxide film that forms on the surface and heals itself. This film gives the same resistance no matter how thick the base material is. In the same climate, a 1 mm sheet is just as resistant to rust as a 50 mm plate. Instead of thinking that a higher thickness will protect against rust, thickness selection should be based on structural needs and mechanical loads. Because of this property, designers can choose the right amount of material for the structure without sacrificing its chemical resistance.
How does width change the cost and length of wait time?
Making thicker sheets takes longer because they have to be rolled over more than once, they need to be heated for longer periods of time, and they can't be made as quickly. Standard widths (1 mm to 6 mm) usually keep stock on hand, and shipping takes two to three weeks. For specifications above 12mm, it usually takes 6–10 weeks, but for ultra-thick sheets, it could take 12–16 weeks. Thicker materials cost more because they require more raw materials and are harder to handle. However, buying in bulk and making long-term deals can lower total costs.
Partner with MICRO-A for Premium Titanium Sheet Solutions
If you need something with a width between 0.5 mm and 50 mm across ASTM Grades 1-4, MICRO-A Titanium Metals is ready to help. As a recognised producer of pure titanium sheets with its headquarters in Baoji, China's titanium city, we offer advanced production skills and a wide range of quality certifications, such as ISO13485:2017, AS/EN 9100, and ISO14001. Our 2,500-ton hydraulic press, high-precision CNC cutting centers, and strict quality control systems make sure that materials are always the same size and shape for uses in aircraft, medicine, chemical processing, and industry. We offer full material tracking, unique cuts, and expert advice to help you get the best results for your needs. Whether you need standard sizes or custom ultra-thick sheets, our team can help. We communicate clearly and stick to delivery dates, which keeps your supply chain safe. You can email our buying experts at mayucheng188@aliyun.com or visit micro-atitanium.com to talk about your project needs and get a quote that fits your budget and technical standards.
References
ASTM International. (2021). ASTM B265: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. West Conshohocken: ASTM International.
Boyer, R., Welsch, G., & Collings, E.W. (2020). Materials Properties Handbook: Titanium Alloys. ASM International.
Schutz, R.W. & Watkins, H.B. (2019). "Recent developments in titanium alloy application in the energy industry." Materials Science and Engineering: A, 243(1-2), pp. 305-315.
Donachie, M.J. (2018). Titanium: A Technical Guide (3rd Edition). Materials Park: ASM International.
Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. (2021). "Titanium and Titanium Alloys: Fundamentals and Applications." Advanced Engineering Materials, 14(6), pp. 419-427.
Lutjering, G. & Williams, J.C. (2019). Titanium: Engineering Materials and Processes (2nd Edition). Berlin: Springer-Verlag.
