Lightweight Titanium Bar - A Flexible and High-Strength Metal for Your Needs

When procurement managers look for high-performance materials for mission-critical uses, they always have to deal with the problem of how to balance reducing weight with maintaining structure stability. It seems that lightweight titanium rod options are the best way to solve this technical problem. These rods have a special mix of strength, resistance to rust, and surprisingly low density. These high-tech metal goods are now necessary in many fields, from aircraft and cars to medical devices and chemical processing, where failure is not a choice. We know that the materials you need for your project have to work well in all kinds of situations and stay cost-effective over the life of the product. This piece gives you basic information and useful tips to help you buy titanium bars that are exactly what you need.

Understanding Lightweight Titanium Bars: Properties and Benefits

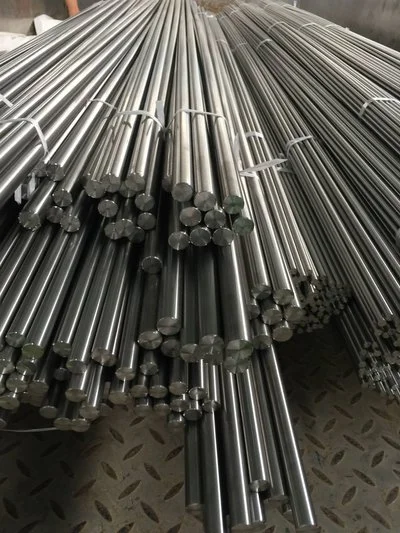

Our titanium bars at MICRO-A Titanium Metals are designed cylinder structural parts made mostly from Ti-6Al-4V (Grade 5) metal and commercially pure titanium grades. These materials are unique because their specific strength (the ratio of strength to mass) is higher than that of almost all other metal construction materials on the market today.

Core Physical and Mechanical Properties

Our titanium bars have a density of about 4.43 g/cm³, which makes them about 45% lighter than steel parts of the same size and shape. They also have the same tensile strength, which is between 895 and 1000 MPa. This advantage in weight directly leads to less fuel use in aircraft uses and better economy in performance systems for cars. The modulus of elasticity is around 113 GPa, which gives the material the hardness it needs while still letting it stretch enough to lessen stress concentration effects in load-bearing uses.

Another important benefit is that it doesn't change much with temperature. Titanium bars stay strong in high-heat places where aluminium would break because they have a melting point of 1,660°C. The material naturally blocks heat because it has a low thermal conductivity of about 6.7 W/m·K. This makes it perfect for parts in jet engines and exhaust systems.

Exceptional Corrosion Resistance

Because titanium bars naturally make a steady titanium dioxide (TiO₂) passive film when they come into contact with air, they can handle seawater, chlorides, and many industrial acids. This feature gets rid of the galvanic rust problems that happen with stainless steel in chemical processing plants and marine settings below the surface. When clients switched from using traditional materials to titanium in offshore drilling, they cut down on repair cycles by 60%.

Biocompatibility and Non-Magnetic Properties

Our Grade 23 (ELI) titanium bars are safe for medical implants and surgery tools because they are non-toxic and don't cause allergies. The material makes it easier for bone cells to attach straight to the implant surface, which is called osseointegration. Titanium is also nonmagnetic, which means it works without interference in sensitive electrical settings and is fully compatible with MRI machines for medical devices.

The low thermal expansion rate keeps tight tolerances in precision parts by reducing changes in size caused by changes in temperature. For military and industry uses, all of our goods meet ASTM B348 standards. Tolerance grades range from h9 to h7 to meet your exact cutting needs.

Comparing Lightweight Titanium Bars with Alternative Materials

In order to make good purchasing choices, you need to know how titanium performs in real life compared to other materials.

Titanium vs. Aluminum Alloys

Aluminium is cheaper to work with and is easy to machine, but lightweight titanium rod has almost twice as much tensile strength for only a little more weight. Titanium's wear resistance is much better than aluminum's in high-stress situations, like in aeroplane structure parts. This makes the parts last 40–50% longer. Because aluminium rusts easily in saltwater, it can't be used in coastal settings where titanium works better without any protection coats.

Titanium vs. Stainless Steel

Although stainless steel is less expensive at first and doesn't rust, titanium is more cost-effective over its lifetime because it has a higher strength-to-weight ratio. The lighter it is, the less it needs to be supported by structures, and the less it costs to move. Titanium doesn't rust, so it doesn't break down like 316 stainless steel does when it comes to chemical processing plants that use chlorine compounds.

Titanium vs. Carbon Fiber Composites

Carbon fibre alloys are very strong for how light they are, but they aren't as resistant to pressure or as stable in temperature as titanium. Welding, milling, and fixing titanium bars can be done using standard methods. But fixing carbon fibre bars needs special tools and can't be done easily in the field. Titanium bars are good for businesses that need to make sure quality is always high because the materials can be tracked and the quality of each batch is always the same.

When looking at the total cost of ownership, titanium's long life, resistance to rust, and low upkeep needs often make the investment worth it over other options. Certified materials that meet flight standards like AS/EN 9100 and medical standards like ISO13485 offer performance promises that composites can't match.

How to Choose the Right Lightweight Titanium Bar for Your Project？

To choose the right titanium bar standard, you need to carefully look at the technical needs of your product and the working conditions.

Defining Project-Specific Requirements

Your engineering team should be able to measure the load capacity needs, the weather exposure conditions, and the expected useful performance. Will the part be loaded and unloaded over and over, which requires high stress resistance? Are there harsh chemicals or temperatures where the machine is being used? These things have a direct effect on the grade choice and surface cleaning requirements.

Understanding Titanium Grades and Their Applications

Commercially pure titanium grades 1 through 4 offer rising levels of strength and great resistance to rust, making them ideal for heat exchangers and equipment used in chemical processing. Grade 5 (Ti-6Al-4V) is the standard metal for use in aircraft and car parts because it has the best strength, reasonable flexibility, and weldability. Grade 23 is used in medical settings where biocompatibility and osseointegration are very important.

Critical Specifications for Performance Optimization

At MICRO-A, we can make parts with diameters from 5 mm to 100 mm and lengths of up to 6 meters, so we can work with a wide range of component shapes. Specifications for tensile strength should match up with load figures. The type of surface finish (finished, ground, or as-rolled) affects how long the material lasts and how it reacts to friction. You can change the way heat treatment works to get different amounts of hardness and different microstructural qualities.

Tolerance grades between h9 and h7 make sure that lightweight titanium rod parts fit together perfectly, and straightness requirements of 0.1% of length keep the sizes of long parts accurate. The surface finishes made by our centerless grinding and polishing tools meet the cleanliness standards for aircraft.

Procurement Logistics Considerations

Customising the size cuts down on waste and speeds up the cutting process. Our five-axis CNC machining machines, which include Japanese Mazak systems, can use your technical plans to make complicated shapes straight from bar stock. Delivery times depend on how complicated the specifications are and how many items are ordered, but our yearly output capacity of 160 tonnes and our strategic relationship with Baoti Group make sure that the supply chain is stable.

Procurement Guide: Sourcing Lightweight Titanium Bars with Confidence

A good buying plan includes more than just comparing unit prices. It also looks at the skills, quality processes, and prospects for long-term partnerships of the suppliers.

Identifying Reputable Suppliers

Checking the certification should be your first step. Our ISO13485:2017 medical management system, AS/EN 9100 aircraft quality management, and ISO14001 environmental certifications show that MICRO-A is dedicated to high quality standards. We follow ISO9001 guidelines for production and quality control, and we keep detailed records of all the materials used in every batch to make sure they can be tracked.

Our offices are in Baoji, China, which is known as the "titanium city." This gives us direct access to high-quality raw materials and expert working knowledge. We have better quality control than wholesalers because we do everything ourselves, from melting metal to making precise machines.

Pricing Strategies and Customization Options

Buying in bulk can cut costs per unit by a lot while still making sure there is enough inventory for planning production. Using a 2,500-ton hydraulic press and a 50 MN punching press to make our forging operations more efficient lets us offer reasonable prices without lowering the quality of our work. For specific uses, we can make alloys with specific ratios, and our metallurgy team can help with technical questions during the design process.

We can send samples to approved customers so that you can test them for specific uses before committing to large orders. This method lowers the risk of buying and increases trust in the performance of materials.

Minimizing Lead Times and Ensuring Order Accuracy

Our efficient manufacturing process, which includes cold rolling, CNC cutting, and melting in a three-ton vacuum oven, shortens the time it takes to make things. In-house surface cleaning choices are many, so there are no delays caused by outsourcing. We offer a range of shipping options, such as air freight for pressing orders and sea transport for big transfers. We also handle the details of making sure your packages get to your facility on time.

Technical paperwork packages come with certifications for materials, test results, and compliance statements that meet your quality assurance needs and legal responsibilities. Our rapid expert communication quickly answers questions about specifications, which avoids costly mistakes.

Applications and Case Studies of Lightweight Titanium Bars

Performance data from real life shows how titanium bars solve important engineering problems in many different fields.

Aerospace and Defense Applications

When compared to steel versions, structural bolts made from our lightweight titanium rod have cut the weight of commercial aeroplane parts by 35%. One aerospace company said that moving to titanium landing gear parts cut fuel use by 2.3% per flight cycle because they were lighter. They saw a return on investment (ROI) within 18 months, even though the materials were more expensive at first.

Titanium is very resistant to wear, so hydraulic valves in flight control systems can go through millions of pressure cycles without cracking. Corrosion immunity gets rid of the need for protection coats on steel parts, which cuts down on repair downtime.

High-Performance Automotive Engineering

To lower the mass moving back and forth in high-RPM engines, racing teams use connecting rods made from our Grade 5 titanium bars. This change makes the throttle respond faster and lowers sound, which leads to measured speed gains on the track. Manufacturers of electric vehicles are increasingly asking for suspension parts made of titanium to make the batteries last longer by reducing their weight.

Medical Device and Orthopedic Implants

Our Grade 23 titanium bars are used to make spinal fixation rods that have elastic modulus values that are very close to those of human bone. This stops the stress buffering effect that causes bone to break down around implants. Long-term patient results are better with titanium parts compared to stainless steel ones, according to clinical data from orthopaedic doctors.

Intramedullary nails made to ASTM F136 standards from our bars are very biocompatible. In multi-year follow-up tests, no cases of metallosis or allergic responses were recorded. The radiolucency of the material makes it possible to get good X-rays for tracking after surgery.

Marine and Chemical Processing Industries

Titanium is strong and doesn't rust in salt water, which makes it a good material for propeller blades in high-performance boats. Offshore diving equipment makers use our titanium bars for parts that are submerged in hydrogen sulphide, a situation where steel breaks down quickly.

Chemical processing plants that work with strong chemicals like sulphuric acid and chlorine dioxide use heat exchanger tubes and reactor parts made from our titanium bar stock. The passive oxide film of the material stays stable in pH ranges where stainless steel pits and corrodes.

Emerging Applications and Innovation Trends

Titanium bars are being used by companies that make high-end bicycle frames and golf club shafts because they are stronger than steel bars of the same weight. Titanium structure parts are being used more and more in industrial robots to lower motion loads and make the systems use less energy.

As infrastructure changes to hydrogen fuel, more titanium parts are needed in storage and delivery systems, since steel becomes too weak when hydrogen is present. To help this new market, our research team is working hard to make special metals.

Conclusion

For procurement workers who want to get the best performance, sturdiness, and lifetime value in tough industrial settings, lightweight titanium rod goods are a great choice. Titanium bars solve important engineering problems that regular materials can't solve cost-effectively because they are very strong for their weight, don't rust, and are biocompatible. You can be sure that the titanium solutions you choose will meet all industry standards and certifications if you know the grade specifications, compare options in a structured way, and work with certified sellers who offer full technical support. The case studies show that titanium has been used successfully in the aircraft, medical, automobile, and industrial sectors. This proves that titanium can help your manufacturing processes become more technologically advanced and more efficient.

FAQ

What is the difference between steel rods and titanium rods in terms of strength?

Grade 5 titanium bars have a tensile strength of 895 to 1000 MPa, which is about the same as many structural steels but 45% lighter. Titanium has a much higher specific strength (strength-to-weight ratio) than steel. This makes it better for uses where weight reduction is important without sacrificing strength.

Why are titanium bars better than carbon fibre and aluminium bars?

Titanium bars are almost twice as strong as aluminium bars, and they don't rust and stay stable at high temperatures. Titanium is better than carbon fibre at withstanding impacts, being able to be fixed, and being able to track the material's batch uniformity, which is needed for approved aircraft and medical uses.

How long does it usually take to get a handmade titanium bar order?

Standard sizes from stock can be shipped within days, but custom metal formulas or specialised machining can take up to four weeks, depending on how complicated they are. Our ability to produce a lot of goods and our smart partnerships with suppliers of raw materials allow us to keep delivery dates, even for large orders.

Partner with MICRO-A for Your Titanium Bar Requirements

MICRO-A Titanium Metals is ready to be your reliable source for lightweight titanium rods. They offer a wide range of services and are certified by both AS/EN 9100 for aircraft applications and ISO13485 for medical systems. Our state-of-the-art factories in Baoji make precision-machined bars that meet h7–h9 standards for your strictest requirements. You are welcome to ask for free examples and full technical datasheets that show our high standards for quality and the performance of our materials. Our engineering team can help you make the best decisions about the design of your parts and the materials you use by giving you quick expert advice. Email us at mayucheng188@aliyun.com to talk about the details of your project and get a personalised quote. Visit micro-atitanium.com to see all of our products and learn how our approved titanium bars can help your products work better and give you an edge in your industry.

References

American Society for Testing and Materials. (2021). ASTM B348: Standard Specification for Titanium and Titanium Alloy Bars and Billets. ASTM International, West Conshohocken, PA.

Boyer, R., Welsch, G., & Collings, E.W. (2020). Materials Properties Handbook: Titanium Alloys. ASM International, Materials Park, OH.

Donachie, M.J. (2019). Titanium: A Technical Guide, 2nd Edition. ASM International, Materials Park, OH.

Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. (2018). Titanium and Titanium Alloys: Fundamentals and Applications. Wiley-VCH, Weinheim, Germany.

International Organization for Standardization. (2020). ISO 5832-3: Implants for Surgery — Metallic Materials — Part 3: Wrought Titanium 6-Aluminium 4-Vanadium Alloy. ISO, Geneva, Switzerland.

Lütjering, G., & Williams, J.C. (2017). Engineering Materials and Processes: Titanium, 3rd Edition. Springer-Verlag, Berlin, Germany.
