The production method of titanium foil

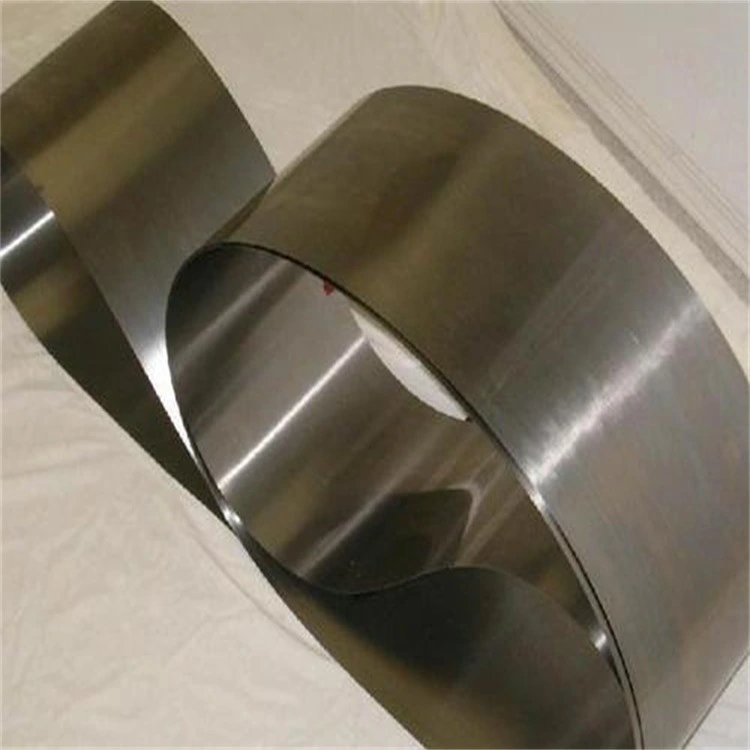

When aerospace engineers struggle to find lightweight materials that won't fail under extreme conditions, or medical device manufacturers seek biocompatible solutions for critical implants, they turn to Titanium Foil Roll. Understanding the production method of titanium foil is essential for industries demanding precision, durability, and performance. This comprehensive guide explores how manufacturers transform raw titanium into ultra-thin, high-performance Titanium Foil Roll through sophisticated metallurgical processes, revealing the technical expertise behind this remarkable material that powers innovations from aircraft components to life-saving medical devices.
Understanding Raw Material Preparation and Extraction for Titanium Foil Roll
The journey of producing high-quality Titanium Foil Roll begins with extracting titanium from mineral deposits through the Kroll Method, a sophisticated process that has revolutionized titanium manufacturing since its development. This extraction method involves creating titanium tetrachloride through fractional distillation, followed by chemical reduction using magnesium to produce metallic titanium. The resulting material, known as titanium sponge due to its highly porous structure, serves as the foundation for all subsequent manufacturing steps. Quality control at this initial stage proves critical, as impurities in the raw material directly impact the final Titanium Foil Roll characteristics. Manufacturers must carefully select titanium grades ranging from Grade 1 to Grade 5, each offering distinct mechanical properties and chemical compositions suited for specific applications. Grade 1 titanium provides maximum corrosion resistance with lower strength, while Grade 5 titanium alloy delivers superior strength characteristics essential for aerospace applications. The purity requirements for premium Titanium Foil Roll typically range from 99.6% to 99.9%, with strict controls on hydrogen content below 0.005% and iron content below 0.02% to ensure optimal ductility and performance. This meticulous attention to raw material quality establishes the foundation for producing Titanium Foil Roll that meets demanding international standards across medical, aerospace, and industrial sectors.
Ingot Casting and Initial Processing
Following the extraction of titanium sponge, manufacturers proceed with vacuum arc remelting to consolidate the porous material into dense titanium ingots. This critical step employs 3-ton vacuum furnaces operating under controlled atmospheric conditions to prevent contamination and oxidation during the melting process. The vacuum environment ensures that reactive titanium remains pure while achieving complete melting and homogenization of chemical compositions throughout the ingot. Sophisticated temperature control systems maintain precise melting parameters, typically between 1668°C and 1700°C, ensuring consistent material properties within each batch of Titanium Foil Roll precursor material. Heavy lathes then machine the surface of these titanium alloy ingots, removing any surface irregularities and preparing the material for subsequent forging operations. Modern manufacturing facilities utilize computerized numerical control systems to achieve surface finishes meeting aerospace specifications while minimizing material waste. The ingot casting process also incorporates strategic cooling protocols that influence the microstructural development of the titanium, affecting grain size and distribution patterns that ultimately determine the mechanical properties of the finished Titanium Foil Roll. Quality assurance personnel conduct chemical composition analysis using X-ray fluorescence spectroscopy and spectrographic techniques to verify that each ingot meets specification requirements before advancing to forging operations.
Hot Forging and Breakdown Processing of Titanium Foil Roll Materials
Hot forging represents a transformative stage where massive titanium ingots undergo controlled deformation to create intermediate products suitable for rolling into Titanium Foil Roll. Manufacturing facilities employ 50 MN hammering presses and 2500-ton high-speed forging presses to manufacture high-quality pure titanium and titanium alloy billets, slabs, blocks, bars, disks, and rings. These powerful forging operations occur at elevated temperatures between 900°C and 1050°C, where titanium exhibits enhanced plasticity and reduced flow stress, enabling significant thickness reductions without cracking or material damage. The forging process accomplishes multiple critical objectives simultaneously: it breaks down the cast dendritic structure from the ingot, refines grain size through dynamic recrystallization, closes internal porosity, and creates a more homogeneous microstructure throughout the material. Operators carefully control forging parameters including temperature, deformation rate, and reduction ratio to optimize the mechanical properties and workability of the titanium for subsequent Titanium Foil Roll production. Between forging passes, materials undergo reheating to maintain optimal processing temperatures and prevent work hardening that could lead to cracking during deformation. The forging equipment's sophisticated hydraulic systems deliver precise force application, ensuring uniform deformation across the entire workpiece cross-section. This consistency proves essential for producing Titanium Foil Roll with predictable properties and minimal thickness variations. Advanced forging facilities incorporate real-time monitoring systems that track temperature distribution, press force, and material flow patterns, enabling operators to make immediate adjustments maintaining product quality. The resulting forged slabs typically measure between 50mm and 150mm in thickness, representing the optimal starting gauge for hot rolling operations that further reduce material thickness toward foil dimensions.
Hot Rolling Operations for Titanium Sheet Production
Hot rolling operations transform forged titanium slabs into thin sheets that serve as precursors for cold-rolling into Titanium Foil Roll. This multi-pass process employs specialized rolling mills equipped with work rolls and backup rolls designed to withstand the extreme forces required for titanium deformation. During hot rolling, titanium sheets pass repeatedly through the mill, with each pass achieving incremental thickness reductions typically ranging from 10% to 30% depending on material temperature and mill capabilities. The process temperature remains carefully controlled between 750°C and 950°C, balancing the need for adequate material plasticity against concerns about excessive oxidation and alpha-case formation on the titanium surface. Manufacturers often utilize pack-rolling techniques for titanium, where the material is enclosed within protective envelopes of stainless steel or carbon steel sheets that minimize atmospheric contamination during processing. This innovative approach significantly reduces oxygen absorption and surface oxidation while protecting the titanium from direct contact with work rolls, thereby improving surface quality of the eventual Titanium Foil Roll product. The pack-rolling process also promotes more uniform temperature distribution and deformation across the sheet width, reducing edge cracking and improving overall yield. Between rolling passes, sheets undergo intermediate annealing treatments in controlled atmosphere or vacuum furnaces at temperatures between 600°C and 750°C to relieve accumulated stress and restore material ductility for continued processing. These heat treatments enable manufacturers to achieve greater total thickness reductions while maintaining excellent surface quality and mechanical properties. Modern hot rolling facilities incorporate computer-controlled rolling schedules that optimize pass sequences, reduction ratios, and reheating cycles based on material grade and target thickness specifications for the finished Titanium Foil Roll products.
Cold Rolling Technology for Ultra-Thin Titanium Foil Roll Production
Cold rolling represents the most critical manufacturing phase for producing ultra-thin Titanium Foil Roll with precise thickness control and exceptional surface quality. This sophisticated process utilizes multi-roll foil mills featuring four to twenty work rolls arranged in cluster configurations that distribute rolling forces more effectively than conventional two-high or four-high mill designs. These advanced mill configurations enable the extreme thickness reductions necessary to transform titanium sheet into foil gauges ranging from 0.003mm to 0.2mm while maintaining dimensional accuracy within ±3% tolerance. The cold rolling process for Titanium Foil Roll occurs at ambient temperature, where titanium work hardens significantly during deformation, requiring frequent intermediate annealing cycles to restore ductility and enable continued thickness reduction. Manufacturers employ sophisticated rolling schedules alternating between cold rolling passes and vacuum annealing treatments, carefully balancing productivity against material quality and processing costs. During cold rolling, titanium foil passes through the mill multiple times with progressively smaller thickness reductions, typically ranging from 5% to 20% per pass depending on material hardness and mill capabilities. Rolling mills designed for Titanium Foil Roll production incorporate extremely rigid frames and precision roll grinding systems that maintain cylindrical work roll profiles essential for uniform thickness distribution across the foil width. Advanced tension control systems apply carefully regulated pulling forces on the foil as it exits the mill, preventing buckling, wrinkling, or other surface defects while promoting even thickness reduction. Surface preparation between rolling passes includes thorough degreasing and cleaning operations using alkaline solutions or solvents to remove rolling lubricants and contaminants that could become embedded in the foil surface during subsequent passes. The final cold rolling passes achieve the target thickness and surface finish specifications, with manufacturers offering matte, bright, or custom surface finishes depending on application requirements for the Titanium Foil Roll.
Annealing and Heat Treatment Processes
Annealing represents an indispensable heat treatment process integrated throughout Titanium Foil Roll manufacturing, serving to restore ductility, refine microstructure, and relieve residual stresses accumulated during cold working operations. Continuous online protection annealing systems provide the most advanced approach, where titanium foil travels continuously through controlled atmosphere or vacuum furnaces without exposure to atmospheric contamination. These sophisticated annealing lines maintain precise temperature profiles, typically heating foil slowly to temperatures between 600°C and 750°C depending on titanium grade and desired mechanical properties. The slow heating rate, usually 50°C to 100°C per hour, allows uniform temperature distribution throughout the foil thickness while preventing thermal shock that could induce cracking or distortion in the ultra-thin material. Soaking periods at the peak temperature, ranging from 30 minutes to several hours depending on foil thickness and grade, enable complete recrystallization and grain growth processes that restore the ductility essential for subsequent processing or end-use applications of Titanium Foil Roll. The protective atmosphere within annealing furnaces consists of high-purity argon, vacuum conditions, or specially designed gas mixtures that prevent oxidation while allowing controlled removal of hydrogen that may have entered the titanium during previous processing steps. Some manufacturers employ pack annealing techniques where Titanium Foil Roll is wrapped in zirconium foil or other reactive metals that preferentially absorb oxygen and hydrogen, further protecting the titanium surface while achieving superior final mechanical properties. Following the soaking period, controlled cooling protocols bring the foil temperature down gradually to room temperature, typically at rates between 50°C and 200°C per hour, preventing thermal gradients that could introduce new residual stresses or dimensional distortions. Advanced annealing facilities incorporate continuous monitoring and recording systems tracking temperature profiles, atmosphere composition, and processing times, ensuring complete traceability and consistent quality for every batch of Titanium Foil Roll produced.
Surface Treatment and Finishing Operations
Surface treatment and finishing operations transform cold-rolled and annealed titanium into final Titanium Foil Roll products meeting exacting specifications for cleanliness, surface roughness, and appearance. Pickling treatments using carefully controlled acid solutions, typically mixtures of hydrofluoric and nitric acids, remove any residual oxide scale, contamination, or alpha-case layers that formed during previous high-temperature processing operations. The pickling process must be precisely controlled regarding acid concentration, temperature, and immersion time to achieve thorough cleaning without excessive material removal or surface roughening that would degrade the quality of the Titanium Foil Roll. Following pickling, multiple rinse cycles using deionized water remove all acid residues and dissolved contaminants, preventing post-treatment corrosion or staining that could compromise material performance. Some applications require additional surface treatments such as passivation, where a thin, stable oxide layer forms on the titanium surface, enhancing corrosion resistance and providing a clean, uniform appearance suitable for critical applications in medical devices and aerospace components. Anodizing processes can introduce controlled oxide layers with specific thicknesses and colors, serving both functional and aesthetic purposes in certain Titanium Foil Roll applications. Precision slitting operations then cut wide foil strips into narrower widths matching customer specifications, using specially designed slitting knives that produce clean, burr-free edges essential for downstream processing and end-use performance. Manufacturers employ centerless grinding and polishing operations for applications requiring extremely smooth edges and tight width tolerances, achieving dimensional accuracies within microns while maintaining material integrity. Final inspection procedures include visual examination under controlled lighting conditions, surface roughness measurements using profilometers, and dimensional verification using precision measuring instruments, ensuring every roll of Titanium Foil Roll meets specified quality standards before shipment to customers.
Quality Control and Testing Protocols for Titanium Foil Roll
Comprehensive quality control and testing protocols distinguish premium Titanium Foil Roll manufacturers from suppliers offering commodity products. One hundred percent material inspection policies ensure that every production batch undergoes rigorous evaluation covering chemical composition, mechanical properties, dimensional accuracy, and surface quality characteristics. X-ray fluorescence analysis verifies that titanium grade specifications match customer requirements, confirming that alloying element concentrations fall within acceptable ranges defined by international standards including ASTM B265 and AMS specifications. Tensile testing machines equipped with precision extensometers measure mechanical properties including ultimate tensile strength, yield strength, and elongation percentage, validating that the Titanium Foil Roll delivers the performance characteristics required for demanding applications. Typical tensile strength values range from 240 MPa for Grade 1 titanium to 1100 MPa for Grade 5 titanium alloy, with elongation values between 15% and 24% depending on grade and processing history. Hardness testing using Rockwell or Vickers methods provides additional characterization of material properties and processing consistency across production batches. Surface finish evaluation employs both visual inspection techniques and quantitative measurements using surface profilometers that assess roughness parameters Ra and Rz, ensuring that matte, bright, or custom surface finishes meet specification requirements. Dimensional accuracy checks utilize precision micrometers, laser scanning systems, and coordinate measuring machines that verify thickness tolerances within ±3%, width dimensions matching customer specifications, and flatness characteristics suitable for end-use applications. Advanced quality control laboratories conduct metallographic examinations using optical and scanning electron microscopy to evaluate grain structure, identify any processing defects, and verify that microstructural characteristics support the intended mechanical properties of the Titanium Foil Roll. Comprehensive material traceability systems track every production batch from raw material receipt through final shipment, maintaining detailed records of processing parameters, test results, and certifications that provide customers with complete documentation supporting their quality assurance requirements.
Advanced Manufacturing Equipment and Facilities
State-of-the-art manufacturing equipment and facilities represent critical competitive advantages enabling production of superior Titanium Foil Roll products. Modern titanium foil plants feature annual production capacities reaching 160 tons or more, supported by integrated equipment suites spanning the entire manufacturing process from raw material melting through final packaging operations. Three-ton vacuum furnaces provide the controlled melting environment essential for producing clean titanium ingots with minimal contamination and optimized chemical homogeneity. Precision forging machines, including both hydraulic presses and mechanical hammers, deliver the force and control necessary for breaking down cast structures and creating refined microstructures in forged billets and slabs. Hot and cold rolling mills equipped with sophisticated automation systems, computerized process control, and precision roll grinding capabilities enable manufacturers to achieve the tight dimensional tolerances and excellent surface quality that characterize premium Titanium Foil Roll products. CNC machining centers provide additional processing capabilities for applications requiring precision cutting, edge preparation, or custom shapes beyond standard rectangular formats. Advanced testing and inspection tools, including spectrometers, tensile testing machines, hardness testers, surface profilometers, and metallurgical microscopes, ensure comprehensive quality characterization of every production batch. Manufacturing facilities meeting ISO 9001, AS9100, and ISO 13485 certification requirements demonstrate organizational commitment to quality management systems, continuous improvement processes, and customer satisfaction that differentiates leading Titanium Foil Roll suppliers. Strategic partnerships with established titanium producers provide access to consistent, high-quality raw materials and technical expertise supporting ongoing product development and process optimization initiatives. Integrated supply chain management systems coordinate raw material procurement, production scheduling, inventory management, and logistics operations, enabling manufacturers to deliver Titanium Foil Roll products meeting customer timeline requirements while maintaining competitive pricing through operational efficiency.
Applications and Market Demand for Titanium Foil Roll
Titanium Foil Roll serves critical functions across diverse industrial sectors where its unique combination of lightweight construction, exceptional corrosion resistance, and biocompatibility creates compelling value propositions unavailable from alternative materials. Aerospace applications represent the largest market segment, utilizing Titanium Foil Roll in structural honeycomb panels, thermal insulation systems, aircraft skin components, and various other applications where weight reduction directly improves fuel efficiency and payload capacity. Medical device manufacturers increasingly specify Titanium Foil Roll for surgical implants, prosthetic components, and diagnostic equipment where biocompatibility with human tissue prevents adverse reactions while excellent corrosion resistance ensures long-term reliability within the body's challenging chemical environment. Chemical processing industries employ Titanium Foil Roll in reactor linings, heat exchangers, and piping systems handling corrosive media including acids, chlorides, and high-temperature process streams where material longevity and maintenance cost reduction justify premium material pricing. Electronics and semiconductor manufacturers utilize ultra-thin Titanium Foil Roll in sputtering targets, capacitor electrodes, and electromagnetic shielding applications leveraging titanium's electrical conductivity and forming characteristics. Automotive and electric vehicle sectors increasingly adopt Titanium Foil Roll in battery technology applications including current collectors, separators, and housing components where weight reduction and electrochemical stability improve vehicle performance and range capabilities. Energy sector applications encompass hydrogen storage systems, solar panel components, and fuel cell technologies where titanium's resistance to hydrogen embrittlement and electrochemical corrosion enables renewable energy infrastructure development. Research and development laboratories worldwide employ Titanium Foil Roll in prototype development, materials testing, and proof-of-concept demonstrations supporting innovation across multiple technology domains. Growing market demand for Titanium Foil Roll products reflects expanding application portfolios, increasing recognition of titanium's performance advantages, and ongoing materials substitution as engineers optimize designs for performance, sustainability, and lifecycle cost considerations.
Conclusion
The production method of titanium foil encompasses sophisticated metallurgical processes transforming raw titanium sponge into ultra-thin, high-performance Titanium Foil Roll through controlled melting, forging, hot rolling, cold rolling, heat treatment, and finishing operations, all executed under rigorous quality control ensuring exceptional material properties for critical aerospace, medical, and industrial applications worldwide.
Cooperate with XI'AN MICRO-A Titanium Metals Co.,Ltd.
XI'AN MICRO-A Titanium Metals Co.,Ltd., founded in 2017 and headquartered in Baoji, China's titanium city, stands as your trusted China Titanium Foil Roll manufacturer, China Titanium Foil Roll supplier, and China Titanium Foil Roll factory offering comprehensive titanium product solutions. Our extensive product portfolio includes titanium sponge, titanium ingot, titanium plate, titanium tube, titanium rod, titanium casting, titanium wire, titanium flange, and various non-ferrous metal materials including nickel, zirconium, tungsten, molybdenum, niobium, tantalum, and copper composite materials. We maintain ISO13485:2017 medical management system, AS/EN 9100 aerospace quality certifications, and ISO14001 environmental certifications, implementing strict ISO9001 quality management throughout our 160-ton annual production capacity supported by cutting-edge equipment including 3-ton vacuum furnaces, 2500-ton hydraulic presses, precision cold rolling lines manufacturing Titanium Foil Roll thickness 0.005mm-0.4mm width up to 600mm, and advanced digital machining centers. As an original China Titanium Foil Roll wholesale supplier with strategic partnerships including Baoti Group, we ensure stable supply chains, competitive pricing, and comprehensive customization services processing drawings, samples, and technical requirements while offering the best Titanium Foil Roll for sale and best Titanium Foil Roll price in the market. Our commitment delivers fast delivery through organized logistics networks supporting air, sea, and express shipping methods meeting your timeline needs with dedicated technical support, comprehensive documentation, material traceability, and continuous improvement based on customer feedback. Contact us today at mayucheng188@aliyun.com to discuss how our expertise in custom titanium solutions can bring your innovative projects to life with superior quality Titanium Foil Roll products backed by decades of metallurgical excellence.
References
1. Wittenauer, J., & Walser, B. (1990). "Processing and Properties of Titanium Foils." Materials Science and Engineering A.
2. Bomberger, J. C., & Tortolano, F. W. (1993). "Pack Rolling Technology for Titanium Alloy Foil Production." Journal of Materials Processing Technology.
3. Gaspar, T. A., et al. (1998). "Melt Overflow Rapid Solidification Technology for Direct-Cast Titanium Strip Production." Metallurgical and Materials Transactions.
4. Cheng, X., et al. (2024). "Innovative Processing Methods for High-Quality Titanium Foil Production." Beijing Institute of Aeronautical Manufacturing Technology Research Reports.
5. International Titanium Association (2023). "Titanium Foil Manufacturing Standards and Best Practices." ITA Technical Guidelines Series.
