Titanium Hex Bar vs Round Bar: Which One to Choose?

When deciding between titanium hex bars and round bars for your industrial applications, the choice primarily depends on your machining requirements and end-use specifications. Titanium hex bars offer superior gripping advantages during CNC operations and eliminate round stock rotation, making them ideal for precision manufacturing in aerospace and medical device applications. Round bars excel in applications requiring smooth rotation, rolling contact, or continuous surface contact. Both configurations deliver titanium's exceptional strength-to-weight ratio and corrosion resistance, but your specific manufacturing process and tolerance requirements will determine the optimal choice for your procurement needs.

​​​​​​​

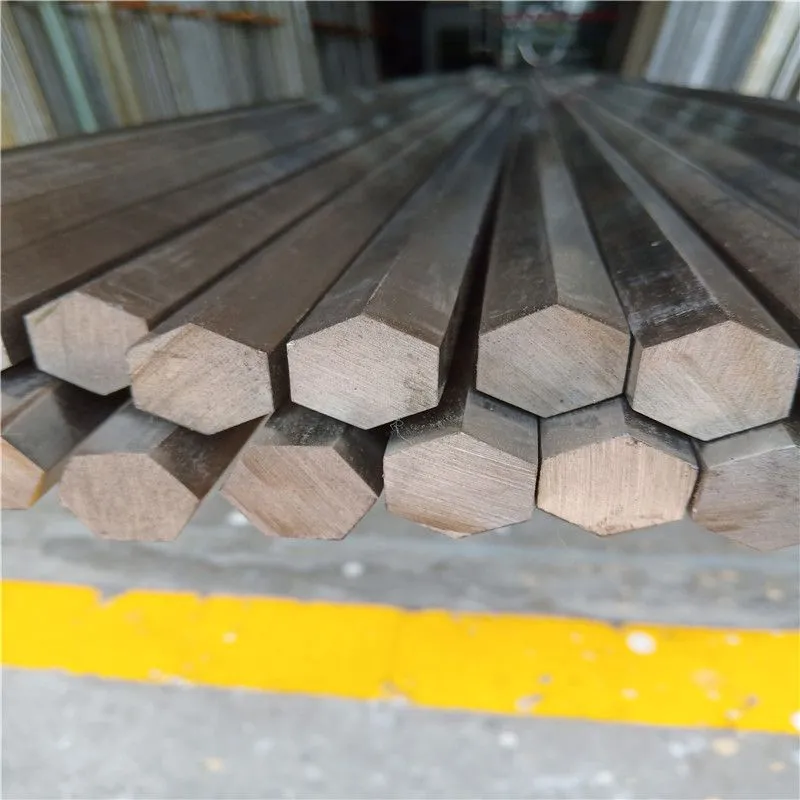

Understanding the Core Differences Between Hex and Round Titanium Bars

The fundamental distinction between hexagonal and round titanium bar configurations extends beyond mere geometry. These shape variations significantly impact manufacturing efficiency, material utilization, and final component performance across diverse industrial applications.

Three core differences emerge when comparing these configurations:

• Machining grip characteristics: Hexagonal bars provide six flat surfaces that prevent rotation during turning operations
• Material removal requirements: Round bars often require additional stock removal to achieve desired tolerances
• Surface area utilization: Hex bars maximize material usage in square or rectangular component manufacturing

Manufacturing data from aerospace suppliers indicates that hex bar configurations reduce machining time by approximately 15-20% when producing components with flat surfaces or angular features. The flat sides of hexagonal bars eliminate the need for additional workholding fixtures that round bars typically require.Cross-sectional area calculations reveal that hex bars deliver roughly 86.6% of the material volume compared to round bars of equivalent circumscribed diameter. This characteristic proves advantageous when material optimization becomes critical for cost-sensitive applications.If you need components with predominantly flat surfaces or angular features, then hex bars are more suitable for your manufacturing requirements.

Material Properties: Performance Comparison Across Configurations

Both hexagonal and round titanium bars maintain identical material properties when manufactured from equivalent alloy compositions. The geometric configuration does not alter fundamental characteristics such as tensile strength, corrosion resistance, or thermal properties.

Grade 2 titanium specifications remain consistent across both configurations:

• Tensile strength: 345-480 MPa
• Yield strength: 275 MPa minimum
• Elongation: 20% minimum
• Density: 4.51 g/cm³

Grade 5 (Ti-6Al-4V) properties demonstrate similar consistency:

• Tensile strength: 895-930 MPa
• Yield strength: 828 MPa minimum
• Elongation: 10% minimum
• Fatigue strength: 540 MPa at 10⁷ cycles

Testing laboratories report that surface finish quality can vary slightly between configurations due to manufacturing processes. Round bars typically achieve Ra values of 1.6-3.2 μm in the as-drawn condition, while hex bars may exhibit Ra values of 3.2-6.3 μm due to the forming process.Heat treatment responses remain identical between configurations when processed under equivalent conditions. Both shapes achieve comparable microstructural characteristics and mechanical property enhancement through standard titanium heat treatment cycles.If you need maximum material properties with standard surface finishes, then round bars may provide slight advantages in as-received condition.

Manufacturing and Machining Considerations

The manufacturing approach for titanium hex versus round bars involves distinct processes that influence both cost and delivery timelines. Understanding these production differences helps procurement professionals make informed sourcing decisions.

Hex bar manufacturing typically involves:

• Hot forging or hot rolling operations
• Secondary drawing through hexagonal dies
• Stress relief annealing cycles
• Surface conditioning processes

Round bar production generally utilizes continuous processes including hot rolling, drawing, and straightening operations. These streamlined manufacturing methods often result in shorter lead times and potentially lower per-pound costs for standard dimensions.Machining characteristics differ significantly between configurations. Hex bars eliminate the need for specialized workholding during initial setup operations. Round bars require chuck gripping or center support systems that may introduce runout variations affecting final tolerances.

Surface speed calculations for CNC operations:

• Hex bars: Variable surface speed across flat faces during rotation
• Round bars: Consistent surface speed enabling optimized cutting parameters

Tool wear patterns show measurable differences between configurations. Round bar machining typically produces more predictable tool wear due to consistent engagement. Hex bar machining may create interrupted cutting conditions that can increase tool wear rates by 10-15% in specific applications.If you need rapid setup times and reduced fixturing complexity, then hex bars offer substantial manufacturing advantages.

Cost Analysis and Material Utilization

Economic considerations play crucial roles in titanium hex bar selection for large-scale industrial applications. The cost differential between hex and round configurations extends beyond initial material pricing to encompass total manufacturing expenses.

Material utilization efficiency varies by application:

• Rectangular component production: Hex bars reduce waste by 12-18%
• Cylindrical component manufacturing: Round bars eliminate unnecessary material removal
• Complex geometries: Configuration choice depends on primary feature requirements

Price premiums for hex bars typically range from 8-15% above equivalent round bar costs due to additional forming operations. However, these premiums often become offset by reduced machining time and improved material utilization in suitable applications.

Inventory management considerations include:

• Round bars: Higher standardization, broader supplier availability
• Hex bars: Limited dimensional ranges, specialized supplier requirements
• Lead times: Round bars generally offer 2-3 week advantage

Secondary processing costs demonstrate notable variations. Components requiring predominantly flat surfaces or angular features show 20-25% machining cost reductions when starting with hex bar stock rather than round material.If you need cost optimization for high-volume rectangular components, then hex bars typically deliver superior total cost performance.

Industry-Specific Applications and Requirements

Different industrial sectors exhibit distinct preferences for titanium bar configurations based on their unique manufacturing requirements and component specifications. These sector-specific considerations influence procurement strategies across major titanium-consuming industries.

Aerospace applications typically favor specific configurations:

• Structural components: Hex bars for bracket and fitting manufacturing
• Rotating assemblies: Round bars for shaft and bearing applications
• Fastener production: Round bars for bolt and pin manufacturing

Medical device manufacturing shows similar pattern differentiation. Surgical instruments often utilize hex bar stock for ergonomic handle sections, while implant components frequently require round bar starting material for cylindrical geometries.

Chemical processing industry requirements include:

• Heat exchanger components: Round bars for tube and pipe fittings
• Reactor vessel hardware: Hex bars for flange and mounting bracket production
• Pump assemblies: Configuration depends on specific component geometry

Oil and gas exploration equipment demonstrates mixed requirements. Downhole tools frequently specify round bar stock for rotating equipment, while surface facility components may benefit from hex bar material utilization advantages.Automotive performance applications increasingly specify titanium bars for weight reduction initiatives. Engine components typically require round bar stock, while suspension and chassis components may utilize either configuration depending on design requirements.If you need components for rotating assemblies or cylindrical geometries, then round bars align better with automotive and aerospace specifications.

Quality Standards and Certification Requirements

ASTM B348 specifications apply uniformly:

• Chemical composition requirements remain identical
• Mechanical property minimums show no configuration-based variations
• Testing frequency and sampling protocols maintain consistency

AS9100 aerospace quality management systems treat both configurations equally under material traceability requirements. Mill test certificates provide identical data regardless of bar geometry, including heat lot identification and property verification results.

ISO 13485 medical device requirements include:

• Material biocompatibility verification
• Surface finish documentation
• Dimensional tolerance confirmation
• Certificate of compliance provision

Quality control testing procedures adapt to accommodate geometric differences. Round bar testing typically utilizes standard tensile specimen machining, while hex bar testing may require additional setup considerations for proper specimen orientation.

Third-party testing capabilities vary by laboratory:

• Ultrasonic inspection: Both configurations accommodate standard procedures
• Dimensional verification: Hex bars require specialized measurement protocols
• Surface quality assessment: Round bars offer more standardized evaluation methods

Traceability documentation remains consistent between configurations. Both hex and round bars receive identical mill test certificates, material safety data sheets, and compliance documentation required for regulated industries.If you need streamlined quality verification processes, then round bars typically offer more standardized testing and measurement protocols.

Expert Procurement Recommendations

Selecting the optimal titanium bar configuration requires careful evaluation of your specific manufacturing requirements, cost objectives, and quality standards. These recommendations guide procurement professionals toward informed decision-making processes. Titanium Hex Bar

Component geometry analysis should drive initial selection:

• Predominantly flat surfaces: Hex bars reduce machining time and material waste
• Cylindrical features: Round bars eliminate unnecessary material removal
• Mixed geometries: Evaluate primary feature requirements and production volumes

Manufacturing volume considerations include:

• High-volume production: Configuration choice significantly impacts total cost
• Prototype development: Round bars offer greater supplier availability and shorter lead times
• Custom applications: Material utilization efficiency becomes primary consideration

Supplier capability assessment remains critical:

• Hex bar availability: Limited supplier base may affect delivery schedules
• Round bar sourcing: Broader supplier network provides competitive pricing options
• Quality certification: Verify supplier compliance with industry-specific requirements

Lead time planning differs by configuration:

• Standard round bars: 2-4 week delivery typical
• Hex bar production: 4-6 week delivery common
• Custom dimensions: Both configurations require extended manufacturing schedules

Risk mitigation strategies should account for configuration-specific supply chain considerations. Round bar availability typically offers greater supply security, while hex bar sourcing may require backup supplier development.If you need balanced performance across cost, availability, and manufacturing efficiency, then round bars provide more versatile procurement options for most applications.

Conclusion

Choosing between titanium hex bars and round bars ultimately depends on your specific manufacturing requirements, component geometry, and cost optimization goals. Hex bars excel in applications requiring flat surfaces, angular features, and maximum material utilization, while round bars offer superior availability, standardized processing, and consistent surface finishes. Both configurations deliver titanium's exceptional performance characteristics including outstanding strength-to-weight ratios and corrosion resistance. Successful procurement requires careful evaluation of manufacturing volumes, supplier capabilities, and total cost considerations rather than focusing solely on initial material pricing. Partner with experienced titanium suppliers who understand these nuanced requirements and can provide technical guidance tailored to your industrial applications.

Partner with MICRO-A for Premium Titanium Hex Bar Solutions

MICRO-A stands as your trusted titanium hex bar manufacturer, delivering precision-engineered solutions that meet the most demanding industrial specifications. Our advanced manufacturing capabilities in Baoji, China's titanium hub, ensure consistent quality and competitive pricing for your bulk procurement requirements. With ISO 13485, AS9100, and ISO 9001 certifications, we guarantee materials that exceed aerospace and medical device standards while maintaining full traceability throughout our supply chain. Contact our technical team at mayucheng188@aliyun.com to discuss your specific titanium hex bar requirements and discover how our customization capabilities can optimize your manufacturing processes.

References

1. Boyer, R., Welsch, G., & Collings, E.W. (2018). Materials Properties Handbook: Titanium Alloys. ASM International Press.

2. Lütjering, G., & Williams, J.C. (2019). Titanium Engineering Materials and Manufacturing Processes. Springer Materials Science Series.

3. American Society for Testing and Materials. (2020). ASTM B348-20: Standard Specification for Titanium and Titanium Alloy Bars and Billets. ASTM International.

4. Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. (2017). Titanium and Titanium Alloys: Fundamentals and Applications. Industrial Materials Research Institute.

5. Aerospace Material Specification AMS 4928J. (2019). Titanium Alloy Bars and Wire, 6Al-4V, Solution Heat Treated and Aged. SAE International.

6. Donachie, M.J. (2018). Titanium: A Technical Guide for Manufacturing and Engineering Applications. Advanced Materials & Processes Institute.
