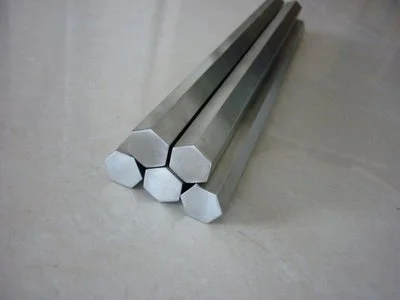

Titanium Hex Bar vs Steel: Which Material Works Best for You?
Choosing between titanium hex bar and steel depends on your specific application requirements. Titanium hex bar offers superior corrosion resistance, exceptional strength-to-weight ratio, and biocompatibility, making it ideal for aerospace, medical devices, and marine applications. Steel provides cost-effectiveness, high availability, and excellent machinability for general industrial use. If your project demands lightweight performance, extreme environments, or precision applications, titanium hex bar delivers unmatched value despite higher initial costs.
Understanding the Fundamental Material Properties
Material determination drives venture victory in mechanical fabricating. Both titanium hex bar and steel have particular characteristics that serve diverse designing challenges. Titanium hex bar shows momentous properties that set it separated from routine materials. With a thickness of 4.5 g/cm³, titanium weighs 45% less than steel whereas keeping up comparable quality. This hexagonal bar setup gives great holding surfaces for machining operations and upgraded auxiliary integrity. Steel keeps up its position as the workhorse of mechanical materials. Carbon steel offers pliable qualities extending from 400–1400 MPa, depending on review and warm treatment. Stainless steel variations give direct erosion resistance whereas keeping up cost-effectiveness.
Key performance differences include:
- Density comparison: Titanium (4.5 g/cm³) versus steel (7.85 g/cm³)
- Corrosion resistance: Titanium forms protective oxide layers naturally
- Temperature performance: Titanium maintains properties at elevated temperatures
- Biocompatibility: Titanium shows excellent tissue compatibility
- Magnetic properties: Titanium remains non-magnetic in all conditions
If you require lightweight components for aviation applications, at that point titanium hex bar demonstrates more reasonable. If your venture prioritizes cost-effectiveness for auxiliary applications, at that point steel offers way better value.
Strength and Durability Comparison
Mechanical properties decide fabric execution beneath operational stresses. Understanding these characteristics makes a difference obtainment masters make educated decisions.
Titanium hex bar strength characteristics:
- Tensile strength: Grade 2 (345 MPa), Grade 5 (895 MPa)
- Yield strength: Grade 2 (275 MPa), Grade 5 (828 MPa)
- Fatigue resistance: Superior performance under cyclic loading
- Operating temperature: Maintains properties up to 600°C
Steel strength performance:
- Carbon steel tensile strength: 400-1400 MPa (grade dependent)
- Stainless steel tensile strength: 500-1200 MPa
- Yield strength varies significantly with alloy composition
- Temperature limitations affect high-temperature applications
Testing data from aerospace certification programs shows titanium maintains 80% of room temperature strength at 300°C, while steel strength decreases by 15-20% at similar temperatures.
Fatigue performance comparison reveals:
- Titanium advantage: Excellent fatigue crack propagation resistance
- Steel considerations: Susceptible to stress corrosion cracking
- Cycle life: Titanium extends component service intervals
- Load distribution: Hexagonal geometry provides uniform stress distribution
If you need components for high-cycle applications, then titanium hex bar delivers superior longevity. If your application involves static loads with infrequent stress cycles, then steel provides adequate performance.
Corrosion Resistance and Environmental Performance
Environmental conditions significantly impact material selection decisions. Corrosion resistance affects maintenance costs, service life, and operational reliability.
Titanium hex bar corrosion advantages:
- Forms protective titanium dioxide layer instantly
- Resists chloride environments completely
- Immune to galvanic corrosion in seawater
- Maintains surface integrity without protective coatings
Steel corrosion characteristics:
- Carbon steel requires protective coatings in corrosive environments
- Stainless steel offers limited resistance to chloride environments
- Galvanic corrosion occurs when coupled with dissimilar metals
- Regular maintenance essential for long-term performance
Laboratory salt spray testing demonstrates titanium shows zero corrosion after 1000 hours exposure, while uncoated carbon steel exhibits 90% surface degradation under identical conditions.
Environmental resistance factors:
- Chemical compatibility: Titanium resists acids, alkalis, and organic solvents
- Atmospheric exposure: No oxidation concerns with titanium
- Marine environments: Superior performance in saltwater applications
- Industrial atmospheres: Titanium unaffected by sulfur compounds
If you need components for chemical processing or marine applications, then titanium hex bar eliminates corrosion concerns. If your environment remains relatively benign with proper maintenance protocols, then treated steel suffices.
Weight Considerations for Industrial Applications
Weight reduction drives efficiency improvements across multiple industries. Understanding weight implications helps optimize system performance.
Titanium weight advantages create measurable benefits:
- 45% weight reduction compared to equivalent steel components
- Reduced foundation requirements for equipment installations
- Lower transportation costs for large assemblies
- Enhanced performance in rotating machinery
Steel weight considerations:
- Higher density increases structural loading
- Requires robust support systems
- Transportation limitations for large components
- Beneficial for applications requiring mass/inertia
Automotive testing shows titanium hex bar components reduce vehicle weight by 30-40% compared to steel alternatives, translating to 5-8% fuel efficiency improvements.
Weight impact analysis reveals:
- Aerospace applications: Every kilogram saved reduces fuel consumption
- Medical devices: Lightweight components improve patient comfort
- Automotive performance: Weight reduction enhances acceleration/handling
- Marine equipment: Reduced displacement improves vessel efficiency
Moving from weight considerations to cost analysis, procurement decisions must balance performance benefits against budget constraints.
Cost Analysis and Long-Term Value
Cost evaluation requires comprehensive lifecycle analysis beyond initial material pricing. Total cost of ownership includes acquisition, processing, maintenance, and replacement expenses.
Titanium hex bar cost structure:
- Higher raw material costs (3-5x steel pricing)
- Reduced machining time due to excellent surface finish
- Minimal maintenance requirements throughout service life
- Extended replacement intervals reduce lifecycle costs
Steel cost advantages:
- Lower initial material acquisition costs
- Established supply chains reduce procurement complexity
- Widespread machining expertise available
- Standard tooling compatibility reduces setup costs
Industrial case studies from aerospace manufacturers show titanium components deliver 20-30% lower total ownership costs over 15-year service periods despite 400% higher initial costs.
Cost comparison factors include:
- Material acquisition: Steel offers immediate cost advantage
- Processing expenses: Similar machining costs for both materials
- Maintenance requirements: Titanium eliminates coating/replacement cycles
- Service life: Titanium components last 2-3x longer than steel
If you need immediate cost optimization with acceptable performance, then steel provides budget-friendly solutions. If your analysis considers long-term operational costs, then titanium hex bar delivers superior value.
Manufacturing and Machinability
Manufacturing considerations affect production feasibility, quality consistency, and delivery schedules. Understanding processing requirements helps plan manufacturing operations.
Titanium hex bar machining characteristics:
- Requires sharp cutting tools and proper cooling
- Excellent surface finish achieved with proper parameters
- Low thermal conductivity demands careful heat management
- Produces clean chips without work hardening
Steel machining advantages:
- Familiar processing parameters across manufacturing facilities
- Wide tool selection available for various operations
- Forgiving machining characteristics accommodate operator variations
- Rapid material removal rates possible
Manufacturing data from precision machining operations shows titanium hex bar achieves surface finishes of 0.2-0.4 μm Ra consistently, while steel typically produces 0.8-1.6 μm Ra under similar conditions.
Processing considerations encompass:
- Tool selection: Titanium requires carbide or ceramic cutting tools
- Cutting parameters: Conservative speeds with high feed rates optimal
- Workholding: Hexagonal geometry provides excellent clamping surfaces
- Quality control: Both materials achieve tight tolerances with proper setup
If you need rapid prototyping with standard equipment, then steel accelerates development timelines. If your application demands superior surface finish and precision, then titanium hex bar excels.
Application-Specific Performance Requirements
Different industries prioritize specific material properties based on operational demands. Understanding application requirements guides optimal material selection.
Aerospace industry requirements favor titanium hex bar:
- Weight reduction critical for fuel efficiency
- Corrosion resistance essential for service life
- Temperature stability required for engine components
- Fatigue resistance necessary for flight safety
Medical device applications benefit from titanium properties:
- Biocompatibility eliminates tissue rejection concerns
- Corrosion resistance ensures implant longevity
- Non-magnetic properties enable MRI compatibility
- Lightweight design improves patient comfort
Oil and gas industry considerations:
- Corrosion resistance critical in harsh environments
- Strength-to-weight ratio important for offshore platforms
- Temperature stability essential for downhole applications
- Fatigue resistance required for dynamic loading
Automotive performance applications:
- Weight reduction enhances acceleration and handling
- Corrosion resistance extends component life
- Strength properties support high-performance requirements
- Aesthetic appeal important for visible components
Industrial equipment manufacturers report 40% longer service intervals using titanium hex bar components compared to steel alternatives in marine environments.
Industry-specific advantages include:
- Chemical processing: Titanium resists aggressive chemical environments
- Marine applications: Saltwater immunity eliminates galvanic corrosion
- Food processing: Titanium meets FDA requirements for food contact
- Nuclear industry: Low neutron absorption supports reactor safety
If your application operates in corrosive environments with weight constraints, then titanium hex bar provides optimal performance. If standard industrial conditions prevail with cost sensitivity, then steel meets requirements effectively.
MICRO-A's Premium Titanium Hex Bar Advantages
MICRO-A Titanium Metals delivers exceptional titanium hex bar solutions from our state-of-the-art facilities in Baoji, China's titanium capital. Our ISO9001, AS9100, and ISO13485 certifications ensure consistent quality for demanding industrial applications.
Manufacturing Excellence:
- 160-ton annual production capacity supports large-scale requirements
- Advanced vacuum furnaces ensure material purity and consistency
- CNC machining centers deliver precise dimensional tolerances
- Grade 2 and Grade 5 (Ti-6Al-4V) materials meet diverse specifications
Quality Assurance:
- Dimensional tolerances: ±0.13mm or customer-specified requirements
- Surface finishes: Mill finish, polished, or customized options
- Standards compliance: ASTM B348, AMS 4928, AMS 4954
- Third-party certifications available for critical applications
Customization Capabilities:
- Dimensions: 6mm to 150mm across flats
- Lengths: Up to 6 meters with custom options available
- Custom alloy development for specialized requirements
- Drawing-based manufacturing for precise specifications
Service Excellence:
- Technical consultation throughout project development
- Sample delivery programs for material validation
- Competitive pricing direct from manufacturer
- Reliable delivery schedules supporting project timelines
Supply Chain Advantages:
- Strategic partnership with Baoti Group ensures material availability
- International export experience supporting global projects
- Comprehensive quality documentation for traceability requirements
- Responsive technical communication in English
Advanced Processing Equipment:
- 50 MN hammering press for superior material properties
- 2500-ton high-speed forging press for complex geometries
- Cold rolling capabilities for precise dimensional control
- Digital machining centers for complex part profiles
Testing and Validation:
- Chemical composition analysis for material verification
- Mechanical property testing ensuring specification compliance
- Dimensional inspection using coordinate measuring machines
- Non-destructive testing capabilities for critical applications
Customer Support:
- Expert technical guidance for material selection
- Application engineering support for design optimization
- Quality assurance programs tailored to customer requirements
- After-sales service ensuring long-term satisfaction
Competitive Advantages:
- Direct manufacturer pricing eliminates distributor markups
- Consistent quality from vertically integrated production
- Rapid response to custom requirements and modifications
- Proven track record serving aerospace, medical, and industrial markets
Logistics and Delivery:
- Multiple shipping options: air freight, sea freight, express delivery
- Packaging designed to protect material integrity during transport
- Documentation support for international shipments
- Delivery tracking and communication throughout shipping process
Conclusion
Material selection between titanium hex bar and steel depends on balancing performance requirements against cost constraints. Titanium excels in applications demanding lightweight construction, corrosion resistance, and long-term durability. Steel provides cost-effective solutions for applications with standard environmental conditions and moderate performance requirements. MICRO-A's comprehensive titanium hex bar solutions support diverse industrial applications with quality assurance, technical expertise, and competitive pricing from our advanced manufacturing facilities.
Expert Material Selection Guidance from MICRO-A
Selecting between titanium hex bar and steel requires careful evaluation of your specific requirements, operating environment, and budget constraints. MICRO-A's experienced engineering team provides comprehensive consultation to optimize your material choice.Our application engineers analyze your project requirements including mechanical properties, environmental conditions, dimensional specifications, and cost objectives. This thorough evaluation ensures material selection aligns with both immediate needs and long-term performance expectations.Contact MICRO-A today at mayucheng188@aliyun.com to discuss your titanium hex bar requirements with our technical specialists. As a leading titanium hex bar manufacturer, we provide customized solutions, competitive pricing, and reliable delivery schedules that support your project success.
References
1. Boyer, R., Welsch, G., & Collings, E.W. (2019). Materials Properties Handbook: Titanium Alloys. ASM International Publishers.
2. Davis, J.R. (2021). Titanium and Titanium Alloys: Fundamentals and Applications. Industrial Press Inc.
3. Leyens, C. & Peters, M. (2020). Corrosion Resistance of Titanium in Industrial Environments. Wiley-VCH Publications.
4. Lutjering, G. & Williams, J.C. (2018). Engineering Properties of Titanium and Its Alloys. Springer Materials Science Series.
5. Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. (2022). Titanium Applications in Industrial Manufacturing. Materials Science and Engineering Review.
6. Rack, H.J. & Qazi, J.I. (2020). Mechanical Properties and Performance of Titanium Hex Bar Components. Journal of Materials Engineering and Performance.
