Can titanium round rods be used in the defense industry?
Without a doubt, titanium round rods have become an important part of making weapons. When it comes to military and defense uses, these precision-engineered cylinder-shaped bars meet all the strict requirements for strength, resistance to rust, and light weight. Titanium round rods are used in places where other metals fail, such as in armored car parts and military hardware that is exposed to harsh sea environments. Because they have been shown to be reliable under a lot of stress and meet aerospace-grade standards like ASTM B348 and AMS 4928, they are a good choice for defense procurement professionals who want mission-critical systems that perform well, last a long time, and don't cost too much over their lifetime.
Understanding Titanium Round Rods and Their Key Properties
What Defines Titanium Round Rods in Industrial Contexts?

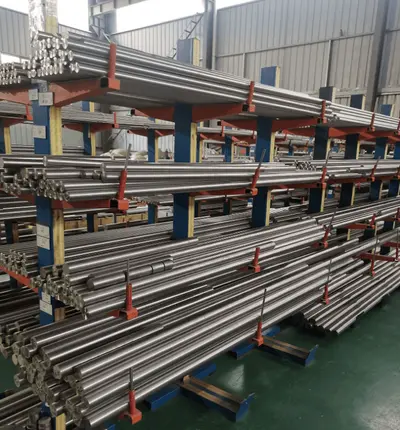

Titanium round rods represent a category of mill products manufactured through hot forging, rolling, and precision grinding processes. These solid cylinder shapes come in sizes from 3 mm to 300 mm and lengths of up to 6 meters. They are made with tight standards from h7 to h9 to make sure they are all the same size. The mechanical structure of the material changes depending on the grade. For industrial purposes, Grade 5 Ti-6Al-4V and Grade 2 commercially pure titanium are the most common. These shapes are highly valued by defense projects because they allow for flexible design that can be CNC machined into complicated geometries while keeping high mechanical integrity throughout the fabrication process.
Critical Properties for Defense Applications
Titanium bars' efficiency is based on a number of linked properties of the material:
• Exceptional Strength-to-Weight Ratio: Grade 5 titanium metal has a tensile strength of over 895 MPa but only 4.43 g/cm³ in density, which is about 60% less than steel. This weight advantage directly leads to more cargo space for military trucks and better fuel economy for defense logistics.
• Corrosion Resistance in Hostile Environments: Titanium naturally makes a stable titanium dioxide (TiO2) passive film, unlike stainless steel, which can split and crack from stress corrosion in chloride-rich environments. This protective layer grows back on its own, even after being scratched. This means that it can be used for a long time in naval uses and coastal defense sites without the need for protective coatings.
• Thermal Stability and Fatigue Endurance: Titanium can work at temperatures ranging from very cold (-253°C) to very hot (400°C) and still keep its shape. Grade 5 metal has better wear resistance when loaded and unloaded many times, which is very important for parts that are stressed over and over again in weapons systems and military aircraft structures.
• Low Thermal Expansion Coefficient: Titanium bars don't change size much when the temperature changes compared to steel because their coefficient is about half that of steel. This helps keep tight tolerances in precision parts like aiming systems and guidance mechanisms.
All of these qualities meet the most important need in the defense industry: materials that work reliably in harsh operating circumstances where failure is not an option.
Industrial Grades and Their Defense Relevance
Grade 2 commercially pure titanium is used for things that need to be very resistant to corrosion and easy to shape, like marine gear and chemical processing equipment on military ships. Its middling strength (yield strength of about 275 MPa) makes it good for non-structural parts that need to be light and resistant to the environment more than they need to be strong.
Grade 5 (Ti-6Al-4V) is the most common metal used in defense, making up about half of all titanium used in the world. It is well-balanced mechanical properties—high strength, good fatigue resistance, and the ability to be heated—make it perfect for structural bolts, landing gear parts, and armor plate fittings. Both AMS 4928 aerospace specs and military acquisition standards can be met by this grade.
Grade 9 (Ti-3Al-2.5V) is easier to shape when cold compared to Grade 5, and it is also stronger than commercially pure grades. Defense companies use this alloy to make hydraulic lines, pressure tanks, and other things that need to be formed in complicated ways without affecting the strength of the structure.
Why Titanium Round Rods Are Suitable for the Defense Industry?
Superior Performance Over Conventional Materials
When you compare titanium round rods to other types of defense materials, you can see clear benefits that support your choice of material:
When compared to steel, titanium round rod has the same tensile strength but is much lighter, so it doesn't have the 45% mass penalty that steel parts do. This weight savings trickles down into the design of the system. For example, lighter armor lets you add more protection without making it harder to move, and lighter fasteners add up to big payload wins for big military platforms.
Titanium is much stronger than aluminum alloys that are often used in military uses (Grade 5 titanium has an average strength of 828 MPa, compared to 503 MPa for 7075-T6 aluminum) and can be used safely at temperatures where aluminum fails to maintain its shape. Aluminum can experience galvanic rust when mixed with different metals, which makes upkeep more difficult. Titanium, on the other hand, has a good electrochemical position that avoids this problem.
While stainless steel has some of the same corrosion-resistance properties as other metals, it doesn't do as well in saltwater, where chloride-induced stress corrosion cracking is still a common way for things to break. Because titanium doesn't break down in this way, it is the only material that can be used for important military gear that will be exposed to saltwater spray and immersion.
Defense-Grade Material Specifications
For defense buying, strict material tracking and certification compliance rules must be followed. Titanium bars used in the military must meet the following requirements:
• ASTM B348: As a starting point, ASTM B348 sets the rules for chemical composition, mechanical qualities, and size limits. This standard guarantees stability from batch to batch, which is very important for qualifying the defense supply chain.
• AMS 4928: AMS 4928 (for Grade 5) and AMS 4967 (for Grade 9) set requirements specific to aerospace and military. These include stricter chemistry controls, higher cleanliness standards, and required ultrasonic inspection to find internal cracks that could make a component less reliable.
• AS/EN 9100: AS/EN 9100 certification shows that a provider has quality management systems that are meant to work with aerospace and military manufacturing. These systems make sure that government contracts are followed when it comes to documentation, process control, and ongoing improvement.
Each lot comes with a material test report (MTR) that includes full chemical analysis, mechanical test results, and heat treatment records. These reports set up a chain of accountability from melting the raw materials to delivering the finished product. This paperwork is still necessary for defense companies to check the history of materials while making parts and during military audits that follow.
Machining Considerations for Defense Components
Titanium is hard to machine because it doesn't conduct heat well and reacts quickly with chemicals at high temperatures. Defense providers have to use special techniques to get around these problems. When choosing tools, carbide and ceramic plugs with coolant supply methods that stop heat buildup are often chosen. Feed rates and cutting speeds need to be tweaked so that the surface doesn't get too hard from work, which could leave behind stresses that hurt fatigue performance.
CNC machining centers with rigid tool holders and high-torque wheels make sure that the dimensions are accurate to the h7 tolerances that defense parts need. Post-machining stress reduction heat treatments can be asked for to get rid of any stresses left over from removing material, especially for parts that are used and are exposed to high cyclic loads.
In order to get a bright, pickled, or polished finish that makes non-destructive inspection easier and lowers stress concentration points at surface flaws, centerless grinding or polishing processes are often needed.
Procurement Considerations for Defense Industry Buyers
Certification Requirements and Supply Chain Traceability
Defense procurement teams for titanium round rod have to make sure that suppliers keep their AS/EN 9100 aerospace and defense organization approval up to date. This makes sure that the quality management systems of suppliers meet military standards. ISO 9001 certification is a good way to make sure of quality, but it doesn't have the specific limits that defense apps need. Material certifications should include mill test reports that show the chemical composition was checked using spectrographic analysis, the mechanical properties were checked using standard tensile testing according to ASTM E8, and the results of non-destructive testing like ultrasonic or radiographic inspection were used to find flaws inside the material. Traceability goes beyond material properties and includes identifying heat lots. This lets defense companies connect the performance of a part in service to the conditions used when it was first made.
Evaluating Global Suppliers and Regional Capabilities
Titanium is supplied by companies in North America, Europe, and Asia. Each one has its own set of skills and rules it has to follow. American providers often put defense-grade certifications at the top of their list of priorities and keep their security clearances up to date, which makes it easier to work on secret military projects. European makers have a long history in the aerospace industry and follow world quality standards. Asian suppliers, especially those based in Baoji, China, take advantage of being close to sources of raw materials and having combined manufacturing skills. XI'AN MICRO-A Titanium Metals Co., Ltd., founded in 2017 in Baoji, is an example of an integrated supply chain. The business has key relationships with Baoti Group and uses factories with 50 MN hammering presses, 2500-ton high-speed forging presses, and advanced CNC machine centers to deliver titanium round rods compliant with ASTM B348, AMS 4928, and AS/EN 9100.
Cost-Value Analysis for Defense Procurement
Titanium is more expensive than steel and aluminum, but lifetime cost analysis shows that it has strong value propositions for military uses. The initial prices of materials and manufacturing are balanced out by shorter repair gaps, no need for protective coatings, longer service life in corrosive environments, and weight saves that lead to lower fuel use over the life of the equipment. Buyers in the defense industry should look at the total cost of ownership of a seller instead of just the unit price. Some of the things that are looked at are the supplier's technical support, their ability to meet delivery dates that are in line with military production timelines, their desire to work with custom material specs, and their ability to increase production to meet large contract volumes.
Bulk Ordering and Customization Capabilities
Military contracts for titanium round rod usually involve large amounts of materials that have to meet certain size and quality standards. Suppliers must show that they can handle large orders and keep quality the same across all production lots. Minimum order numbers (MOQs) are different for each seller and product. Standard sizes usually have lower MOQs than custom dimensions. Customization services include precision diameter grinding to very tight standards, custom length cutting, surface finish treatments, and changes to the mechanical properties through heat treatment. For defense projects, materials often need to be machined to exact specs from drawings, requiring CNC machines and quality checking tools like coordinate measuring machines (CMMs) and optical comparators. Global logistics networks ensure the supply of materials matches the plans for making defense products.
Case Studies: Titanium Round Rods in Defense Applications
Military Vehicle Structural Components
A major defense firm working on the next generation of armored personnel carriers had trouble finding the right balance between armor protection and truck mobility. Traditional steel plate connection points added a lot of weight, which limited the range of operations and made it harder to move. Engineers cut the weight of non-armor structural parts by 40% by using Grade 5 titanium round rods that were machined into high-strength bolts and structural braces. This saved mass, which let thicker ceramic armor plates be added without going over the weight limits for the car. This improved crew safety while keeping tactical movement. The titanium fasteners showed better fatigue resistance in rapid durability tests that mimicked tough working settings, proving the choice of material for production cars was right.
Naval Corrosion-Resistant Hardware
Naval ships that work in saltwater have long-term problems with corrosion that affect their engine systems, deck equipment, and tools for placing sensors. A big military shipyard looked at different materials for propeller shaft retention gear that would be immersed in seawater all the time and load-tested by propeller power. Within 18 months of service, the first stainless steel parts started to crack from stress rust, which meant they had to be replaced at regular repair intervals. Switching to Grade 2 commercially pure titanium bars machined into shaft retention nuts and locking devices eliminated failures caused by rust. After five years of service tracking, titanium hardware showed no measurable corrosion or changes in size, reducing lifecycle costs by about 60% compared to stainless steel options.
Lessons from Defense Manufacturing Leaders
Defense makers always say that involving suppliers early on in the planning process improves the performance of titanium parts. When choosing materials together, taking into account things like strength needs, weather exposure, and machineability limits can help avoid expensive redesigns during production approval. Quality assurance rules must include more than just inspecting new materials when they come in; they must also include process controls during cutting and assembly. When defense companies do supplier audits to make sure they follow AS/EN 9100 and look at their manufacturing skills, material-related production delays happen less often. You can't say enough about how important it is to keep good records. Full material traceability and certification records are needed for government checks and when looking into rare component breakdowns.
Conclusion
In defense uses where material dependability has a direct effect on task success and personnel safety, titanium round rods have been shown to work well. Their high strength-to-weight ratio, resistance to rust, and resistance to fatigue make them perfect for tough situations that regular materials can't handle. People who work in defense buying can get more done when they work with approved suppliers that follow AS/EN 9100 standards and have advanced manufacturing skills. Titanium has benefits beyond its technical performance. It also has lower lifecycle costs due to less upkeep, longer service life, and operating flexibility. Titanium bars are still a key material choice for next-generation military powers, even though defense systems are moving toward lighter, more durable platforms.
FAQ
Can Titanium Round Rods Withstand Extreme Defense Environments?
Titanium round rods work great in the harsh situations that come up in defense missions. It is possible for Grade 5 metal to keep its shape at temperatures as low as -253°C in high-altitude uses and as high as 400°C near rocket systems. There is a natural oxide layer on the material that protects it from corrosion in sea, chemical conditions, and dry sand. Fatigue testing shows that the material works reliably even after millions of cycles of loading, proving that it is suitable for use in dynamic defense applications like weapons systems and car suspension parts.
How Do Titanium Round Rods Compare Cost-Effectively Against Steel?
Titanium has higher initial material prices, but military lifecycle analysis shows that it has big cost benefits. When you lower the weight of something, it uses less fuel over its whole life. Corrosion resistance gets rid of the need for protection coatings and increases the time between servicing visits. Longevity of components lowers the cost of new parts and lowers the amount of time that important military assets are down. Total cost of ownership estimates usually show that the technology pays for itself in the first third of its useful life, and then it keeps saving money after that.
What Certifications Verify Titanium Round Rod Quality for Defense Use?
Defense-grade titanium must meet the requirements set out in ASTM B348 for chemical makeup and mechanical qualities. If you use AMS 4928 (Grade 5) or AMS 4967 (Grade 9), you can add quality controls for aircraft and the military. The AS/EN 9100 certification of the supplier shows that the quality control systems meet the standards for military manufacturing. Material test records that include chemical analysis, tensile qualities, and the results of non-destructive testing make it possible to track materials, which is very important for military use.
Partner with MICRO-A for Defense-Grade Titanium Round Rod Supply
XI'AN MICRO-A Titanium Metals Co., Ltd. is ready to help you meet your defense buying needs by providing you with approved, high-performance titanium round rods. Our strategic relationship with Baoti Group, AS/EN 9100 approval for aerospace and defense, and ISO 13485 compliance for medical systems all make sure that your projects get the quality materials and reliable supply chains they need. We make titanium bars that meet ASTM B348, AMS 4928, and special military standards. Our factories have forging presses that can hold 2,500 tons, precision CNC machining centers, and strict quality control procedures. Our research team can help you choose the best materials, whether you need Grade 2 commercially pure titanium for military uses that need to be resistant to corrosion or Grade 5 alloy for high-strength structure parts. Email us at mayucheng188@aliyun.com to talk about the needs of your security project. You can ask for samples with full testing reports, get reasonable quotes for large orders, and experience the quick service that makes MICRO-A a trusted supplier for defense makers around the world. Visit micro-atitanium.com to see all of our products and learn more about how we can make them.
References
Boyer, R., Welsch, G., & Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.
Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International.
Peters, M., Kumpfert, J., Word, C.H., & Leyens, C. (2003). "Titanium Alloys for Aerospace Applications." Advanced Engineering Materials, 5(6), 419-427.
U.S. Department of Defense. (2015). Military Specification MIL-DTL-81915: Titanium and Titanium Alloy Bars, Rods, and Wire.
ASTM International. (2020). ASTM B348-20: Standard Specification for Titanium and Titanium Alloy Bars and Billets.
Froes, F.H. (2015). Titanium: Physical Metallurgy, Processing, and Applications. ASM International.
