Choosing The Right Titanium Round Bar Grade
Choosing the right type of titanium round rod has a direct effect on how well the product works, how much it costs, and how well it meets regulations in many important businesses. There are many alloys to choose from, ranging from commercially pure Grade 2 to high-strength Grade 5 (Ti-6Al-4V). This makes it hard for procurement managers to make decisions that are good for both mechanical qualities and corrosion protection while also meeting the needs of specific applications. This guide teaches expert buyers how to compare grades against industry standards such as ASTM B348 and AMS 4928. This way, buyers can be sure that the materials they choose meet the needs of industries like flight, medicine, chemical processing, and heavy machinery. By knowing these differences, you can avoid expensive design mistakes and delays in the supply chain.
Understanding Titanium Round Rod Grades and Their Properties

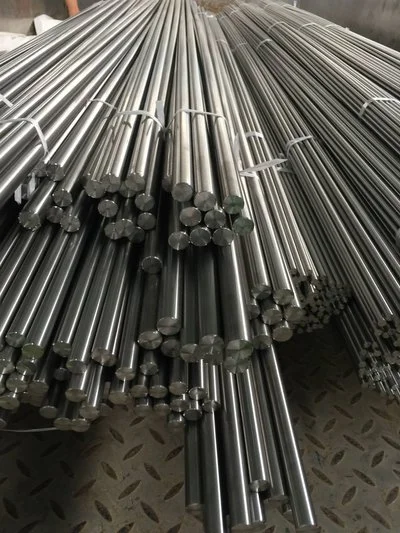

Titanium round rods are precisely made cylindrical goods that come in diameters from 3 mm to 300 mm and lengths of up to six meters. To get tight limits between h7 and h9, which are necessary for CNC cutting and part assembly, these materials are processed in complex ways, such as by vacuum melting, hot forging, and centerless grinding.
Common Industry-Standard Grades and Their Defining Characteristics
Grade 2 commercially pure titanium is very resistant to corrosion and has a middling strength (345 MPa yield strength). This makes it a good choice for chemical processing equipment and naval gear that needs to last without being put under a lot of mechanical stress. Because it can be shaped, it can be cold worked and welded, but not as well as alloyed versions when it comes to tensile strength.
Grade 5, also called Ti-6Al-4V, is used a lot in aircraft and high-performance uses because it has a tensile strength of over 895 MPa and a density of only 4.43 g/cm³. At temperatures up to 400°C, this alpha-beta metal keeps its shape and has a strength-to-weight ratio that is better than most steels. The mix of 6% aluminum and 4% vanadium makes it easier to heat treat. Solution treatment and aging can be used to get the best hardness, which is 30–34 HRC.
Palladium increases (0.12-0.25%) make Grade 7 more resistant to reducing acids and crack corrosion, which is important in chemical reactors and purification systems. It can also be used in some medical situations because it is biocompatible, but Grade 23 (TC4ELI) is still better for implants because it has less interstitial material.
Manufacturing Processes Affecting Material Performance
The first step in the production process is vacuum arc remelting (VAR) or electron beam melting, which gets rid of any flaws and makes sure the grain is uniform. Forging tools like 2,500-ton hydraulic presses are used on ingots more than once. This improves the grain structure and gets rid of any internal holes found by ultrasound testing in line with AMS 2631 standards.
The final size requirements are met by hot rolling and then cold finishing. Bright annealing, pickling, or polishing are used to achieve surface roughness values below Ra 0.8μm for precision parts. Different grades need different heat treatment methods. Grade 5 needs solution annealing at 955°C followed by aging at 540°C, while Grade 2 only needs stress-relief annealing.
Certifications Ensuring Material Traceability and Quality
ASTM B348 sets standards for the chemical make-up and mechanical properties of bar stock. It says the highest amounts of oxygen, nitrogen, and hydrogen that can be present in the interstices and affect how flexible and hard they are to break. For aerospace uses, AMS 4928 for forged Ti-6Al-4V bars requires material test records (MTRs) that show the chemistry, tensile properties, and ultrasonic inspection data for each lot.
For surgery implants, medical-grade materials must meet ASTM F136, which calls for extra-low interstitial (ELI) versions with hydrogen contents below 0.015% to avoid delayed embrittlement. ISO 13485:2017 certification proves that quality systems in manufacturing meet the needs of the healthcare business, and AS/EN 9100 certification talks about standards for the aircraft supply chain.
Comparing Titanium Round Bars With Other Metal Rods for Procurement Decisions
Material selection goes beyond titanium's status as a high-end material to include comparing its performance to that of other metals. Lifecycle cost modeling and functional reliability studies can help buyers explain titanium round rod investments by helping them understand these trade-offs.
Titanium Versus Stainless Steel in Critical Applications
Titanium is 45% lighter than 316 stainless steel while still having the same amount of strength. This means that it can save fuel in aircraft structures and make rotating machines less inert. Even though stainless steel costs less per kilogram at first, titanium doesn't rust, so it doesn't need to be coated or replaced as often in marine settings where chloride pitting breaks down austenitic steels.
Titanium naturally makes a safe TiO2 oxide layer that grows back when it gets broken. Stainless steel, on the other hand, is made of chromium oxide films that can break down in reducing acids or high-temperature oxidizing conditions. This ability to self-passivate is very important in systems that concentrate sulfuric acid and make chlorine, where stainless steel options tend to crack from stress corrosion.
Performance Trade-Offs With Aluminum and Carbon Steel
Aluminum alloys, such as 7075-T6, are less dense than titanium, but they lose strength at high temperatures and resistance to rust in saltwater. Their thermal expansion rate is 30% higher than titanium's, which makes precision structures that are heated and cooled unstable in terms of their shape. Titanium has a modulus of elasticity (114 GPa) that is in the middle of aluminum (70 GPa) and steel (200 GPa). This means that it is stiff enough for structural uses without being too heavy.
Carbon steel has a low cost tensile strength but corrodes quickly without protection coatings, making upkeep harder in wet or chemically active places. Its density of 7.85 g/cm³ makes it less useful in designs that need to be light, and medical implants can't be made from it because it doesn't work with living things. Lifecycle research shows that titanium's longer service life and lower energy use during operation often make up for its higher initial costs over ten years of use.
Specialized Comparisons With Nickel Alloys
Nickel superalloys, such as Inconel 718, work best in high-temperature situations above 600°C, where titanium oxidizes. This makes them ideal for gas engine hot sections. But titanium is mostly used for aircraft structures and compressor stages, where temps stay cool and weight saves lead to measured performance gains.
Titanium is stronger than many nickel metals and doesn't crack easily when exposed to hydrogen sulfide, making it a better choice for downhole oil and gas tools. Nickel has better creep resistance than corrosion resistance and crack hardness at temperatures below 150°C, which are more important in these situations.
Selecting the Best Titanium Round Bar Grade for Your Industry Needs
When you match the features of a material to the needs of an application, you avoid either over-specification, which raises costs, or under-specification, which increases the risk of failure too soon. Based on verified performance data, industry-specific standards make it easier to choose a titanium round rod grade.
Aerospace Component Requirements and Grade 5 Superiority
Materials that can survive cycle fatigue loads at temperatures ranging from -54°C at high altitude to 400°C near engines are needed for aircraft structural members, landing gear parts, and hydraulic actuator shafts. The high fatigue limit and fracture toughness of Grade 5 keep cracks from spreading even when stress is reversed many times, which means it meets strict airworthiness requirements.
Fasteners made from titanium round rod that meet AMS 4928 standards keep their preload integrity through temperature cycles without letting stress relax, which is very important for the durability of the joint. The metal is easy to machine and can be threaded. It is also flexible enough (10% elongation minimum) to handle the pressures of assembly without breaking easily.
Medical Implant Standards Favoring Grade 23 ELI
For orthopedic devices like hip stems and spine fixation rods, Grade 23 (Ti-6Al-4V ELI) that meets ASTM F136 is needed. This grade limits interstitial oxygen to 0.13% at most, which makes the material more flexible when it's being loaded over and over again. The modulus of the material is very close to that of cortical bone (18–20 GPa), which means that it doesn't create as much stress buffering, which is what breaks down bone around stronger metal implants.
When something is completely biocompatible, the immune system doesn't react against it, and the passive oxide layer joins with bone tissue through processes called osteointegration. Manufacturers must provide full lot tracking and sterility certification, along with ISO 13485:2017 quality management documents to make sure that all foreign markets follow the rules.
Chemical Industry Applications Demanding Enhanced Corrosion Protection
Grade 7's palladium increase helps keep the oxide film stable in reducing conditions, which is good for valve stems, pump shafts, and heat exchanger tubes in chlor-alkali plants or sulfuric acid processing. To get ten-year service intervals, equipment that works with hot brine or salty chloride solutions needs to meet this standard.
Grade 2 is used in industrial reactors that handle organic acids or bleaching agents because it has good corrosion resistance at low costs and works well at pH levels between 2 and 12, as long as chloride amounts stay low. The choice of material takes into account the temperature at which it will be used, the differences in concentration, and the possibility of pollution from ferric ions that speed up localized attack.
Practical Procurement Considerations for Titanium Round Rods
To successfully source materials, you need to find a balance between scientific requirements and the supplier's skills, price structures, and the coordination of logistics. Strategic buyers come up with evaluation systems for titanium round rods that go beyond just getting prices.
Supplier Qualification and Certification Verification
Third-party checks that prove AS/EN 9100 aircraft quality systems and ISO 9001 foundational management practices are how reputable makers show they are following the rules. Each package must have a material test report that includes information on the chemistry using spectrographic analysis, the tensile qualities from standard specimens, and the interior soundness confirmed by ultrasonic inspection records.
Facility checks that look at melting equipment (vacuum arc furnaces), forging capacity (press mass and stroke length), and heat treatment capabilities (uniform furnace temperature and atmosphere control) are all part of the supplier assessment process for titanium round rod. Production flow ability is important for large orders that need to be delivered on time without sacrificing quality when production is rushed.
Dimensional Specifications and Tolerance Management
Centerless grinding can achieve tight circle tolerances (h7: +0/-0.018mm for 10mm bars) for precision uses. On the other hand, general machining stock can handle h9 tolerances (+0/-0.030mm). Standard cuts usually have length limits of +10mm/-0mm, but smaller bands can be made to fit specific needs.
For welding prep, the surface finish must be pickled (Ra 3.2μm), and for biological parts, it must be polished (Ra 0.4μm). For CNC turning, straightness tolerances of 1 mm per meter keep problems from happening, and ovality measures make sure that the same amount of material is removed during face cuts.
Pricing Factors and Volume Discount Structures
The prices of raw materials change with the prices of titanium sponge, but for common grades, they usually make up 40 to 50 percent of the value of the final bar. Tight tolerances, special heat treatments, or non-standard sizes that need custom machine sets raise the cost of processing.
When you make a volume promise, you can get tiered prices. Usually, there are breaks at 500 kg, 2000 kg, and 5000 kg quantities, where production efficiencies lower the cost per unit. Annual buying deals keep prices stable when the prices of commodities change, and they also make sure that inventory is allocated when supplies are low. Custom cutting services reduce waste by providing project-specific lengths, which makes up for slightly higher per-kilogram rates by producing less scrap.
Logistics and Lead Time Planning
Standard diameter bars (10–50 mm) in Grade 2 or Grade 5 ship within two to four weeks from reputable sources who keep stock on hand. For custom sizes, it takes 6 to 10 weeks, which includes plans for melting, casting, and finishing. For interstitial testing and licensing paperwork, medical-grade ELI material adds two to three weeks.
When sending titanium from places like Baoji, China, to other countries, the type of shipping used depends on how quickly the shipment needs to get there and how big the order is. Buyers choose Incoterms (FOB, CIF, DDP) that work best for their shipping needs, taking into account the customs handling needs for materials with two uses that are subject to export rules in some places.
Conclusion
When buying strategic titanium round rods, you have to weigh the properties of each grade against the needs of the application, the skills of the seller, and the total cost of ownership. Grade 2 is a cost-effective way to protect against corrosion in most situations, while Grade 5 is the standard for high-strength aircraft and performance car uses. Grade 23 ELI is required for biocompatibility and flexibility in medical devices. Buyers who are good at their jobs check that the seller has the right certifications, set tolerances that match the manufacturing process, and make volume promises that keep the supply chain stable. When you work with qualified makers who offer full testing, custom fabrication, and quick technical support, you can turn buying materials from a transactional activity into a strategic competitive edge.
FAQ
Which titanium grade offers the highest strength for round bars?
Grade 5 (Ti-6Al-4V) titanium round rods are the strongest ones that are easy to find. Their tensile strength is over 895 MPa and their yield strength is around 828 MPa. This alpha-beta alloy is the usual choice for aircraft structural parts and high-performance industrial uses that need the highest strength-to-weight ratios because it doesn't fatigue easily and keeps its mechanical qualities at temperatures up to 400°C.
How does titanium corrosion resistance compare to stainless steel?
Titanium creates an inactive layer of titanium dioxide (TiO2) that heals itself and stays stable over a wider pH range and higher chloride concentrations than the chromium oxide film that forms on stainless steel. In seawater and acidic chloride environments, 316 stainless steel pits and crevices corrosion, but titanium stays immune. This means that it doesn't need to be coated and can last longer in marine, chemical processing, and offshore applications where lifecycle costs are better for titanium despite a higher initial investment.
What are typical lead times for custom titanium bar orders?
Standard sizes and popular grades ship within two to four weeks from sources who keep stock on hand. Custom diameters, non-standard lengths, or special heat treatments take 6 to 10 weeks to complete, which includes planning production, forging operations, and finishing steps. For extra-low interstitial approval and paperwork, medical-grade products add two to three weeks. Planning when to buy things around these dates keeps projects from being late, especially when working with when to do the cutting and when to put the parts together.
Partner With MICRO-A for Precision Titanium Round Rod Supply
XI'AN MICRO-A Titanium Metals is ready to support your next project with complete material solutions for titanium round rods backed by certifications from AS/EN 9100 for aircraft and ISO 13485:2017 for medical use. Our Baoji plant has forging presses that can hold 2,500 tons, vacuum melting systems, and precise grinding tools that make bars with diameters ranging from 3 mm to 300 mm in Grade 2, Grade 5, and special metals that meet ASTM B348 and AMS 4928 standards. We keep margins between h7 and h9 by centerless grinding and sending test reports on the materials along with every package. Whether you need prototype samples or large orders of more than a few tons, our expert team can customize based on drawings, offer CNC pre-machining services, and speed up logistics to cut down on your wait times. Contact mayucheng188@aliyun.com today for detailed quotations from a trusted manufacturer committed to quality and competitive pricing. Visit micro-atitanium.com to explore our complete product catalog and certification documentation.
References
Boyer, R., Welsch, G., & Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International, Materials Park, Ohio.
Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International, Materials Park, Ohio.
ASTM International. (2021). ASTM B348-13: Standard Specification for Titanium and Titanium Alloy Bars and Billets. West Conshohocken, Pennsylvania.
Lutjering, G., & Williams, J.C. (2007). Titanium, 2nd Edition. Springer-Verlag, Berlin Heidelberg.
SAE International. (2018). AMS 4928: Titanium Alloy Bars, Wire, Forgings, Rings, and Drawn Shapes 6Al-4V Annealed. Warrendale, Pennsylvania.
Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. (2003). Titanium Alloys for Aerospace Applications. Advanced Engineering Materials, Volume 5, Issue 6, Wiley-VCH.
