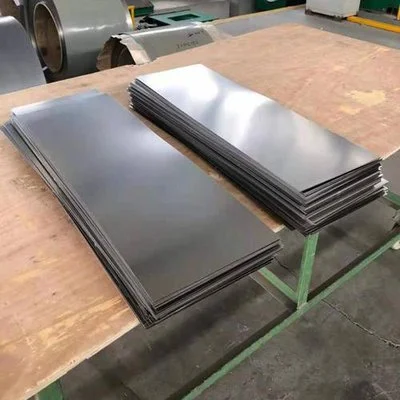

Discover Premium ASTM B265 Titanium Sheets for Demanding Applications
The ASTM B265 titanium sheet is a standard specification that is recognized in the aircraft, chemical processing, medical device manufacturing, and marine engineering industries when looking for high-performance materials for important industrial uses. This standard covers flat-rolled products made from commercially pure titanium and titanium alloy. These products have great corrosion protection, strength-to-weight benefits, and accurate measurements. At XI'AN MICRO-A Titanium Metals, we use advanced cold rolling techniques to make sheets that meet ASTM B265 standards. Our grades range from commercially pure Grade 1 to high-strength Grade 5 Ti-6Al-4V, and they can be customized to meet your needs. Our dedication to strict quality control and approved production skills makes sure that procurement teams get materials that meet the highest standards for aerospace while still keeping costs low, which is important for big industrial projects.
Understanding ASTM B265 Titanium Sheet Specifications and Standards
As the world's standard for material consistency in tough conditions, the ASTM B265 titanium sheet guideline sets out all the technical requirements for titanium strip, sheet, and plate goods. This standard fixes major problems in the industry that have to do with how reliable materials are by putting strict limits on the amount of oxygen, nitrogen, and hydrogen that can be found between materials. This stops materials from breaking down too soon because hydrogen weakens them or makes them less flexible. The standard divides products into groups based on their thickness. For example, sheets that are less than 0.1875 inches thick are separated from plates that are 0.1875 inches thick or more. This makes it easier for foreign supply chains to meet procurement requirements.
Key Mechanical Properties Across Grades
There are big differences in how well different types of alloys and commercially pure grades work mechanically. Commercial grade 2 titanium has a tensile strength of 50,000 to 65,000 psi and a stretch property of more than 20%. This makes it perfect for chemical processing equipment that needs to be very easy to shape. When annealed, Grade 5 Ti-6Al-4V alloy has a tensile strength of over 130,000 psi, which makes it useful for holding structural aircraft parts where weight reduction is important without sacrificing load-bearing capacity. These differences in performance help procurement experts match material grades to specific application needs, keeping mechanical strength and manufacturing costs in mind.
Chemical Composition Requirements
ASTM B265 says that each grade must have a certain chemical makeup, which affects how well it resists rust and how long it lasts. Grade 1 limits the amount of iron to 0.20% and the amount of oxygen to 0.18%. This gives it the best protection to reacting acids and chlorides. Grade 7 has 0.1 to 0.25% palladium added, which makes it more resistant to reducing acids and extends its useful life in harsh chemical handling situations. When engineers know about these differences in elements, they can choose materials that won't fail in the worst situations while also keeping costs low across all production levels.
Customizable Dimensions and Tolerances
At MICRO-A, we can cold roll sheets that are between 0.3mm and 50mm thick, 500mm to 2000mm wide, and 6000mm long. These size groups can be used to make a wide range of parts, from thin skin panels for spacecraft to thick heat exchanger plates. Our production methods strictly follow ASTM B265 dimensional tolerances, which makes sure that the tubes are flat, which is important for tube sheet uses where proper sealing stops leaks in pressure tank systems. Our quick technical team can help with custom size requests, so you can get materials that are exactly the same as the engineering plans without having to waste a lot of time cutting sheets to size.
Comparing ASTM B265 Titanium Sheets with Other Materials and Standards
Understanding the differences in performance and cost between different types of titanium and other materials is very helpful when making procurement decisions. These examples show when high-quality ASTM B265 titanium sheets give a clear return on investment and when other materials are sufficient.
Grade 5 Titanium Alloy vs. Commercially Pure Grades
Grade 5 Ti-6Al-4V titanium sheet is the most common titanium alloy used around the world. It has about twice the tensile strength of Grade 2 economically pure titanium. This strength advantage lets part weights go down in aircraft structures and car suspension parts that need to be resistant to fatigue under repeated loads. However, commercially pure grades still have better cold formability and weldability, which lowers the cost of making complex shapes for chemical handling tanks. The price difference between these grades is usually due to the addition of aluminum and vanadium alloys. Grade 2 commercially pure material is good for uses with a lot of surface area that only need reasonable strength.
Titanium Sheets Versus Stainless Steel
Austenitic stainless steels like 316L are not as resistant to rust as titanium sheets. In chloride-containing conditions, titanium sheets perform much better than stainless steels. Titanium naturally creates a stable, self-healing oxide layer that stops pitting and cavity rust in saltwater environments, where stainless steel breaks down more quickly. Titanium's lower density (4.5 g/cm³ vs. 8.0 g/cm³ for stainless steel) means that marine structures made of it can be 40% lighter, which means that military ships and offshore bases can use less fuel. Titanium is more expensive than stainless steel, but it lasts longer and needs less upkeep, so the investment is worth it in harsh service settings over the course of its lifecycle.
ASTM B265 vs. Aerospace Standard AMS 4928
The AMS 4928 standard covers Grade 5 titanium sheet that is used in aircraft. It goes beyond ASTM B265 and adds stricter controls over the metal's chemistry and requires ultrasonic testing for any internal breaks. To meet FAA and EASA airworthiness requirements, procurement teams that define materials for certified airplane parts must follow AMS 4928. ASTM B265 Grade 5 material works well in non-aerospace uses and doesn't cost as much to certify. It can be used for medical implants, car parts, and industrial equipment where aerospace traceability standards don't apply. By understanding these changes in specifications, you can avoid over-specification, which raises prices for materials without adding any functionality.
Premium Applications of ASTM B265 Titanium Sheets in Demanding Industries
ASTM B265 titanium sheets that meet the requirements of ASTM B265 can be used in a wide range of important situations where failure of the material could have serious safety and cost effects. These real-world examples show that the system works well even in the worst operating circumstances.
Aerospace and Aviation Components
Grade 5 titanium sheets are used by aircraft makers for parts like wing skins, fuselage sections, and landing gear pieces because they are very strong for their weight. The material keeps its shape at all temperatures, from cryogenic fuel systems to high-temperature exhaust parts. This makes the plane lighter while still meeting the standards for fatigue life of more than 30,000 flying cycles. Titanium is resistant to stress corrosion cracking, which helps engine nacelle parts work better in salty coastal settings. This means that business fleets can go longer between inspections and save money on upkeep costs.
Chemical Processing and Marine Environments
For reactor tanks, heat exchanger tube sheets, and pipe systems that deal with corrosive media like sulfuric acid, hydrochloric acid, and chlorine production streams, the chemical process industries need commercially pure titanium grades. Standard grades of titanium rust quickly in acidic environments, but grade 7 titanium improved with palladium lasts longer and works well in those conditions, saving expensive equipment in fertilizer and petrochemical plants. Offshore oil platforms use titanium sheets for fire suppression systems and heat exchanges that are cooled by saltwater. This is because copper-nickel and stainless steel don't have the same problems with galvanic corrosion in tropical seawater.
Medical Device Manufacturing
Biocompatible titanium grades, such as Grade 2 and Grade 23 (extra-low interstitial Grade 5), are used to make orthopedic implants, surgery instruments, and testing tools. The osseointegration qualities of the material allow direct bone attachment for dental implants and hip replacements without causing any negative tissue reactions. It is also compatible with both autoclave and gamma radiation sterilization methods. Medical-grade sheet material goes through more thorough paperwork that meets ISO 13485 standards. This makes sure that the full history of the material is recorded, from making the ingots to putting together the end device.
Automotive and Industrial Equipment
Manufacturers of high-performance cars use ASTM B265 titanium sheet in exhaust systems, suspension parts, and structural supports for racing uses where lowering weight directly raises power-to-weight ratios. Electric car makers are using titanium more and more for battery enclosure panels and heat management systems. Titanium is resistant to corrosion in lithium-ion battery settings and helps manufacturers meet their weight-reduction goals, which are necessary for longer driving range. Titanium is used by companies that make industrial equipment for chemical handling equipment, heat treatment fixtures, and welding jigs because it keeps its shape at high temperatures, which keeps production from being held up by expensive tooling problems.
Procurement Guide: Sourcing ASTM B265 Titanium Sheets for Global B2B Clients
To efficiently buy titanium sheet materials, you need to know what the suppliers can do, how to make sure the quality of the materials, and how to deal with the logistics that affect the total cost of the purchase and the dependability of the production schedule.
Supplier Certification and Quality Assurance
Reputable ASTM B265 titanium sheet makers keep a number of quality certificates that prove how they make their products and that the materials they use are consistent. At MICRO-A, we have ISO 9001 quality management certification, AS9100 aerospace standard compliance, and ISO 13485 medical device manufacturing qualifications. This shows that we can work with a wide range of regulated businesses. Through our relationship with Baoti Group, a major Chinese titanium supplier, we have access to high-quality titanium sponge and ingot feedstock whose chemical makeup can be fully tracked. Each sheet package comes with mill test records that show the results of tensile tests, chemical analysis using optical emission spectrometry, and dimensional proof that shows the sheet meets the required limits.
Pricing Dynamics and Order Volume Considerations
The cost of materials for titanium sheets depends on a number of things, such as the grade chosen, the order amount, the size requirements, and the current market conditions for titanium sponge input. When it comes to big surface area uses, Grade 2 commercially pure material is usually the most cost-effective choice. On the other hand, Grade 5 alloy pricing takes into account the addition of alloying elements and the need for more complex processing. Bulk buying programs save a lot of money by cutting down on setup costs and making better use of production schedules. This is why consolidated yearly contracts are appealing to large buyers. The minimum order numbers depend on the thickness and width requirements. Standard measures have lower MOQs than custom-sized materials, which need their own rolling campaigns.
Lead Times and International Logistics
Standard grade sheets in common sizes usually ship two to four weeks after an order is confirmed. Custom specs, on the other hand, may take six to eight weeks, taking into account the time it takes to handle the materials and check their quality. Our Baoji factory is ideally located near China's titanium production hub. This lets us respond quickly to changes in demand for raw materials and make flexible schedules for production. International goods are packed in wooden cases to protect the surfaces from damage during ocean freight travel. Commercial invoices, packing lists, and material certificates are used to help clear customs. There are choices for air freight that can meet immediate needs, but the largest sheets that can be transported by air are limited by size restrictions.
Custom Fabrication and Value-Added Services
We don't just sell sheets; we also do custom fabrication, which includes precisely cutting to the measurements given by the customer, changing the mechanical qualities through heat treatment, and finishing the surface in a variety of ways, such as mill finish, polish, or chemical etch. Our CNC machining tools allow us to make nearly-net-shape blanks, which cuts down on the waste that customers have to deal with during fabrication. Our technical team also offers design for manufacturability talks to help customers make parts that are the best shape for titanium forming. These skills that add value make customer supply chains easier to manage by combining processing steps with a single qualified provider. This lowers total procurement costs and gets rid of the need to coordinate between multiple suppliers, which can be hard to do.
Why Choose ASTM B265 Titanium Sheets: Key Advantages and Future Potential?
ASTM B265 titanium sheets have been used for a long time in many important businesses because they work better than other materials and new materials are always being developed that make them more useful.
Core Performance Advantages
Titanium sheets have the best mix of specific strength, resistance to rust, and temperature range for use that no other building material can match. The inactive oxide layer that forms naturally on titanium surfaces protects against corrosion and heals itself when it is hurt physically. This means that the coating doesn't need to be maintained like painted or plated steels do. Biocompatibility lets human tissue touch human tissue without any bad effects. This means that biocompatibility can be used in more areas than just industry, like medicine and market goods. These natural qualities of the material solve basic engineering problems in a wide range of settings, which makes the higher costs of the material worth it by increasing its service life and lowering its lifecycle costs.
Industry Trends and Innovation Drivers
More focus on environment and energy economy is speeding up the use of titanium in transportation sectors that want to cut weight without sacrificing safety. Commercial airplane makers want to cut fuel use by 20% in their next-generation designs, so they're using more titanium instead of heavier metal and steel. This is increasing demand in the aerospace industry. As the production of electric vehicles grows, the battery systems and structure parts need to be made of lightweight, corrosion-resistant materials. Titanium sheets meet performance standards and help vehicles reach their long-term range goals. Chemical process businesses have to follow stricter environmental rules that require equipment to be more reliable. Titanium's resistance to rust makes it a better choice than traditional materials that can leak and shut down without warning.
Value of Premium Supplier Partnerships
When looking for a good titanium supplier, you need to think about more than just price per unit. You also need to look at technical knowledge, quick communication, and regular quality delivery, all of which are important for keeping to your production plan. At MICRO-A, our engineering team helps customers choose the right materials by matching titanium grades to the needs of the application. This keeps costs down by avoiding expensive over-specification and makes sure there are enough performance reserves. Our thorough quality control procedures, which include ultrasonic testing, mechanical property verification, and dimensional inspection, take away the need for customer receiving teams to check arriving materials. Customers are protected from changes in the titanium market by long-term supply deals that include price stability conditions. This allows for accurate production cost forecasts, which is necessary for bidding on multi-year projects in a competitive way.
Conclusion
ASTM B265 titanium sheets are a tried-and-true material for tough industrial uses where long-term dependability, resistance to rust, and high strength-to-weight ratio make it worth the extra cost. When sourcing experts know what specifications are needed, how to choose grades, and what suppliers can do, they can find materials that meet application performance requirements perfectly while keeping costs low. As efficiency and environmental concerns rise in the aerospace, chemical processing, medical, and automobile industries, more and more people are using titanium sheets. This is because new manufacturing techniques are making them more cost-effective. Working with certified providers who can provide full technical support, quality testing, and customization services is the best way to make sure that projects are completed successfully and that the supply chain stays reliable over time.
FAQ
What are the main differences between Grade 1 and Grade 2 titanium sheets?
Grade 1 is the commercially pure titanium that is softest and easiest to shape. It has the least amount of oxygen (0.18% at most), so it can be cold-formed easily for complicated shaping tasks. Grade 2 has a slightly higher oxygen content (up to 0.25%), which makes it stronger while still being easy to shape. This makes it the most widely requested commercially pure grade because it balances mechanical properties with ease of shaping.
Can you provide custom sheet dimensions and fabrication services?
We can make unique sizes from 0.3 mm to 50 mm thick, with widths up to 2000 mm and lengths up to 6000 mm. Our fabrication services include precise cutting, surface finishing, and heat treatment changes that are made to your engineering specs. We also offer expert advice to help you choose the best material for your needs.
How do titanium sheet prices compare across global markets?
Instead of being based on set geographic differences, pricing is based on how the regional market changes, the number of orders, the grade standards, and the size requirements. No matter where the customer is located, bulk buying programs offer big savings on costs, and smart supplier partnerships protect prices from the unstable titanium sponge market that affects spot market transactions.
What certifications verify sheet quality and traceability?
Each shipment comes with mill test records that show the chemical make-up using optical emission spectrometry, the mechanical qualities using tensile testing according to ASTM E8, and the sizes that were checked. Our ISO 9001, AS9100, and ISO 13485 standards prove that we have quality management systems in place. We can also trace materials back to the original batch numbers used to make them, which is necessary for the aerospace and medical industries.
Partner with MICRO-A for Your Titanium Sheet Requirements
MICRO-A Titanium Metals provides approved ASTM B265 titanium sheet material that is made to the highest quality standards to meet your most challenging needs. Our ISO 9001, AS9100, and ISO 13485 certifications show that we are dedicated to consistently high quality. Our advanced cold rolling tools and ability to do precise inspections make sure that the dimensions are correct and that the mechanical properties are met. We offer cost-effective options without sacrificing the quality of the material because we are a direct producer of titanium sheets and have a strategic relationship with the Baoti Group. Our expert team offers quick engineering help, the ability to make custom sizes, and the ability to change order amounts to meet your needs. Get in touch with our experts right away at mayucheng188@aliyun.com to talk about the details of your project, ask for material certifications, and find out why top makers choose MICRO-A as their main ASTM B265 titanium sheet provider. You can look at all of our titanium products at micro-atitanium.com and start the process of material approval there.
References
ASTM International. (2021). ASTM B265: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. West Conshohocken, PA: ASTM International.
Boyer, R., Welsch, G., & Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. Materials Park, OH: ASM International.
Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. Materials Park, OH: ASM International.
Lutjering, G., & Williams, J.C. (2007). Titanium: Engineering Materials and Processes, 2nd Edition. Berlin: Springer-Verlag.
Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. (2003). Titanium Alloys for Aerospace Applications. Advanced Engineering Materials, Volume 5, Issue 6.
Schutz, R.W., & Watkins, H.B. (1998). Recent Developments in Titanium Alloy Application in the Energy Industry. Materials Science and Engineering: A, Volume 243, Issues 1-2.
