How are titanium fasteners made?

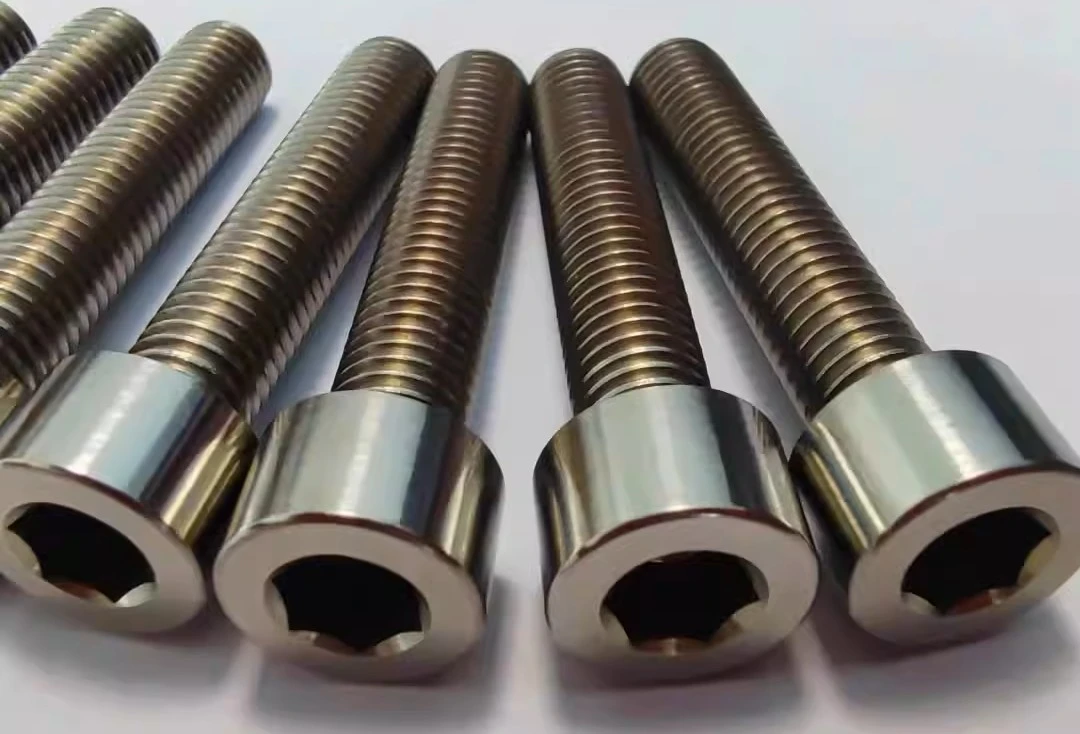

When critical aerospace components fail mid-flight or medical implants corrode inside the human body, the consequences are catastrophic. This is precisely why understanding how titanium fasteners are manufactured matters to engineers, procurement specialists, and quality managers worldwide. Titanium Fastening Parts represent the gold standard in high-performance applications where failure is not an option. From aircraft engines operating at extreme temperatures to surgical implants requiring perfect biocompatibility, these specialized components undergo a sophisticated manufacturing process that transforms raw titanium into precision-engineered fasteners capable of withstanding the harshest conditions imaginable.
Understanding Titanium Material Selection for Fastening Parts
The manufacturing journey of Titanium Fastening Parts begins with crucial material selection, as different titanium grades offer distinct mechanical properties suited for specific applications. Grade 2 commercially pure titanium provides excellent corrosion resistance and formability, making it ideal for chemical processing equipment and marine environments where salt water exposure is constant. Grade 5 titanium alloy, also known as Ti-6Al-4V, dominates aerospace and high-performance applications due to its exceptional strength-to-weight ratio, with tensile strength reaching up to 1100 MPa while maintaining nearly half the weight of steel fasteners. The selection process considers not only the mechanical requirements but also the operating environment, as titanium's unique ability to form a protective oxide layer provides superior resistance to temperatures ranging from -150°C to 600°C. Manufacturers at XI'AN MICRO-A Titanium Metals Co., Ltd. work with raw materials sourced directly from Baoji, China's titanium city, ensuring access to high-purity titanium sponge and ingots that meet international standards including ASTM F136 and ISO 5832-3. The chemical composition of each titanium grade determines its suitability for different fastening applications, with beta-titanium alloys offering enhanced cold formability for complex geometries, while alpha-beta alloys like Grade 5 provide optimal combinations of strength, ductility, and corrosion resistance essential for critical Titanium Fastening Parts manufacturing.
The Forging Process: Foundation of Strong Titanium Fasteners
Forging represents the cornerstone of high-quality Titanium Fastening Parts manufacturing, as this process fundamentally alters the metal's grain structure to enhance strength and durability far beyond what machining alone can achieve. Cold forging operations typically handle smaller fasteners from M3 to M16, where titanium wire is shaped at room temperature through progressive dies in high-speed parts formers capable of producing hundreds of components per minute. This chipless manufacturing method reduces material waste while work-hardening the titanium, resulting in fasteners with superior tensile strength and fatigue resistance compared to cut-thread alternatives. For larger diameter Titanium Fastening Parts exceeding M36 or components requiring complex geometries, hot forging becomes essential, with the titanium heated to approximately 900°C to improve malleability before being shaped using powerful hydraulic presses. The 50 MN hammering press and 2500-ton high-speed forging equipment at advanced facilities manufacture high-quality pure titanium and titanium alloy billets, slabs, blocks, bars, disks, and rings with consistent batch quality. The forging process offers multiple advantages: it aligns the metal's grain flow with the fastener's shape, eliminates internal voids and porosity, increases the material's density, and creates superior mechanical properties throughout the component rather than just at the surface. Thread rolling, performed after the head formation, further enhances the fastener's strength by cold-working the thread profile into the blank rather than cutting it, which would sever the grain structure and create stress concentration points. This manufacturing approach ensures that Titanium Fastening Parts can withstand extreme loads, vibration, and thermal cycling without premature failure, making them indispensable for aerospace structural components, automotive racing applications, and critical medical devices where reliability cannot be compromised.
Wire Preparation and Drawing Operations
Before forging can commence, titanium wire undergoes meticulous preparation involving annealing, pickling, and cold drawing to achieve the precise diameter and surface quality required for efficient fastener production. The annealing process heats coiled titanium wire to appropriate temperatures for controlled periods, adjusting the crystal structure and reducing hardness to improve formability during subsequent cold heading operations. Pickling removes the oxide layer that naturally forms on titanium surfaces, with the wire immersed in hydrochloric acid solutions followed by oxalic acid treatment to increase metal activity and prepare the surface for phosphate film formation. This film treatment creates a protective coating that prevents galling and reduces tooling wear during the high-pressure forging operations essential for Titanium Fastening Parts manufacturing. Cold drawing reduces the wire diameter through progressive dies, with careful control of reduction rates to manage internal stresses and maintain the material's ductility. Large wire drawing operations process titanium from the standard 5.5mm disc element diameter down to specifications required for substantial fasteners, while small wire drawing involves intermediate annealing steps to eliminate processing stresses that could compromise formability. The drawn wire must meet stringent tolerance requirements, typically h7, h8, or h9 grades, achieved through centerless grinding and polishing operations that ensure consistent diameter and surface finish across entire production runs of Titanium Fastening Parts.
Heat Treatment for Optimal Mechanical Properties
Following the initial forming operations, Titanium Fastening Parts undergo carefully controlled heat treatment cycles to optimize their mechanical properties for specific service conditions. Solution treatment involves heating Grade 5 titanium alloy components to temperatures between 920-980°C, allowing the microstructure to transform and dissolve secondary phases into the matrix. Subsequent aging treatments at lower temperatures precipitate fine particles within the titanium structure, significantly increasing strength and hardness while maintaining adequate ductility. The heat treatment parameters must be precisely controlled, as titanium's reactivity at elevated temperatures requires protective atmospheres or vacuum furnaces to prevent surface contamination and embrittlement. For Grade 2 commercially pure titanium fasteners, stress relief annealing at 650-750°C removes residual stresses from cold working and forging operations without significantly altering the material's strength characteristics. The 3-ton vacuum furnaces employed in modern manufacturing facilities provide contamination-free heat treatment environments essential for maintaining the superior corrosion resistance that distinguishes Titanium Fastening Parts from conventional steel fasteners. Cooling rates following heat treatment critically influence the final microstructure, with controlled cooling producing optimal combinations of strength, toughness, and ductility. Some specialized applications require cryogenic treatment following conventional heat treatment, exposing the Titanium Fastening Parts to temperatures as low as -195°C to further refine the microstructure and improve dimensional stability for precision aerospace applications.
Precision Machining and Thread Formation
After forging establishes the basic shape and enhances the material properties, precision machining operations create the exact dimensions, tolerances, and surface finishes specified for high-performance Titanium Fastening Parts. CNC turning operations rotate the titanium component on high-precision lathes while carbide, ceramic, or cubic boron nitride cutting tools remove material to achieve the specified shaft diameters, head geometries, and transitional radii. The poor machinability of titanium alloys, resulting from their low thermal conductivity and tendency to work-harden during cutting, demands specialized tooling, optimized cutting parameters, and effective coolant delivery to prevent tool wear and maintain dimensional accuracy. Swiss-type CNC machines excel at producing small-diameter Titanium Fastening Parts with exceptional precision, holding tolerances within microns while achieving superior surface finishes that minimize stress concentrations. For larger production volumes of standard configurations, multi-station machining centers process multiple fasteners simultaneously, with automated tool changers and integrated measurement systems ensuring consistent quality across thousands of components. Milling operations create specialized features such as hex sockets, cross recesses, or custom drive configurations that characterize different Titanium Fastening Parts designs. Thread cutting can produce fasteners to virtually any specification, though this subtractive process severs the material's grain structure and creates weaker threads compared to rolled alternatives. The digital machining capabilities available at advanced manufacturing facilities can produce complicated titanium fastener profiles according to customer drawings, samples, and technical requirements while maintaining competitive pricing through optimized production sequences and minimized material waste.
Thread Rolling Technology
Thread rolling represents the preferred method for creating external threads on Titanium Fastening Parts, as this cold-forming process generates smooth, precise, and uniform threads without compromising the material's integrity. The headed blank is positioned between flat dies with grooved surfaces corresponding to the desired thread profile, with one die fixed and the other executing reciprocating motion that progressively forms the thread through plastic deformation. Alternatively, cylindrical thread rolling employs two or three rotating dies that process the fastener continuously, offering advantages for producing overlength threads or processing large production volumes. Unlike thread cutting, which removes material and interrupts the grain flow, thread rolling displaces material and work-hardens the thread flanks, increasing fatigue strength by up to 30% and improving resistance to stress corrosion cracking. The cold-working action during thread rolling compresses and refines the surface layers, creating beneficial compressive residual stresses that enhance the fatigue performance of Titanium Fastening Parts subjected to cyclic loading in aerospace structures and automotive suspensions. Thread rolling machines capable of processing several hundred screws per minute enable economical production of standard configurations, while specialized equipment handles custom thread forms, variable pitches, and precision tolerance requirements. The surface finish achieved through thread rolling eliminates the microscopic tool marks present in cut threads, reducing friction during installation and improving the fastener's resistance to crevice corrosion in marine environments where Titanium Fastening Parts demonstrate exceptional longevity compared to stainless steel alternatives.
Surface Treatment and Finishing Operations
The exceptional corrosion resistance inherent to titanium can be further enhanced through various surface treatments that modify the oxide layer or apply protective coatings to Titanium Fastening Parts for specific environmental challenges. Passivation treatments chemically remove surface contaminants and promote the formation of a uniform, stable oxide film that provides superior resistance to pitting and crevice corrosion in chloride-containing environments. Anodizing applies an electrical current to thicken the natural oxide layer, creating decorative colors while improving wear resistance and surface hardness without significantly affecting the fastener's dimensions. Titanium nitride coating through physical vapor deposition or chemical vapor deposition processes creates a golden-colored surface layer with Vickers hardness exceeding 2000HV, dramatically improving wear resistance, reducing friction, and providing distinctive visual identification for critical Titanium Fastening Parts. Electroplating deposits metallic coatings such as zinc, nickel, or chromium to provide specific functional properties, though the excellent corrosion resistance of titanium often makes additional protective coatings unnecessary for most applications. Shot peening bombards the fastener surface with small spherical media, creating beneficial compressive stresses in the surface layers that enhance fatigue life and resistance to stress corrosion cracking. The low thermal expansion coefficient of Titanium Fastening Parts makes them particularly suitable for applications involving thermal cycling, as the dimensional stability prevents loosening and maintains joint integrity across wide temperature ranges. Surface finish specifications for Titanium Fastening Parts range from as-machined conditions showing visible tool marks to highly polished surfaces with mirror-like reflectivity required for certain medical and semiconductor applications where particulate contamination must be minimized.
Quality Control and Testing Procedures
Rigorous quality control throughout the manufacturing process ensures that every batch of Titanium Fastening Parts meets or exceeds international standards and customer specifications for critical applications. Material verification begins with spectrographic analysis of incoming titanium to confirm chemical composition matches the specified grade, with particular attention to interstitial elements like oxygen, nitrogen, and carbon that significantly influence mechanical properties. Dimensional inspection employs coordinate measuring machines, optical comparators, and precision micrometers to verify that all critical dimensions fall within specified tolerances, typically measuring multiple features on representative samples from each production lot. Mechanical testing subjects Titanium Fastening Parts to tensile tests determining ultimate tensile strength, yield strength, and elongation; hardness tests using Rockwell, Vickers, or Brinell methods; and fatigue testing for components destined for cyclic loading applications in aerospace structures. Non-destructive testing methods including liquid penetrant inspection, magnetic particle inspection (for ferromagnetic titanium alloys), and ultrasonic examination detect surface and subsurface defects without damaging the fasteners. Thread inspection utilizes specialized gages and optical measurement systems to verify pitch, major diameter, minor diameter, and thread profile conform to specifications. Corrosion resistance testing exposes Titanium Fastening Parts to simulated service environments, confirming their ability to withstand salt spray, acidic conditions, or other corrosive media relevant to their intended applications. Final inspection examines surface finish quality, checking for scratches, tool marks, contamination, or other cosmetic defects that could serve as stress concentration points or affect product appearance. The comprehensive quality management systems implemented by certified manufacturers, including ISO13485:2017 for medical applications, AS/EN 9100 for aerospace and defense, and ISO9001 for general manufacturing, provide documented traceability from raw material through final shipment, ensuring confidence in the performance and reliability of Titanium Fastening Parts throughout their service life.
Advanced Testing and Certification
Beyond standard quality control procedures, Titanium Fastening Parts destined for critical applications undergo additional testing and certification to verify their suitability for demanding service environments. Salt spray testing per ASTM B117 subjects fasteners to continuous exposure in a fog cabinet containing sodium chloride solution, simulating decades of marine exposure in accelerated timeframes to confirm superior corrosion resistance. Stress corrosion cracking tests evaluate the fastener's resistance to crack initiation and propagation under sustained tensile stress in corrosive environments, particularly important for Titanium Fastening Parts used in offshore oil platforms and naval vessels. Biocompatibility testing for medical-grade titanium fasteners includes cytotoxicity assays, sensitization studies, and implantation tests following ISO 10993 standards to ensure patient safety in surgical applications. Aerospace applications may require lot-by-lot certification with material test reports documenting the complete chemical analysis, mechanical properties, heat treatment records, and traceability to specific melts and production batches. First article inspection provides comprehensive dimensional and metallurgical evaluation of initial production samples before full-scale manufacturing commences, identifying potential process issues before they affect large quantities. Periodic production audits sample fasteners from ongoing manufacturing runs, conducting abbreviated testing protocols to confirm process stability and product consistency. The advanced testing capabilities available through certified laboratories and in-house quality departments provide objective evidence that Titanium Fastening Parts will perform reliably throughout their intended service life, supporting critical design validation and qualification requirements across aerospace, medical, automotive, and industrial sectors where component failure could result in catastrophic consequences.
Customization Capabilities and Engineering Support
Modern Titanium Fastening Parts manufacturers offer extensive customization capabilities that enable engineers to specify fasteners optimized for their unique application requirements rather than compromising designs to fit available standard components. Custom alloy selection allows specifying titanium grades or proprietary compositions that provide ideal combinations of strength, corrosion resistance, and thermal properties for specific operating environments. Dimensional customization accommodates non-standard thread sizes, lengths, head styles, drive configurations, and special features like self-locking provisions, captive washers, or integrated sealing elements. Surface treatment specifications can be tailored to application requirements, selecting from passivation, anodizing, titanium nitride coating, or specialized finishes that optimize performance in particular environments. Engineering support services assist customers in translating conceptual designs into manufacturable Titanium Fastening Parts, applying expertise in titanium material properties, manufacturing processes, and joint design principles to optimize fastener specifications. Finite element analysis capabilities evaluate stress distributions within proposed designs, identifying potential failure modes and enabling iterative refinement before committing to production tooling. Prototyping services produce small quantities of custom Titanium Fastening Parts for fit checks, functional testing, and design validation, typically delivering samples within 25-30 days for standard configurations or somewhat longer for complex custom designs. Design for manufacturability reviews examine proposed fastener specifications, identifying opportunities to simplify production processes, reduce costs, or improve quality without compromising performance requirements. The ability to provide comprehensive drawing support helps customers develop detailed specifications including dimensional tolerances, material requirements, surface finish specifications, testing requirements, and packaging instructions. Technical documentation services prepare material certificates, test reports, and compliance declarations required for aerospace, medical, or other regulated applications of Titanium Fastening Parts. This collaborative approach between manufacturer and customer ensures that the final product precisely meets application requirements while leveraging manufacturing expertise to optimize cost, quality, and delivery performance.
Conclusion
Manufacturing high-performance Titanium Fastening Parts requires sophisticated integration of material science, advanced forming technologies, precision machining, and rigorous quality control throughout every production stage from raw material selection through final inspection and certification.
Cooperate with XI'AN MICRO-A Titanium Metals Co.,Ltd.
As a leading China Titanium Fastening Parts factory, China Titanium Fastening Parts supplier, and China Titanium Fastening Parts manufacturer, XI'AN MICRO-A Titanium Metals Co., Ltd. delivers China Titanium Fastening Parts wholesale solutions with competitive Titanium Fastening Parts price structures while maintaining the highest quality standards. Founded in 2017 and headquartered in Baoji, China's titanium city, we provide comprehensive titanium products including sponge, ingots, plates, tubes, rods, castings, alloys, wire, flanges, and the best Titanium Fastening Parts for sale across aerospace, medical, automotive, marine, and industrial sectors. Our ISO13485:2017, AS/EN 9100, ISO14001, and ISO9001 certifications demonstrate our commitment to quality excellence, while our strategic partnership with Baoti Group ensures stable supply chains and superior raw materials. We offer complete customization services supporting drawing processing, non-standard parts, and private customization backed by advanced equipment including 3-ton vacuum furnaces, 2500-ton hydraulic presses, Japan Mazak five-axis machining centers, and comprehensive testing capabilities. Our expertise advantages encompass original factory direct supply, advanced manufacturing equipment, stringent quality assurance, tailored customized services, and fast delivery through organized logistics networks. Contact our team today at mayucheng188@aliyun.com to discuss your Titanium Fastening Parts requirements and discover how our technical expertise and production capabilities can solve your most challenging fastening applications while delivering exceptional value and reliability.
References
1. Donachie, Matthew J. "Titanium: A Technical Guide" (Second Edition). ASM International, Materials Park, Ohio, 2000.
2. Leyens, Christoph and Peters, Manfred. "Titanium and Titanium Alloys: Fundamentals and Applications". Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany, 2003.
3. Boyer, Rodney; Welsch, Gerhard; Collings, E.W. "Materials Properties Handbook: Titanium Alloys". ASM International, Materials Park, Ohio, 1994.
4. Lütjering, Gerd and Williams, James C. "Titanium" (Second Edition). Springer-Verlag Berlin Heidelberg, Germany, 2007.
5. Froes, Francis H. "Titanium: Physical Metallurgy, Processing, and Applications". ASM International, Materials Park, Ohio, 2015.
