Titanium Fastener Grades: A Comprehensive Guide
When critical assemblies fail due to corrosion or insufficient strength under extreme conditions, the consequences can be catastrophic. Industries from aerospace to medical implants face this daily challenge, and selecting the right titanium fastening parts makes all the difference. This comprehensive guide walks you through titanium fastener grades, helping you understand which specifications match your application requirements, ensuring safety, longevity, and optimal performance in demanding environments where standard materials simply cannot deliver.
Understanding Titanium Fastener Material Grades

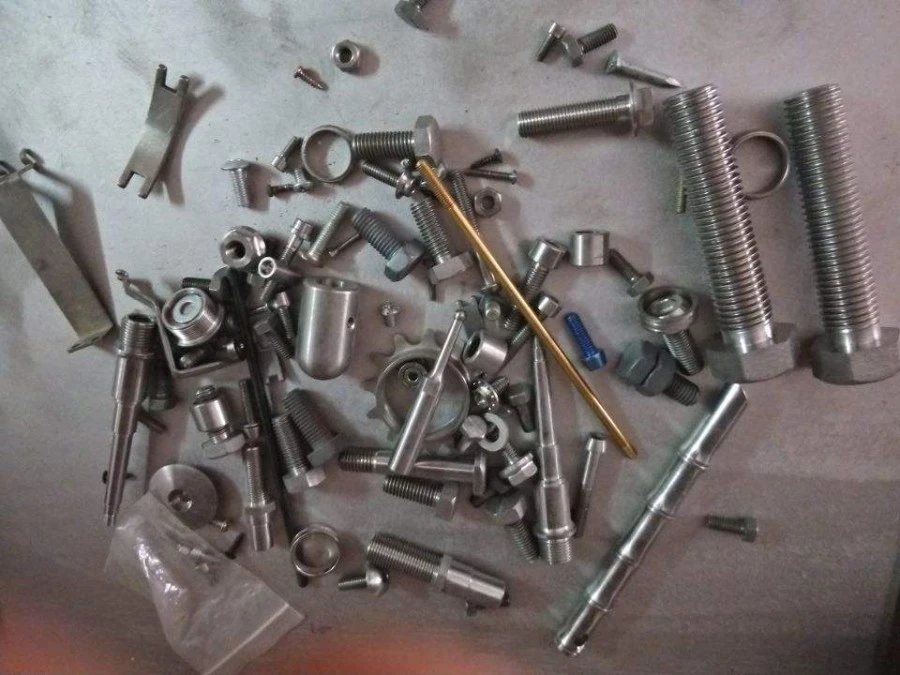

Titanium fastening parts are manufactured from various grades of titanium alloys, each engineered to meet specific performance criteria across different industrial applications. The most commonly used grades in fastener production include commercially pure titanium grades and titanium alloys that offer enhanced mechanical properties. Grade 2 titanium represents the most widely utilized commercially pure titanium for fastening applications, offering an excellent balance between strength, formability, and corrosion resistance. This grade provides a minimum tensile strength of 345 MPa and exhibits outstanding resistance to oxidizing environments, making it ideal for chemical processing equipment and marine applications where titanium fastening parts must withstand harsh corrosive conditions without degradation.Grade 5 titanium, also known as Ti-6Al-4V, stands as the workhorse alloy in the titanium fastening parts industry, accounting for more than half of all titanium fastener production worldwide. This alpha-beta alloy contains approximately 6% aluminum and 4% vanadium, delivering exceptional strength-to-weight ratios with tensile strengths ranging from 895 to 1100 MPa depending on heat treatment conditions. The aluminum component enhances strength and reduces density, while vanadium stabilizes the beta phase, improving overall mechanical properties and thermal stability. Grade 5 titanium fastening parts excel in aerospace applications where components must endure high stress loads while minimizing weight, and in medical devices where biocompatibility combines with mechanical strength. The material maintains its properties across a temperature range from -150°C to 600°C, making it suitable for cryogenic applications and high-temperature environments where conventional fasteners would fail.
Commercial Purity Versus Alloyed Titanium Fastening Parts
The distinction between commercially pure titanium and alloyed titanium fastening parts fundamentally impacts application selection and performance outcomes. Commercially pure titanium grades, including Grades 1 through 4, contain minimal alloying elements and derive their properties primarily from interstitial elements like oxygen, nitrogen, and iron. Grade 1 offers the highest corrosion resistance and best formability but lower strength, while Grade 4 provides the highest strength among pure grades through increased interstitial content. These grades demonstrate exceptional corrosion resistance in chloride environments, oxidizing acids, and organic compounds, making them preferred choices for chemical processing equipment, marine hardware, and architectural applications where titanium fastening parts must resist environmental attack without requiring exceptional mechanical strength. Alloyed titanium fastening parts incorporate specific metallic elements to enhance mechanical properties, thermal stability, or specialized performance characteristics. Beyond Grade 5, other important alloys include Grade 23 (Ti-6Al-4V ELI or Extra Low Interstitial), which offers improved ductility and fracture toughness for medical implant applications, and Grade 7, which adds palladium to commercially pure titanium for superior resistance to reducing acids. Beta titanium alloys like Grade 19 provide enhanced cold formability and higher strength levels achievable through aging treatments. Understanding these material distinctions enables engineers to specify appropriate titanium fastening parts that balance corrosion resistance, mechanical strength, temperature capability, and cost considerations for each unique application requirement.
Critical Properties of Titanium Fastening Parts
Titanium fastening parts possess a unique combination of physical and mechanical properties that distinguish them from conventional fastener materials like steel, stainless steel, or aluminum alloys. The density of titanium fastening parts ranges from 4.5 to 4.7 g/cm³, approximately 60% lighter than steel while maintaining comparable or superior strength levels. This exceptional strength-to-weight ratio proves critical in aerospace applications where every gram of weight reduction translates to fuel savings and increased payload capacity. Commercial aircraft manufacturers specify titanium fastening parts extensively throughout airframe structures and engine components, achieving weight reductions of 40-50% compared to steel fasteners while maintaining structural integrity and safety margins. The corrosion resistance of titanium fastening parts stems from the spontaneous formation of a stable, continuous, highly adherent oxide film on exposed surfaces. This passive layer, primarily composed of titanium dioxide, reforms instantaneously if damaged, providing self-healing protection against corrosive attack. Titanium fastening parts demonstrate immunity to chloride-induced stress corrosion cracking, a failure mode that plagues stainless steel fasteners in marine environments and chemical processing applications. The material resists attack from seawater, organic acids, chlorine compounds, and oxidizing media, maintaining dimensional stability and mechanical properties over extended service life. This corrosion resistance eliminates the need for protective coatings or galvanic barriers, reducing maintenance requirements and lifecycle costs in aggressive environments.
Low Thermal Expansion and Temperature Stability
The thermal expansion coefficient of titanium fastening parts measures approximately 8.6 × 10⁻⁶ per degree Celsius, significantly lower than aluminum (23 × 10⁻⁶) and comparable to certain ceramics and composite materials. This low thermal expansion characteristic proves essential in applications involving dissimilar materials or extreme temperature variations, preventing loosening or excessive stress concentrations that could compromise joint integrity. Aerospace structures combining titanium fastening parts with carbon fiber composite materials benefit from matched thermal expansion rates, maintaining preload and preventing micro-movement during thermal cycling from cryogenic temperatures at high altitude to elevated temperatures during atmospheric reentry or supersonic flight. Temperature stability extends the useful range of titanium fastening parts across extreme thermal environments where conventional materials deteriorate or lose mechanical properties. Grade 2 titanium maintains adequate strength and corrosion resistance from cryogenic temperatures approaching absolute zero up to approximately 315°C for continuous exposure. Grade 5 titanium fastening parts retain mechanical properties up to 600°C for short-term exposure, though strength decreases progressively above 350°C. For applications requiring sustained high-temperature performance, near-alpha alloys like Grade 6 (Ti-5Al-2.5Sn) or alpha-beta alloys with enhanced creep resistance provide stable mechanical properties during prolonged thermal exposure. Understanding these temperature limitations ensures proper material selection for titanium fastening parts in high-temperature industrial equipment, exhaust systems, and thermal protection structures.
Manufacturing Considerations for Custom Titanium Fastening Parts
The production of high-quality titanium fastening parts requires sophisticated manufacturing processes and precision equipment to transform raw titanium materials into finished components meeting exacting specifications. Manufacturing begins with raw material verification, ensuring chemical composition, mechanical properties, and traceability meet applicable standards like ASTM F136, ISO 5832-3, or AMS 4928. Primary titanium production involves vacuum arc remelting (VAR) or electron beam cold hearth refining (EBCHR) to create ingots with controlled chemistry and minimal defects. These ingots undergo hot working operations including forging, rolling, or extrusion to break down the cast structure and develop optimal microstructures with fine, equiaxed grain structures that enhance mechanical properties and fatigue resistance. Machining operations transform forged or rolled titanium stock into finished fastening parts through various manufacturing processes. Traditional machining methods including turning, milling, drilling, and threading prove effective for titanium fastening parts, though the material's low thermal conductivity and high chemical reactivity with cutting tools require specialized techniques. Sharp cutting tools with positive rake angles, adequate coolant flow, and reduced cutting speeds prevent work hardening and tool wear. Advanced manufacturing technologies like CNC machining centers enable production of complex titanium fastening parts with tight tolerances, repeatability, and geometric complexity impossible through conventional methods. Five-axis machining capabilities allow manufacturers to produce custom titanium fastening parts from customer drawings, samples, or technical requirements, supporting drawing customization for specialized applications requiring non-standard configurations.
Surface Treatment and Quality Assurance
Surface treatments enhance the performance and appearance of titanium fastening parts while ensuring corrosion resistance and dimensional accuracy. As-machined surfaces provide adequate performance for many applications, exhibiting the natural oxide layer that develops during manufacturing and handling. Passivation treatments using nitric acid solutions remove surface contaminants and enhance oxide layer formation, improving corrosion resistance and providing a clean, uniform appearance. Anodizing creates thicker, more uniform oxide layers with controllable colors through electrical current application in acidic electrolyte solutions, offering aesthetic options and enhanced wear resistance for titanium fastening parts in architectural or consumer applications. Quality assurance programs ensure titanium fastening parts meet dimensional tolerances, mechanical property requirements, and industry standards before shipment to customers. Material verification confirms chemical composition through spectrographic analysis, validating grade specifications and traceability to certified material test reports. Dimensional inspection utilizes precision measuring equipment including micrometers, coordinate measuring machines, and optical comparators to verify thread profiles, head dimensions, and overall geometry against drawing specifications. Mechanical testing evaluates tensile strength, yield strength, hardness, and elongation properties, confirming conformance to material grade requirements. Non-destructive testing methods including ultrasonic inspection, liquid penetrant examination, or radiographic testing detect internal defects, surface cracks, or material discontinuities that could compromise fastener performance. Rigorous quality control throughout manufacturing ensures titanium fastening parts deliver consistent performance and reliability in critical applications.
Application-Specific Selection of Titanium Fastening Parts
Selecting appropriate titanium fastening parts requires careful consideration of application requirements including mechanical loads, environmental conditions, temperature exposure, and compatibility with adjoining materials. Aerospace applications demand the highest performance standards, specifying Grade 5 titanium fastening parts for structural assemblies, engine mounts, and flight control systems where strength, weight savings, and fatigue resistance prove critical. Aircraft manufacturers utilize millions of titanium fastening parts throughout each airframe, achieving substantial weight reductions compared to steel alternatives while maintaining safety factors and service life requirements. The aerospace industry particularly values titanium's performance in elevated temperature zones around engines and exhaust systems, where thermal stability and oxidation resistance surpass aluminum and approach nickel-based superalloys at a fraction of the weight. Medical device applications leverage the biocompatibility and corrosion resistance of titanium fastening parts in surgical implants, orthopedic hardware, and dental fixtures. Grade 23 titanium (Ti-6Al-4V ELI) represents the preferred material for medical fastening applications due to reduced interstitial content that improves ductility and fatigue performance in the physiological environment. Titanium fastening parts demonstrate excellent osseointegration, allowing bone tissue to bond directly with implant surfaces for long-term stability. The material's inertness prevents adverse tissue reactions, inflammation, or metallosis that plague certain stainless steel or cobalt-chromium implants. Spinal fusion hardware, fracture fixation plates, and joint replacement prostheses incorporate titanium fastening parts extensively, providing patients with durable, biocompatible solutions that restore function and quality of life. Medical manufacturers provide samples for evaluation and regulatory approval processes, supporting clinical validation of new device designs incorporating titanium fastening parts.
Marine and Industrial Environment Applications
Marine applications benefit tremendously from titanium fastening parts' immunity to seawater corrosion and biofouling resistance. Offshore oil and gas platforms specify titanium fasteners for critical structural connections, piping systems, and equipment mounting in splash zones and submerged environments where conventional materials suffer accelerated corrosion. Superyachts and high-performance sailing vessels utilize titanium fastening parts throughout rigging systems, hull fittings, and deck hardware, achieving weight savings and eliminating maintenance associated with stainless steel fastener corrosion. Naval vessels and submarines specify titanium fastening parts for applications requiring long service life without maintenance, particularly in propulsion systems, seawater piping, and hull penetrations. Industrial applications in chemical processing, power generation, and manufacturing facilities specify titanium fastening parts for equipment operating in corrosive environments or elevated temperatures. Chemical reactors, heat exchangers, and piping systems handling acidic or chloride-containing media benefit from titanium's corrosion resistance, preventing contamination and equipment failure. Desalination plants utilize titanium fastening parts extensively in seawater evaporators and condensers, achieving decades of reliable service without replacement. Industrial facilities appreciate the low maintenance requirements and extended service life that titanium fastening parts provide, offsetting higher initial material costs through reduced downtime, elimination of spare parts inventory, and decreased replacement labor. The ability to support drawing customization and provide samples enables industrial customers to validate titanium fastening parts performance in specific process conditions before committing to full-scale implementation.
Conclusion
Titanium fastener grades offer unmatched performance combining strength, corrosion resistance, and temperature stability for critical applications across aerospace, medical, marine, and industrial sectors where failure is not an option.
Cooperate with XI'AN MICRO-A Titanium Metals Co.,Ltd.
Partner with XI'AN MICRO-A Titanium Metals Co.,Ltd., your trusted China titanium fastening parts manufacturer and China titanium fastening parts supplier since 2017. Headquartered in Baoji, China's titanium city, we deliver best titanium fastening parts through advanced manufacturing including 3-ton vacuum furnaces, 2500-ton hydraulic presses, and Japan Mazak five-axis machining centers. Our China titanium fastening parts factory maintains ISO13485:2017, AS/EN 9100, ISO14001, and ISO9001 certifications, producing 160 tons annually of titanium fastening parts for sale alongside comprehensive titanium products including sponge, ingots, plates, tubes, rods, and custom alloys. As a leading China titanium fastening parts wholesale provider, we offer competitive titanium fastening parts price with customized solutions including drawing processing, non-standard parts, and private customization supported by our strategic partnership with Baoti Group. Experience our expertise through sample delivery in 25-30 days, fast logistics via air, sea, or express, and dedicated after-sales support. Contact mayucheng188@aliyun.com today to discuss your titanium fastening requirements and discover why industries worldwide trust our quality, reliability, and technical expertise for their critical applications.
References
1. "Titanium: A Technical Guide" by Matthew J. Donachie, ASM International
2. "Handbook of Materials Selection" edited by Myer Kutz, John Wiley & Sons
3. "ASM Handbook Volume 2: Properties and Selection: Nonferrous Alloys and Special-Purpose Materials" by ASM International Committee
4. "Corrosion of Titanium and Titanium Alloys" by R.W. Schutz, Corrosion Engineering Handbook
5. "Aerospace Materials Specification AMS 4928: Titanium Alloy Bars, Wire, Forgings, and Rings" by SAE International
