What Is ASTM F136 Titanium Sheet? Ultimate Guide to Composition & Uses
When engineers face implant failures from material incompatibility or medical professionals struggle with surgical instrument corrosion, they turn to specialized materials that won't compromise patient safety. ASTM F136 Titanium Sheet represents the gold standard for surgical implant applications, offering a unique combination of biocompatibility, mechanical strength, and corrosion resistance that conventional materials simply cannot match. This comprehensive guide explores everything you need to know about this extra-low interstitial titanium alloy, from its precise chemical composition to its life-saving applications across medical and aerospace industries.
Understanding ASTM F136 Titanium Sheet Specification

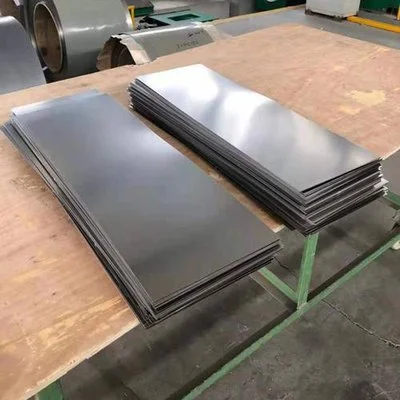

ASTM F136 Titanium Sheet is a wrought titanium alloy specifically engineered to meet the stringent requirements of surgical implant manufacturing. Designated as Ti-6Al-4V ELI (Extra Low Interstitial), this material is governed by standards established by ASTM International, ensuring consistent quality for critical medical applications. The specification encompasses comprehensive chemical, mechanical, and metallurgical requirements that manufacturers must satisfy to produce implant-grade titanium products. The alloy contains six percent aluminum and four percent vanadium, with strictly controlled interstitial elements including oxygen, carbon, nitrogen, and iron. These limitations on impurities distinguish ASTM F136 from standard Ti-6Al-4V Grade 5 alloy, making it superior for applications requiring direct contact with human tissue. The standard applies to various product forms including strip, sheet, plate, bar, forging bar, and wire, all manufactured in an annealed condition to optimize ductility and fracture toughness. Understanding this specification is fundamental for anyone sourcing materials for medical devices, as it guarantees that the ASTM F136 Titanium Sheet meets international benchmarks for safety and performance in the human body.
Chemical Composition of Ti-6Al-4V ELI Alloy
The chemical composition of ASTM F136 Titanium Sheet represents a carefully balanced formulation designed to maximize biocompatibility while maintaining exceptional mechanical properties. The alloy consists primarily of titanium with 5.5 to 6.75 percent aluminum and 3.5 to 4.5 percent vanadium by weight. What sets this extra-low interstitial grade apart is its tightly restricted impurity levels compared to standard titanium alloys. Oxygen content is limited to a maximum of 0.13 percent, significantly lower than the 0.20 percent allowed in standard Grade 5 titanium. Carbon content must not exceed 0.08 percent, while nitrogen is restricted to 0.05 percent maximum. Iron content is controlled at 0.25 percent or below. These reduced interstitial element concentrations are critical because they directly influence the material's ductility, toughness, and ability to withstand cyclic loading without cracking. The lower oxygen content particularly enhances fracture toughness, a property essential for implants subjected to repetitive stress in the human body. Hydrogen content is also strictly limited to prevent embrittlement. Each element plays a specific role: aluminum contributes to strength and reduces density, while vanadium stabilizes the beta phase, improving workability and heat treatment response. This precise chemical control ensures that every sheet of ASTM F136 Titanium Sheet delivers predictable, reliable performance in demanding biomedical environments.
Mechanical Properties and Performance Standards
ASTM F136 Titanium Sheet exhibits exceptional mechanical properties that make it ideal for load-bearing medical implants and high-performance aerospace components. The material demonstrates a minimum tensile strength of 860 MPa (megapascals), providing sufficient strength to support significant mechanical loads without failure. Yield strength requirements specify a minimum of 795 MPa, ensuring the material resists permanent deformation under operational stresses. Perhaps most importantly, the alloy maintains an elongation of at least 10 percent, indicating excellent ductility that allows the material to absorb energy and resist sudden fracture. These properties represent a superior balance compared to commercially pure titanium grades, which offer excellent biocompatibility but lack the strength required for load-bearing applications such as hip and knee replacements. The alloy's density of approximately 4.43 grams per cubic centimeter delivers an outstanding strength-to-weight ratio, crucial for applications where minimizing implant mass reduces patient discomfort and accelerates recovery. Fatigue resistance stands as another critical performance characteristic, with ASTM F136 Titanium Sheet capable of withstanding millions of loading cycles without crack initiation or propagation. Young's modulus of approximately 110 GPa, while higher than human bone, remains lower than stainless steel alternatives, reducing the stress shielding effect that can lead to bone resorption around implants. The material maintains these properties across a wide temperature range, demonstrating particular utility in cryogenic applications where ductility at extremely low temperatures becomes essential.
Manufacturing and Processing Methods
The production of ASTM F136 Titanium Sheet requires sophisticated manufacturing techniques that ensure material integrity and consistent quality throughout the final product. Manufacturing begins with careful raw material selection, where titanium sponge with verified low interstitial content is chosen as the primary feedstock. Vacuum arc remelting (VAR) or vacuum induction melting processes create the initial ingots under controlled atmospheric conditions that prevent contamination from oxygen, nitrogen, and other impurities. These ingots undergo multiple remelting cycles to achieve chemical homogeneity and eliminate segregation of alloying elements. Hot forging operations at temperatures between 900 and 1050 degrees Celsius break down the cast structure and refine the grain structure, improving mechanical properties. The forged billets or slabs then proceed to hot rolling mills where they are progressively reduced to intermediate thickness gauges. Cold rolling processes further reduce thickness to final sheet dimensions while improving surface finish and dimensional tolerances. Throughout these operations, strict temperature control prevents excessive oxygen pickup that would compromise the ELI designation. Annealing heat treatments follow cold working operations, typically conducted at 700 to 800 degrees Celsius for specified durations to relieve internal stresses and optimize the alpha-beta microstructure. Modern facilities employ sophisticated equipment including 2500-ton hydraulic presses for large-scale production and precision CNC machining centers for custom fabrication requirements. Quality assurance testing accompanies each production stage, with material composition verified through spectrometric analysis and mechanical properties confirmed through tensile and bend testing protocols specified in the ASTM F136 standard.
Cold Rolling Process Benefits
Cold rolling represents a critical manufacturing step that significantly enhances the properties and surface quality of ASTM F136 Titanium Sheet products. This process involves passing annealed titanium through precision rollers at room temperature, progressively reducing thickness through multiple passes until the desired gauge is achieved. Cold rolling imparts several important benefits that make it indispensable for medical-grade titanium sheet production. First, the process dramatically improves dimensional accuracy, achieving thickness tolerances as tight as plus or minus 0.05 millimeters, essential for components requiring precise fit and function. Surface finish quality improves substantially during cold rolling, producing smooth surfaces with reduced roughness that minimize particulate generation and enhance cleanability for sterile applications. The mechanical working introduces beneficial compressive residual stresses in the surface layers, improving fatigue resistance and crack propagation resistance in finished components. Cold rolling also enables the production of very thin gauges, with capabilities extending down to 0.5 millimeters thickness for applications requiring minimal material mass. Work hardening during the cold rolling process increases strength properties, though subsequent annealing returns the material to specified mechanical properties while retaining the improved surface characteristics. The process provides excellent control over grain structure orientation, producing material with more predictable and uniform properties in all directions. For manufacturers of ASTM F136 Titanium Sheet, cold rolling equipment represents a significant investment but delivers essential quality improvements that justify the expense for high-value medical and aerospace applications.
Critical Applications of ASTM F136 Titanium Sheet
ASTM F136 Titanium Sheet serves as the material of choice for an extensive range of critical applications where biocompatibility, strength, and corrosion resistance are non-negotiable requirements. In the medical device industry, this alloy dominates the production of orthopedic implants including hip stems, knee replacement components, spinal fusion hardware, and trauma fixation plates and screws. Dental implant posts, abutments, and prosthetic frameworks rely on ASTM F136 material for its ability to osseointegrate with jawbone tissue while resisting the corrosive oral environment. Surgical instrument manufacturers select this titanium sheet for specialized cutting tools, retractors, and implantable surgical clips that must remain chemically inert within the body. Cardiovascular applications include heart valve components, pacemaker enclosures, and vascular stents where the material's combination of strength, flexibility, and blood compatibility proves essential. The aerospace industry utilizes ASTM F136 Titanium Sheet for critical aircraft structural components, engine parts, and fasteners operating in high-stress, high-temperature environments where weight reduction directly translates to fuel efficiency and performance gains. Marine applications benefit from the material's exceptional resistance to saltwater corrosion, finding use in propeller shafts, valve bodies, and offshore platform components. Chemical processing facilities employ ASTM F136 sheet for reactor vessels, heat exchangers, and piping systems handling corrosive chemicals at elevated temperatures. High-performance automotive and motorsports applications leverage the material's strength-to-weight ratio for components including connecting rods, valve springs, and exhaust systems where every gram of weight reduction improves performance.
Medical Implant and Surgical Device Applications
The medical field represents the primary and most demanding application area for ASTM F136 Titanium Sheet, where material performance directly impacts patient health and quality of life. Total joint replacement systems constitute the largest volume application, with hip and knee arthroplasty components manufactured from this alloy serving millions of patients annually worldwide. The material's biocompatibility ensures that these implants integrate successfully with surrounding bone tissue through osseointegration, creating stable mechanical fixation that can last decades. Spinal fusion cages, rods, and screws fabricated from ASTM F136 sheet provide the structural support necessary to stabilize injured or degenerated spinal segments while the body heals. Trauma fixation systems including bone plates, intramedullary nails, and external fixation pins rely on the alloy's combination of strength and ductility to stabilize fractures during the healing process without causing stress shielding or inflammatory responses. Dental implantology has embraced this titanium alloy for root analogs that replace missing teeth, with the material demonstrating superior integration with jawbone compared to alternative metals. Maxillofacial reconstruction employs custom-fabricated plates and meshes for repairing facial bone defects resulting from trauma, tumor resection, or congenital abnormalities. Neurosurgical applications include cranial plates for skull reconstruction following brain surgery and specialized fasteners that secure these plates without compromising imaging compatibility. The material's magnetic resonance imaging (MRI) compatibility allows patients with ASTM F136 implants to undergo diagnostic scanning without artifact or safety concerns that plague ferromagnetic materials.
Aerospace and Industrial Engineering Uses
Beyond medical applications, ASTM F136 Titanium Sheet serves critical roles in aerospace and industrial engineering sectors where extreme operating conditions demand exceptional material performance. Commercial and military aircraft structures incorporate this alloy in wing components, fuselage frames, and bulkheads where high strength-to-weight ratio directly improves fuel efficiency and payload capacity. Jet engine manufacturers select the material for compressor blades, fan discs, and structural casings that must withstand extreme temperatures, vibration, and centrifugal forces while minimizing rotating mass. Fastening systems throughout aircraft assemblies utilize ASTM F136 material to prevent galvanic corrosion when joining dissimilar metals and to provide reliable strength at elevated service temperatures. Aerospace landing gear components benefit from the alloy's fatigue resistance and ability to absorb impact energy during repeated takeoff and landing cycles. Space exploration systems employ this titanium sheet for rocket engine components, satellite structures, and propellant tanks where reliability in vacuum and extreme temperature cycling is essential. Industrial gas turbine systems for power generation and pipeline compression specify ASTM F136 for hot section components requiring corrosion resistance in combustion gas streams containing sulfur compounds. Offshore oil and gas production facilities deploy the material in subsea control systems, wellhead components, and riser systems where resistance to seawater corrosion and hydrogen sulfide cracking ensures operational safety. Chemical processing equipment manufacturers fabricate reactor vessels, distillation columns, and heat exchanger plates from this alloy when handling aggressive acids, chlorinated solvents, and other corrosive process fluids at elevated temperatures and pressures.
Quality Control and Certification Requirements
Rigorous quality control procedures and comprehensive certification documentation distinguish genuine ASTM F136 Titanium Sheet from inferior substitutes, making supplier verification essential for critical applications. Material traceability begins at the ingot stage, with each heat of titanium assigned a unique identification number that follows the material through all processing steps to the final sheet product. Chemical composition verification occurs through spectrometric analysis, typically employing optical emission spectroscopy or X-ray fluorescence techniques that confirm aluminum, vanadium, and interstitial element contents meet specification limits. Mechanical property testing includes tensile tests performed on samples cut from each production lot, measuring ultimate tensile strength, yield strength, and elongation to verify compliance with ASTM F136 requirements. Microstructural examination through metallographic analysis evaluates grain size, phase distribution, and detects the presence of unacceptable defects or inclusions that could compromise performance. Non-destructive testing methods including ultrasonic inspection identify internal discontinuities, while surface inspection techniques detect cracks, seams, or other surface defects that might initiate failure. Dimensional inspections verify that sheet thickness, width, and flatness meet drawing specifications and industry tolerances. Reputable manufacturers maintain comprehensive quality management systems certified to ISO 13485 for medical device manufacturing, AS/EN 9100 for aerospace applications, and ISO 9001 for general quality management. Material certifications provided with each shipment include detailed test reports documenting all chemical and mechanical property results, heat treatment records, and traceability information linking the sheet to original ingot production. Third-party certification from independent testing laboratories provides additional assurance for high-value applications where material performance cannot be compromised.
Comparing ASTM F136 with Other Titanium Grades
Understanding how ASTM F136 Titanium Sheet compares to other titanium grades helps engineers and procurement specialists make informed material selection decisions for specific applications. Commercially pure titanium grades (ASTM F67 Grades 1-4) offer excellent biocompatibility and superior corrosion resistance but lack the mechanical strength required for load-bearing implant applications, making them suitable primarily for dental abutments, cranial plates, and other non-structural devices. Standard Ti-6Al-4V Grade 5 alloy shares the same basic composition as ASTM F136 but allows higher interstitial element contents, particularly oxygen up to 0.20 percent, resulting in increased strength but reduced ductility and fracture toughness that make it unsuitable for implant applications despite adequate performance for aerospace components. ASTM F1295 (Ti-6Al-7Nb) was developed as an alternative that replaces vanadium with niobium to address concerns about potential vanadium cytotoxicity, offering similar mechanical properties with demonstrated biocompatibility, though the more established track record and wider availability make ASTM F136 the preferred choice for most applications. Ti-6Al-4V Ruthenium (Grade 23) contains small ruthenium additions that enhance corrosion resistance in reducing acid environments but at significantly higher material cost, limiting use to specialized chemical processing applications. Beta titanium alloys including Ti-15Mo, Ti-12Mo-6Zr-2Fe, and Ti-35Nb-7Zr-5Ta offer lower elastic modulus values closer to human bone, theoretically reducing stress shielding, but lack the extensive clinical history and regulatory approval pathway established for ASTM F136 material. For most medical implant and high-performance aerospace applications, the combination of proven biocompatibility, excellent mechanical properties, worldwide availability, and regulatory acceptance makes ASTM F136 Titanium Sheet the optimal material choice.
Selecting the Right ASTM F136 Titanium Sheet Supplier
Choosing a qualified supplier for ASTM F136 Titanium Sheet requires careful evaluation of multiple factors that ensure material quality, regulatory compliance, and reliable delivery performance. Manufacturing capability stands as the primary consideration, with preference given to suppliers operating advanced production facilities equipped with vacuum melting furnaces, high-capacity forging presses, precision rolling mills, and computer-controlled heat treatment systems capable of producing material that consistently meets specification requirements. Quality management system certifications including ISO 13485 for medical devices and AS/EN 9100 for aerospace applications demonstrate organizational commitment to quality and regulatory compliance essential for critical applications. Material traceability systems that track each heat from raw material through finished product provide essential documentation for regulatory submissions and failure investigations. Testing capabilities including in-house chemical analysis, mechanical testing, and metallographic examination enable suppliers to verify compliance before shipping, while relationships with accredited third-party testing laboratories support independent verification when required. Technical support resources including metallurgists, application engineers, and quality specialists who can provide material selection guidance, process optimization recommendations, and troubleshooting assistance add significant value beyond simple product supply. Inventory depth and breadth indicate supplier capacity to fulfill immediate requirements without long lead times while offering multiple thickness options, surface finishes, and lot sizes. Custom fabrication services including precision cutting, forming, and machining allow suppliers to deliver components ready for assembly rather than requiring customers to perform additional processing. Competitive pricing structure balanced with consistent quality ensures cost-effective sourcing without sacrificing performance or reliability. Delivery reliability backed by efficient logistics networks and flexible shipping options including air freight, ocean transport, and express courier services accommodates project schedules and reduces inventory carrying costs.
Conclusion
ASTM F136 Titanium Sheet stands as the definitive material choice for surgical implants and critical aerospace applications, combining superior biocompatibility, exceptional mechanical strength, and proven reliability. This comprehensive guide has explored the alloy's precise composition, manufacturing processes, diverse applications, and essential quality requirements.
Cooperate with XI'AN MICRO-A Titanium Metals Co.,Ltd.
XI'AN MICRO-A Titanium Metals Co.,Ltd., established in 2017 and headquartered in Baoji, China's titanium capital, stands ready to serve as your trusted China ASTM F136 Titanium Sheet factory, China ASTM F136 Titanium Sheet supplier, and China ASTM F136 Titanium Sheet manufacturer. We offer competitive ASTM F136 Titanium Sheet wholesale pricing and maintain extensive inventory of ASTM F136 Titanium Sheet for sale at the best ASTM F136 Titanium Sheet price in the market. Our ISO 13485:2017 medical and AS/EN 9100 aerospace certifications, combined with strategic partnerships with Baoti Group, ensure you receive the best ASTM F136 Titanium Sheet backed by comprehensive quality documentation. Our advanced production facilities including 50 MN hammering presses and 2500-ton forging equipment, coupled with digital machining centers, enable us to deliver customized solutions through private customization, non-standard parts manufacturing, and drawing processing services. Contact our expert team today at mayucheng188@aliyun.com to discuss your specific requirements and discover how our original factory advantages, advanced equipment, rigorous quality assurance, customized service capabilities, and fast delivery network can support your project success.
References
1 .ASTM International. Standard Specification for Wrought Titanium-6Aluminum-4Vanadium ELI (Extra Low Interstitial) Alloy for Surgical Implant Applications (ASTM F136). ASTM Committee F04 on Medical and Surgical Materials and Devices.
2. Niinomi M, Nakai M, Hieda J. Development of new metallic alloys for biomedical applications. Acta Biomaterialia. 2012;8(11):3888-3903.
3. Long M, Rack HJ. Titanium alloys in total joint replacement—a materials science perspective. Biomaterials. 1998;19(18):1621-1639.
4. Geetha M, Singh AK, Asokamani R, Gogia AK. Ti based biomaterials, the ultimate choice for orthopaedic implants – A review. Progress in Materials Science. 2009;54(3):397-425.
5. Peters M, Kumpfert J, Ward CH, Leyens C. Titanium alloys for aerospace applications. Advanced Engineering Materials. 2003;5(6):419-427.
