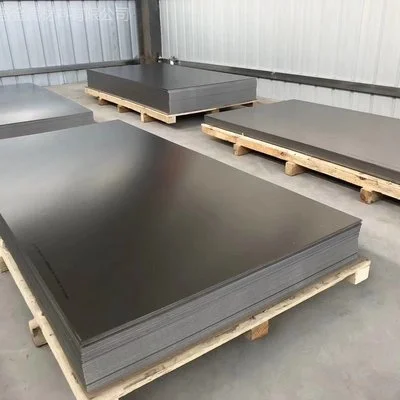

OEM Guide — ASTM F136 Titanium Sheet for Surgical and Industrial Parts
When sourcing materials for surgical implants or precision aerospace components, one critical challenge emerges: finding a titanium alloy that guarantees both exceptional biocompatibility and structural integrity under extreme conditions. ASTM F136 Titanium Sheet, an extra-low interstitial grade Ti-6Al-4V ELI alloy, addresses this exact pain point by delivering unmatched purity standards, superior corrosion resistance, and proven performance in the most demanding medical and industrial applications. This comprehensive OEM guide reveals everything manufacturers need to know about specifying, sourcing, and implementing ASTM F136 Titanium Sheet for critical surgical devices and high-performance industrial parts where material failure is simply not an option.
Understanding ASTM F136 Titanium Sheet Specifications and Standards
ASTM F136 Titanium Sheet represents the gold standard for medical-grade titanium alloys, specifically engineered as an extra-low interstitial variant of the widely recognized Ti-6Al-4V composition. The designation "ELI" signifies reduced oxygen, nitrogen, and iron content compared to standard aerospace-grade Ti-6Al-4V, resulting in enhanced ductility and fracture toughness that proves essential for long-term implantable devices. This carefully controlled chemistry ensures the material exhibits a minimum tensile strength of 860 MPa, yield strength exceeding 795 MPa, and elongation properties of at least 10 percent, creating an optimal balance between mechanical performance and biological safety. The cold rolling manufacturing process employed by specialized facilities produces sheets with exceptional surface quality and dimensional consistency, ranging from 0.5mm to 50mm in thickness and up to 1500mm in width, accommodating diverse design requirements across surgical and industrial applications.
Key Material Properties of Ti-6Al-4V ELI Alloy
The exceptional performance characteristics of ASTM F136 Titanium Sheet stem from its precisely balanced alloy composition, containing approximately 6% aluminum and 4% vanadium as primary alloying elements within a titanium matrix. The aluminum component enhances strength and reduces density while maintaining excellent corrosion resistance, whereas vanadium stabilizes the beta phase structure, improving formability and weldability during fabrication processes. The extra-low interstitial designation mandates strict limitations on oxygen content below 0.13%, nitrogen under 0.05%, and iron less than 0.25%, significantly differentiating this medical-grade material from commercial aerospace variants. These controlled interstitial levels directly translate to superior fatigue resistance and crack propagation resistance, critical factors when designing load-bearing implants such as hip stems, spinal fusion devices, and dental implant abutments that must endure millions of stress cycles throughout their service life. The annealed heat treatment condition specified for ASTM F136 Titanium Sheet optimizes the microstructure for maximum ductility and stress corrosion cracking resistance, ensuring predictable mechanical behavior during complex forming operations and long-term in-vivo performance.
Certification Requirements for Medical and Aerospace Applications
Manufacturers supplying ASTM F136 Titanium Sheet for surgical and aerospace applications must navigate rigorous certification landscapes that demand comprehensive quality documentation and traceability protocols. The ISO 13485:2017 medical device quality management system certification specifically addresses the unique requirements of designing and producing medical devices, ensuring systematic control over material handling, process validation, and risk management procedures throughout the supply chain. Complementing this medical-specific standard, AS/EN 9100 aerospace quality management certification demonstrates capability in meeting the stringent requirements of aviation and defense industries where component failure could result in catastrophic consequences. Each batch of ASTM F136 Titanium Sheet should be accompanied by detailed material test reports documenting chemical composition via spectrometry analysis, mechanical properties through standardized tensile testing, and grain size verification using metallographic examination. Full material traceability extending back to the original titanium sponge source enables rapid response to any quality concerns and satisfies regulatory requirements from organizations such as the FDA for medical devices and FAA for aerospace components, providing customers with confidence in material authenticity and compliance.
Critical Applications for ASTM F136 Titanium Sheet in Surgical Devices
The biocompatibility and mechanical properties of ASTM F136 Titanium Sheet have established it as the material of choice for a comprehensive range of implantable medical devices where direct contact with human tissue and body fluids occurs over extended periods. Orthopedic implants including hip replacement femoral stems, acetabular cups, knee joint components, and trauma fixation plates leverage the material's excellent osseointegration characteristics, allowing bone tissue to grow directly onto the titanium surface and create stable, long-lasting fixation. The superior corrosion resistance of this Ti-6Al-4V ELI alloy ensures that implants maintain their structural integrity and surface characteristics despite continuous exposure to the chloride-rich, protein-laden environment of bodily fluids, preventing the release of metallic ions that could trigger adverse tissue reactions or systemic toxicity. Spinal fusion cages, pedicle screws, and interbody spacers fabricated from ASTM F136 Titanium Sheet benefit from the material's radiolucency compared to cobalt-chromium alternatives, enabling clearer post-operative imaging assessment of fusion progress and implant positioning using standard X-ray and CT scanning modalities.
Dental and Maxillofacial Surgical Applications
The dental industry has increasingly adopted ASTM F136 Titanium Sheet for manufacturing implant abutments, custom prosthetic frameworks, and reconstructive plates that restore both function and aesthetics following tooth loss or maxillofacial trauma. Dental implant components manufactured from this medical-grade titanium alloy demonstrate exceptional long-term survival rates exceeding 95% over ten-year periods, attributed to the material's ability to achieve direct bone-to-implant contact without intervening fibrous tissue formation. The formability characteristics of ASTM F136 Titanium Sheet enable fabrication of patient-specific reconstruction plates for mandibular and maxillary defects, where complex three-dimensional geometries must precisely match anatomical contours derived from CT imaging data. Custom abutments machined from this titanium sheet material allow dental technicians to optimize emergence profiles and soft tissue support around implant-supported crowns, improving both functional outcomes and aesthetic results in the anterior smile zone where appearance proves critically important to patient satisfaction.
Surgical Instrument Manufacturing Requirements
Beyond implantable devices, ASTM F136 Titanium Sheet serves as an excellent material for manufacturing reusable surgical instruments that must withstand repeated sterilization cycles while maintaining dimensional stability and corrosion resistance. Microsurgical instruments including needle holders, forceps, and scissors fabricated from this titanium alloy offer significant weight reduction compared to traditional stainless steel alternatives, reducing surgeon hand fatigue during lengthy procedures requiring precise manipulation and fine motor control. The material's excellent strength-to-weight ratio enables creation of instruments with slender profiles and delicate tip geometries while maintaining sufficient structural rigidity to transmit forces effectively during tissue manipulation and suture placement. Repeated exposure to steam sterilization at 134°C, chemical disinfectants, and ultrasonic cleaning processes does not degrade the surface finish or mechanical properties of ASTM F136 Titanium Sheet components, ensuring consistent instrument performance throughout their extended service life in demanding operating room environments.
Industrial and Aerospace Applications Beyond Medical Devices
While medical applications represent the primary market for ASTM F136 Titanium Sheet, the material's exceptional properties have driven adoption across high-performance industrial sectors where reliability and weight reduction deliver significant operational advantages. Aerospace manufacturers specify this ELI-grade titanium alloy for critical structural components, engine parts, and fasteners operating in extreme temperature environments where material failure could compromise flight safety. The reduced interstitial content that makes ASTM F136 suitable for medical implants also enhances low-temperature toughness and damage tolerance characteristics valued in aerospace applications, particularly for components experiencing thermal cycling between cryogenic fuel temperatures and elevated operational conditions. Aircraft hydraulic system components, landing gear bushings, and flight control linkages fabricated from ASTM F136 Titanium Sheet benefit from the material's outstanding fatigue resistance and stress corrosion cracking immunity in marine-influenced coastal operating environments where salt spray exposure accelerates degradation of less resistant alloys.
Marine and Chemical Processing Equipment
The marine industry increasingly specifies ASTM F136 Titanium Sheet for fabricating propeller shafts, valve stems, pump impellers, and heat exchanger components operating in aggressive seawater environments where conventional materials suffer rapid corrosion degradation. The passive titanium dioxide film that spontaneously forms on exposed surfaces provides exceptional resistance to chloride-induced pitting and crevice corrosion, eliminating the need for protective coatings or cathodic protection systems required by stainless steel alternatives. Chemical processing facilities handling corrosive media including strong acids, oxidizing agents, and chlorine compounds utilize ASTM F136 Titanium Sheet for constructing reaction vessels, agitator blades, and piping systems where contamination from corrosion products would compromise product purity or process efficiency. The material maintains its corrosion resistance across a broad pH range from highly acidic to strongly alkaline conditions, offering operational flexibility and extended service life that justify the premium material cost through reduced maintenance requirements and eliminated downtime for equipment replacement.
Manufacturing Capabilities and Quality Assurance Processes
Producing ASTM F136 Titanium Sheet that consistently meets stringent medical and aerospace specifications requires sophisticated manufacturing equipment and rigorous quality control protocols implemented throughout the entire production sequence. The process begins with vacuum arc remelting of titanium sponge combined with precise quantities of aluminum and vanadium master alloys, creating ingots with homogeneous composition and minimal contamination from interstitial elements. Multiple remelting cycles in controlled atmosphere furnaces ensure uniform distribution of alloying elements while maintaining the extra-low oxygen, nitrogen, and iron levels that differentiate medical-grade material from commercial variants. Following ingot production, 50 MN hydraulic hammering presses forge the material into slabs and billets, breaking down the cast structure and developing the refined grain structure necessary for optimal mechanical properties. The subsequent hot rolling and cold rolling sequences progressively reduce thickness while maintaining tight dimensional tolerances and achieving the desired surface finish characteristics ranging from mill finish to polished conditions specified for different applications.
Advanced Testing and Inspection Procedures
Every batch of ASTM F136 Titanium Sheet undergoes comprehensive testing protocols verifying compliance with chemical composition limits, mechanical property requirements, and microstructural characteristics defined in the ASTM F136 specification. Optical emission spectrometry or X-ray fluorescence analysis confirms that aluminum, vanadium, and interstitial element contents fall within acceptable ranges, with particular attention to oxygen levels that critically influence ductility and fatigue performance. Tensile testing machines equipped with extensometers measure ultimate tensile strength, yield strength, and elongation values from test specimens extracted from production sheets, ensuring material meets minimum strength requirements while demonstrating adequate ductility for forming operations. Non-destructive testing methods including ultrasonic inspection detect internal flaws or inclusions that could serve as crack initiation sites during service, while surface inspection using visual examination, dye penetrant testing, or fluorescent inspection identifies surface breaking defects requiring material rejection or rework. Metallographic examination of polished and etched cross-sections reveals grain size distribution and phase balance, confirming that heat treatment processes have achieved the intended microstructure for optimal property combinations.
Customization Options and OEM Partnership Benefits
Working with an experienced ASTM F136 Titanium Sheet supplier offering comprehensive customization capabilities enables OEM manufacturers to optimize material specifications, surface treatments, and dimensional characteristics for specific surgical device or industrial component designs. Custom thickness tolerances tighter than standard mill specifications reduce downstream machining operations and material waste, particularly valuable when fabricating thin-walled tubular structures or precision-formed components with critical dimensional features. Surface finish modifications including electropolishing, passivation treatments, or bioactive coatings can be applied prior to shipment, eliminating processing steps from customer production sequences and ensuring consistent surface characteristics across production batches. Technical consultation services help design engineers select appropriate material tempers, evaluate forming operation feasibility, and optimize heat treatment protocols for components requiring post-fabrication property modification through solution treating and aging sequences.
Sample Evaluation and Prototype Development Support
Reputable ASTM F136 Titanium Sheet manufacturers provide sample materials and prototype development support enabling thorough evaluation of material performance before committing to full production volumes. Small quantity samples allow biocompatibility testing through standardized cytotoxicity assays, sensitization studies, and implantation trials required for regulatory submissions to agencies overseeing medical device marketing authorization. Prototype quantities sufficient for design verification testing, manufacturing process development, and initial validation activities typically ship within 25 to 30 business days, accompanied by complete material certifications documenting compliance with ASTM F136 requirements and relevant quality management system standards. This evaluation phase proves particularly valuable when transitioning from alternative materials or qualifying secondary supply sources, allowing thorough assessment of forming characteristics, weldability, and finished component performance before scaling to production volumes requiring significant capital investment in tooling and process equipment.
Conclusion
ASTM F136 Titanium Sheet delivers unmatched biocompatibility, strength, and corrosion resistance essential for surgical implants and high-performance industrial components where material reliability proves absolutely critical to application success and long-term performance.
Cooperate with XI'AN MICRO-A Titanium Metals Co.,Ltd.
XI'AN MICRO-A Titanium Metals Co.,Ltd., established in 2017 and headquartered in Baoji, China's renowned titanium city, stands as your trusted China ASTM F136 Titanium Sheet factory, China ASTM F136 Titanium Sheet supplier, and China ASTM F136 Titanium Sheet manufacturer offering comprehensive titanium solutions. As a leading China ASTM F136 Titanium Sheet wholesale provider with ASTM F136 Titanium Sheet for sale at competitive ASTM F136 Titanium Sheet price points, we deliver the best ASTM F136 Titanium Sheet backed by ISO 13485:2017 medical management system and AS/EN 9100 aerospace quality certifications. Our strategic partnership with Baoti Group ensures stable material sourcing, while our advanced 2500-ton forging press, precision cold rolling lines, and digital machining centers guarantee exceptional product quality. We offer original factory advantages including customized services for drawings, samples, and technical requirements, supported by rigorous quality control through spectrometry analysis, mechanical testing, and non-destructive inspection methods. With fast delivery via comprehensive logistics networks and dedicated after-sales technical consultation, we provide tailored solutions for medical devices, aerospace components, and industrial applications. Contact us today at mayucheng188@aliyun.com to discuss your specific ASTM F136 Titanium Sheet requirements and discover how our expertise transforms your manufacturing challenges into competitive advantages through private customization, non-standard parts fabrication, and precision drawing processing services.
References
1. "Standard Specification for Wrought Titanium-6Aluminum-4Vanadium ELI (Extra Low Interstitial) Alloy for Surgical Implant Applications" - ASTM International Committee F04 on Medical and Surgical Materials and Devices
2. "Titanium in Medicine: Material Science, Surface Science, Engineering, Biological Responses and Medical Applications" - Brunette, Donald M., Tengvall, Pentti, Textor, Marcus, and Thomsen, Peter
3. "Biocompatibility and Osseointegration of Titanium Alloys for Medical Implants: A Comprehensive Review" - Journal of Materials Science: Materials in Medicine Editorial Board
4. "Mechanical Properties and Microstructural Characteristics of Extra Low Interstitial Ti-6Al-4V Alloy for Biomedical Applications" - Materials Science and Engineering: C Journal, Elsevier
5. "Corrosion Resistance of Titanium Alloys in Physiological Solutions and Their Applications in Medical Devices" - Corrosion Science International Research Board
